To fit

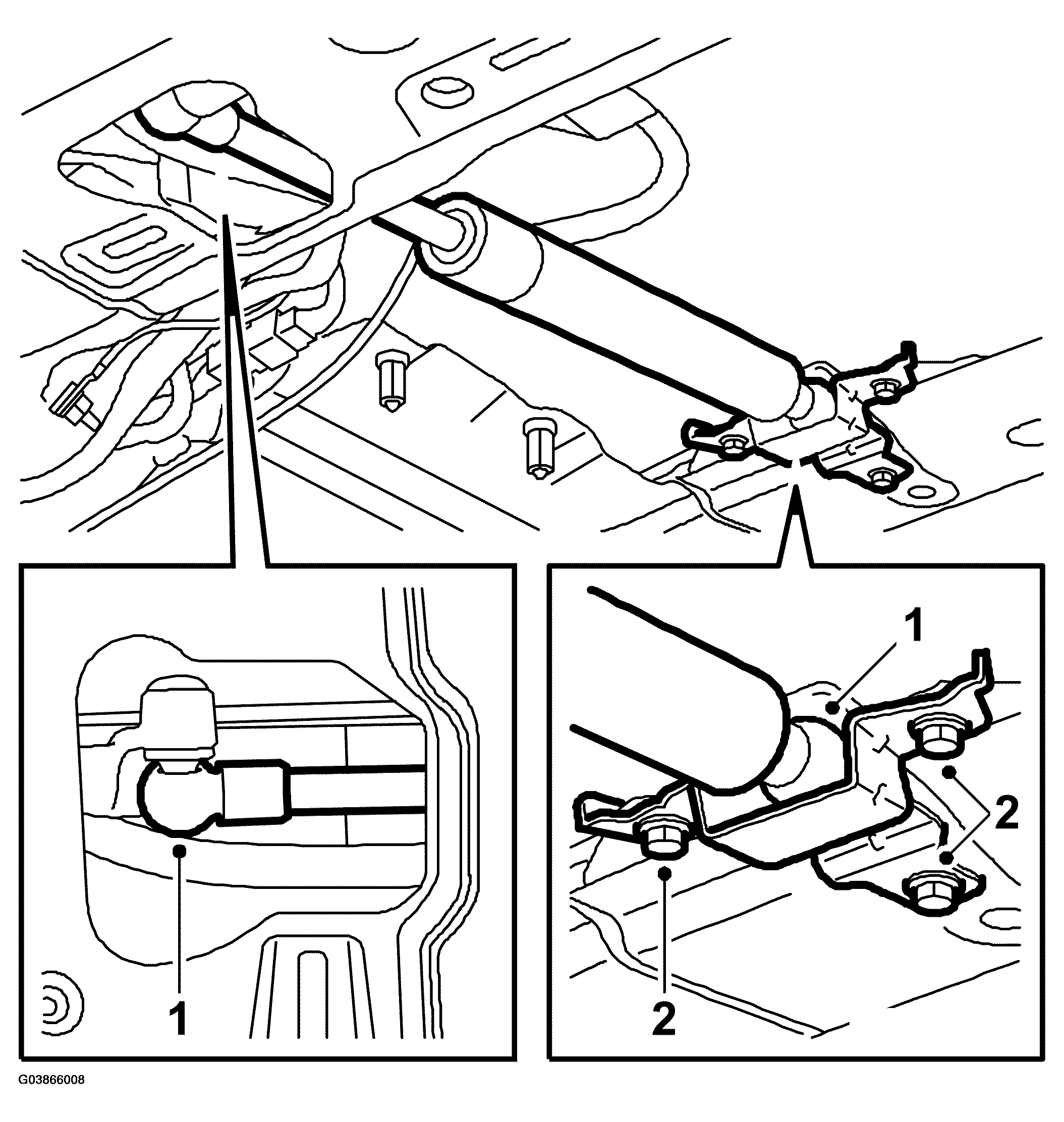

Fig 1: Illustration For Step 1-2
G03866008Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Lubricate the gas spring ball sockets with Gleitmo 805 (part no. 30 06 442) and press the gas spring into both ball joints.
  2. Fit the metal clip over the ball joint.
  3. Fit the cargo net holders by pressing on the clips and fitting the clips in the roof.

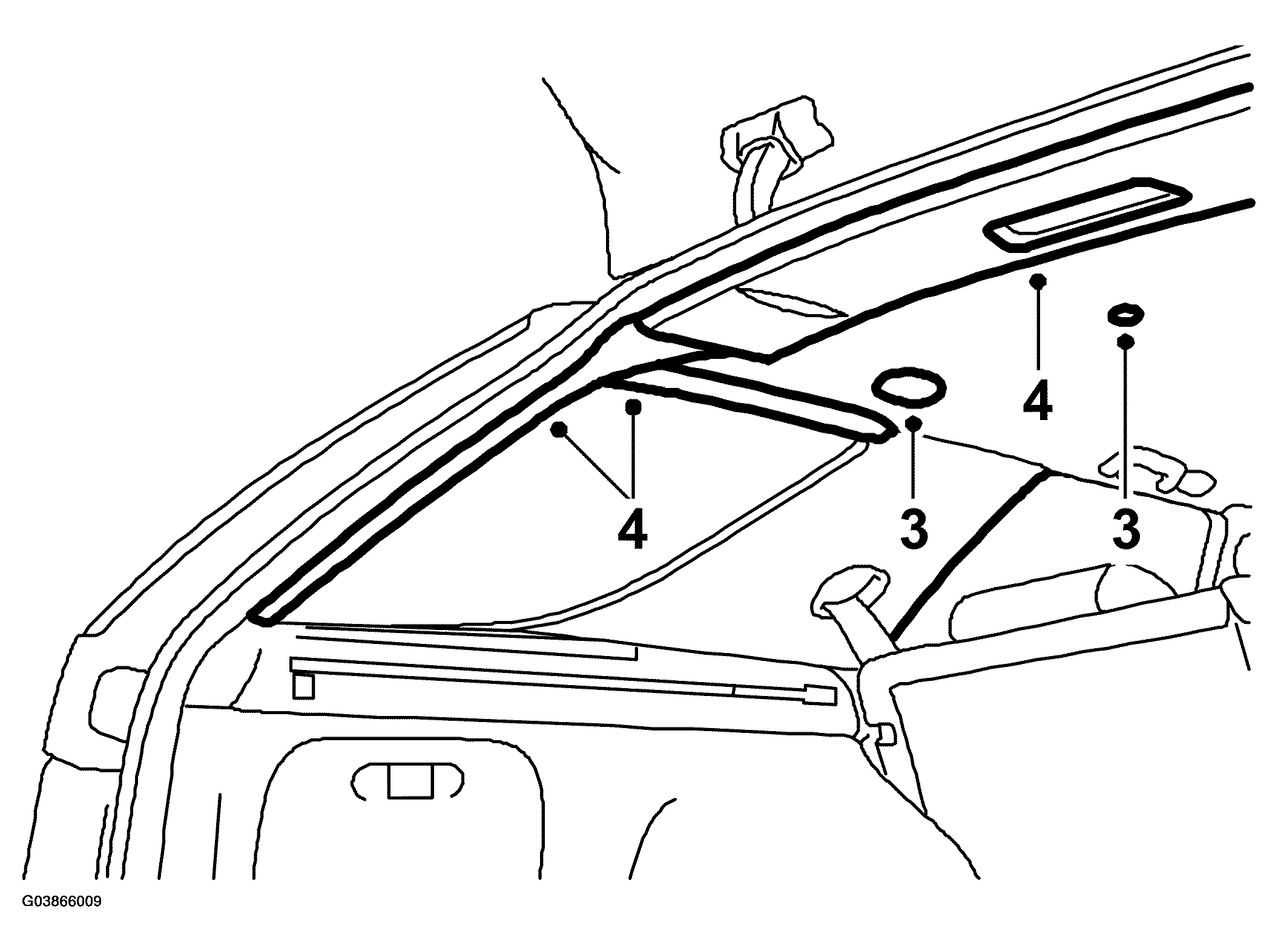

    Fig 2: Illustration For Step 3-4
    G03866009Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the roof moulding and D-pillar trim.
