Adjusting the tailgate forwards, backwards and sideways

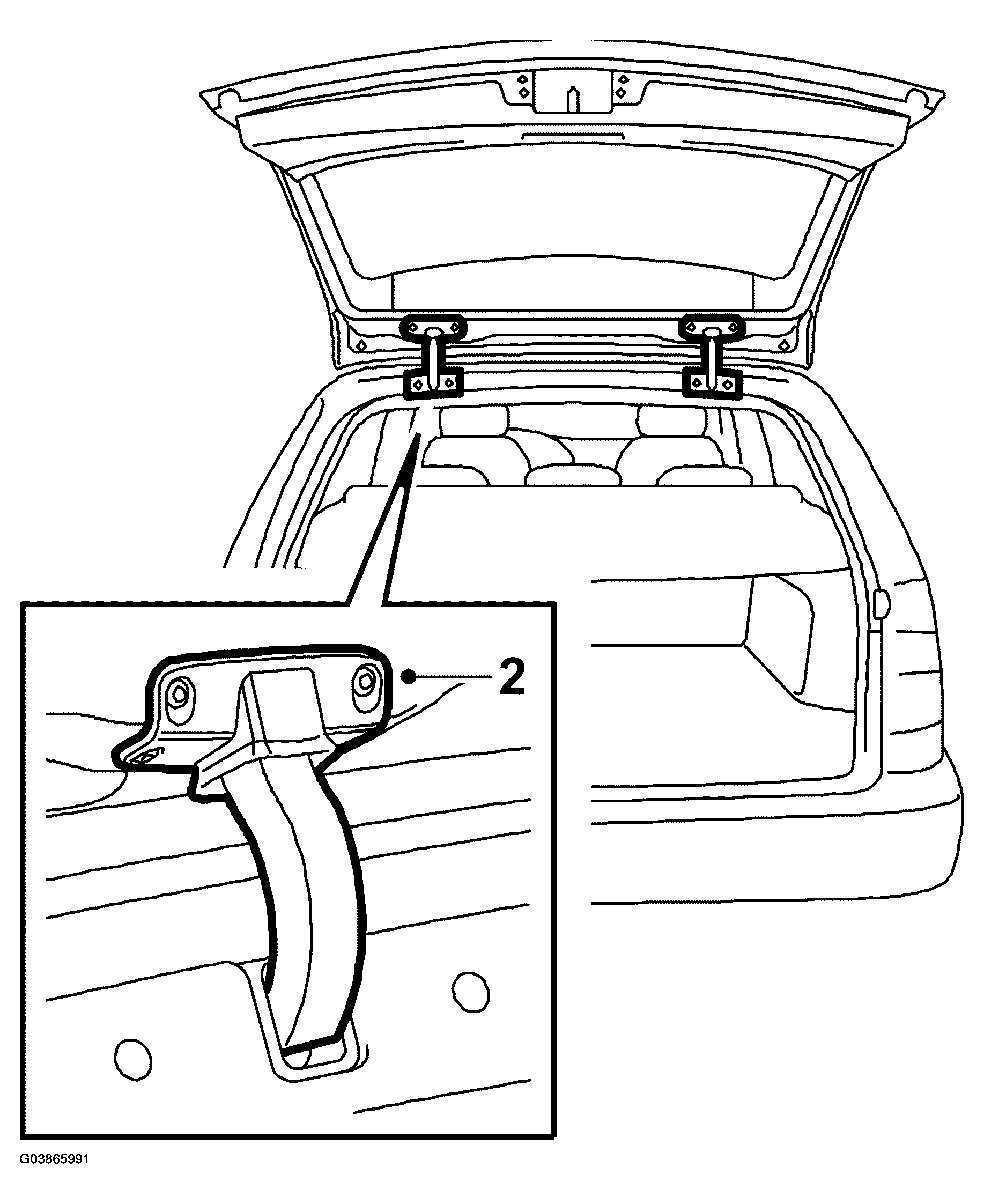

Fig 1: Illustration For Step 2

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Open the tailgate.
2. Remove the hinge seals from the tailgate.
3. Unscrew the tailgate from the hinges.

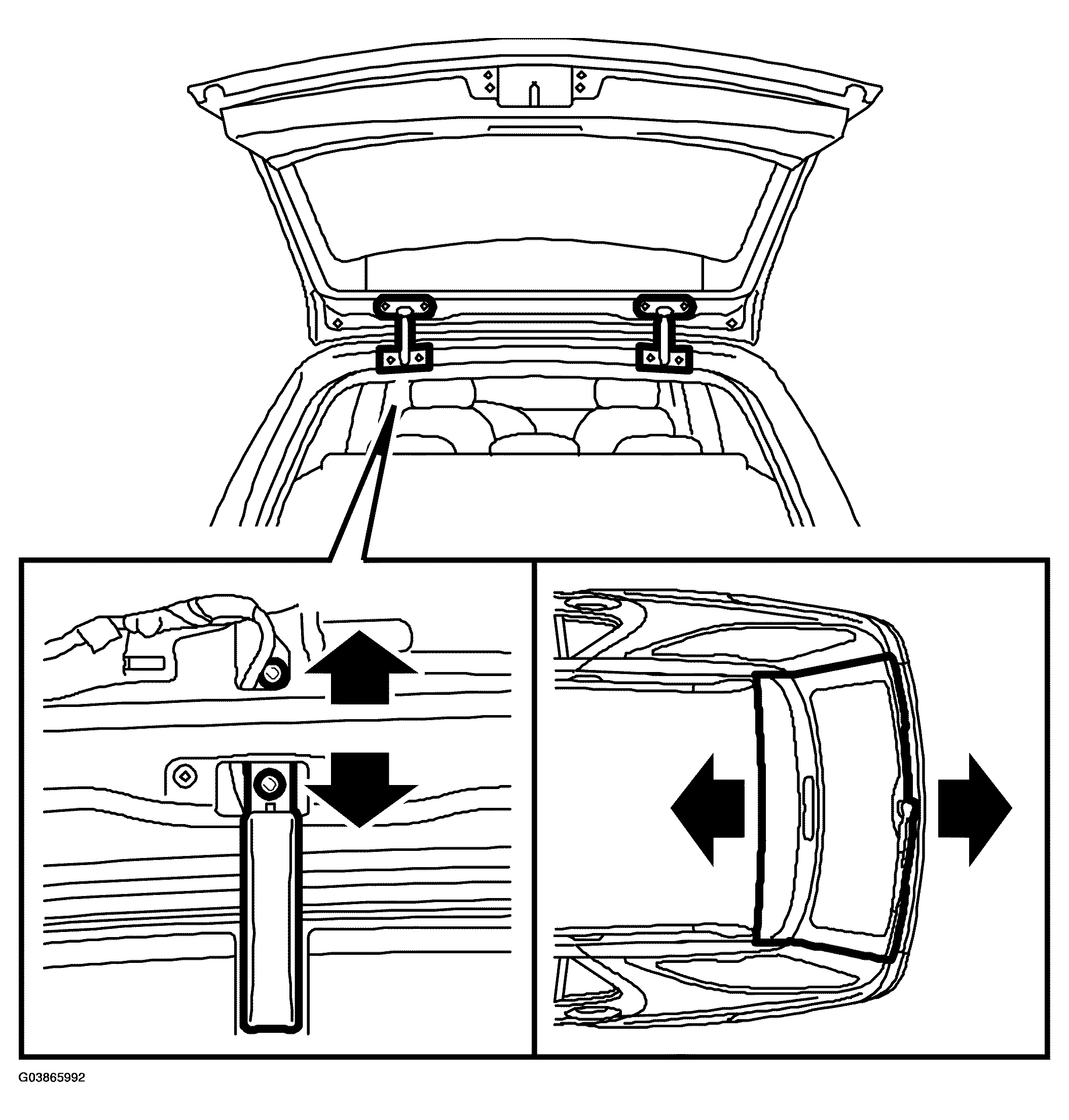

   Fig 2: Adjusting Tailgate Up And Down

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
4. Adjust up (backwards) or down (forwards).
5. Adjust sideways.

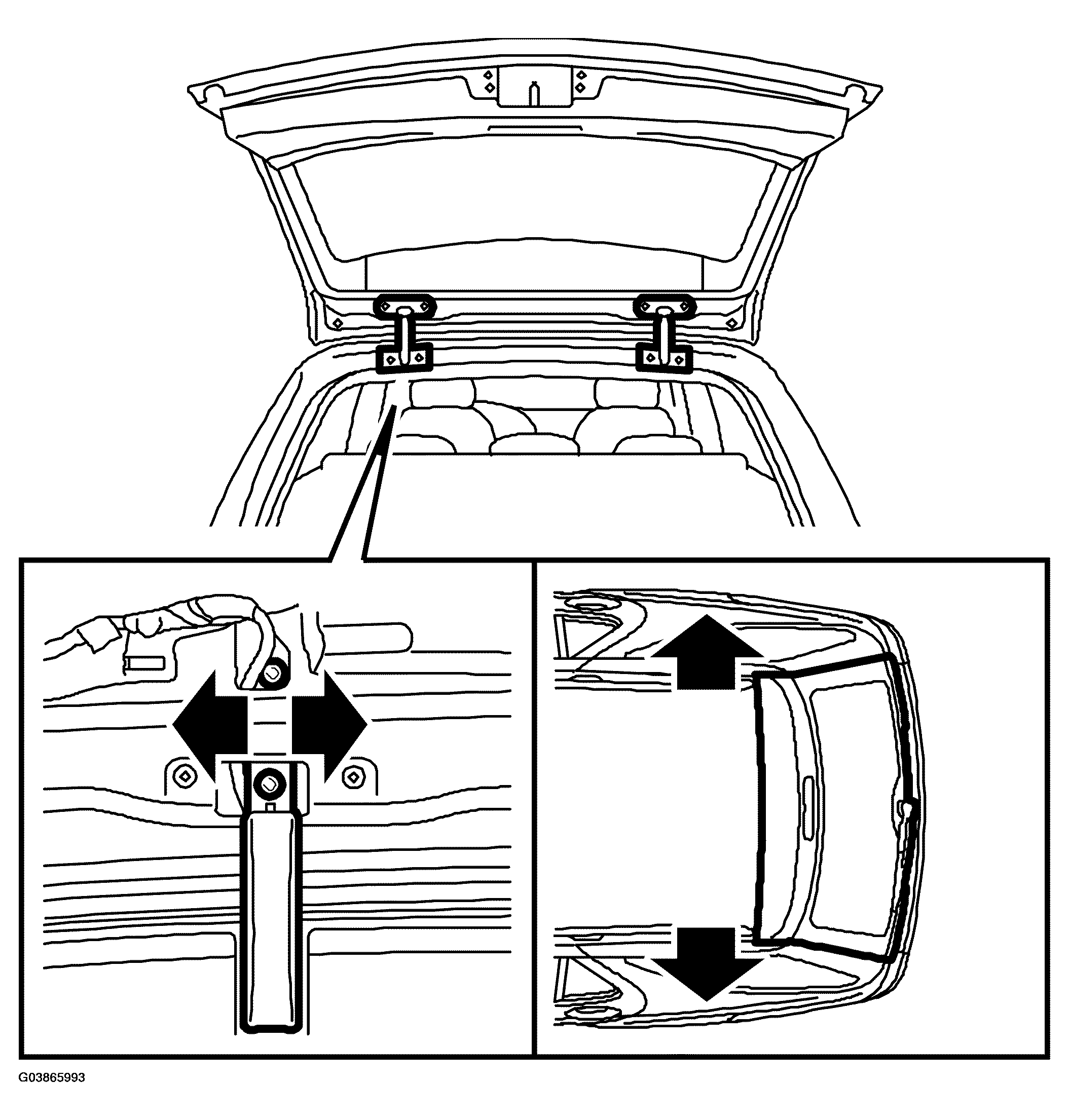

   Fig 3: Adjusting Tailgate Sideways

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
6. Tighten the screws.
7. Fit the hinge seals.
