To remove

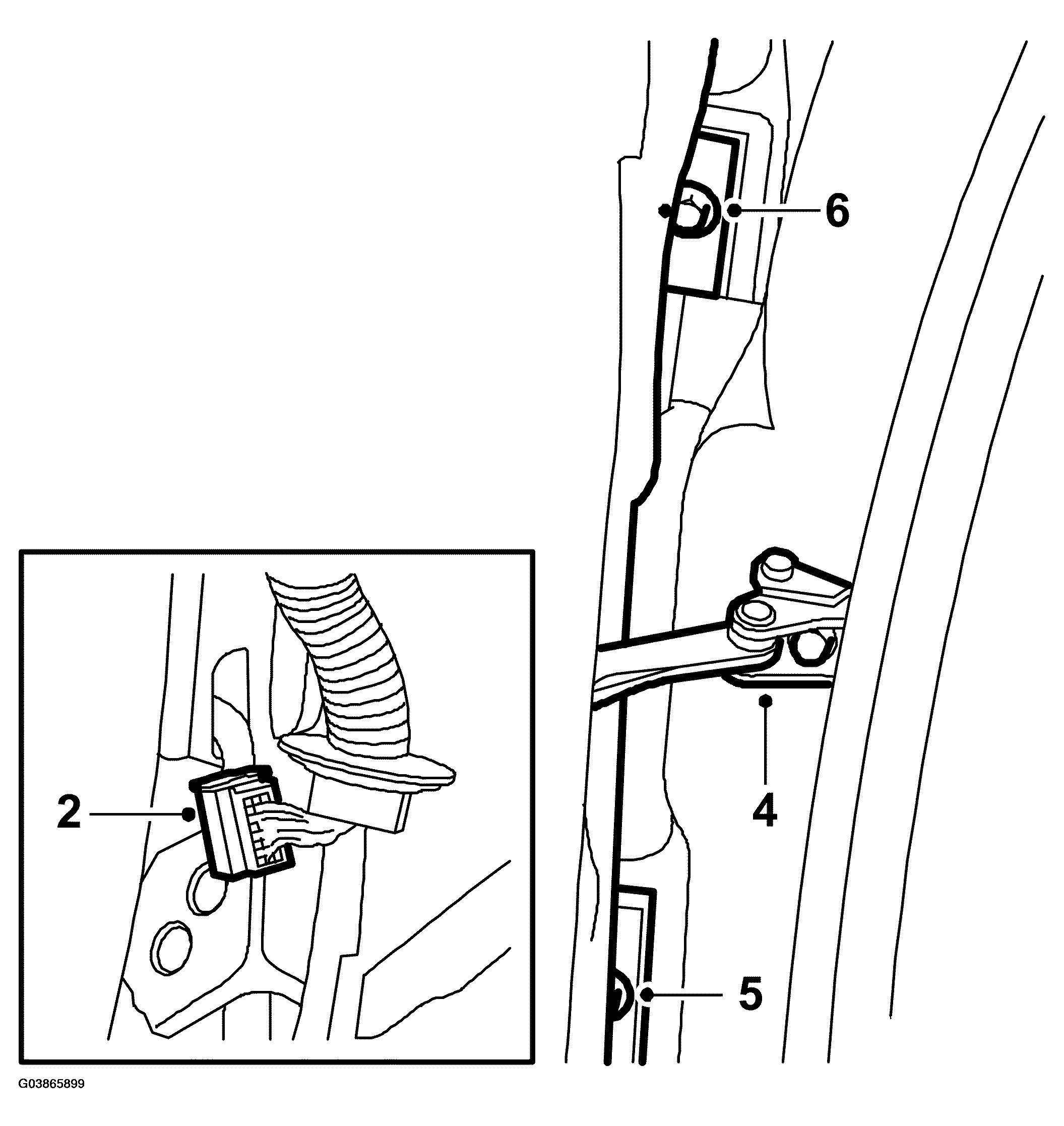

Fig 1: Illustration For Step 2, 4-6
G03865899Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Open the front door so that the grommet for the rear door wiring harness in the B-pillar is accessible.
  2. Remove the rubber grommet and unplug the connector.
  3. Open the rear door.
  4. Unscrew the door stop.
  5. Unscrew the nut on the lower hinge mounting first.
  6. Unscrew the nut from the upper hinge mounting while supporting the door.
  7. Carefully lift off the door from the hinge mountings.
