To fit

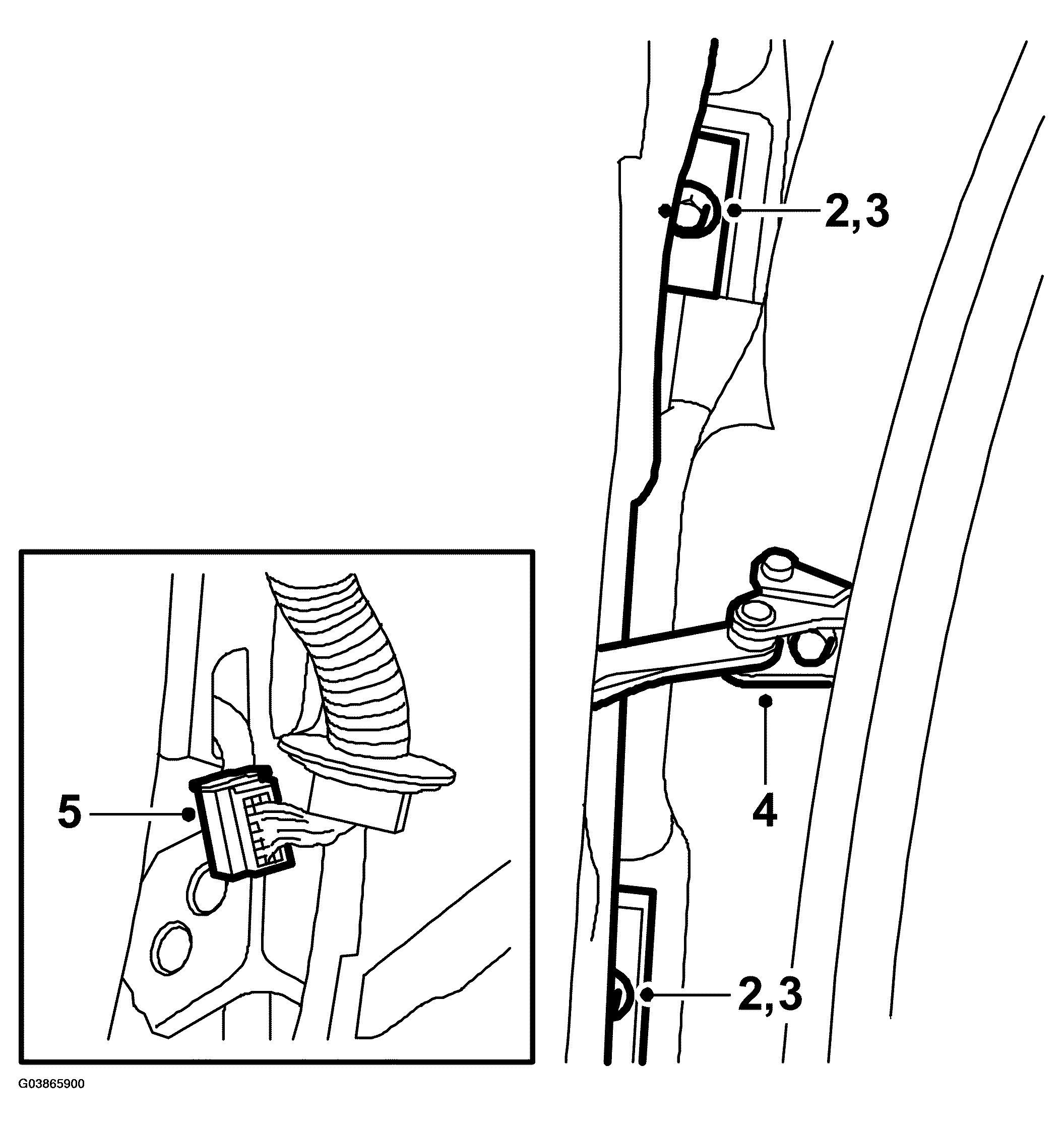

Fig 1: Illustration For Step 2-5
G03865900Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Lift the door onto the hinge mountings.
  2. Screw on the nuts.
  3. Check the fit between the rear door and the wing and tighten the nuts.
    NOTE: To obtain the correct fit between the door and the wing, it may be necessary to slightly lift the rear of the door while tightening the nuts.
  4. Screw on the door stop.
  5. Plug in the connector and fit the rubber grommet.
