To remove

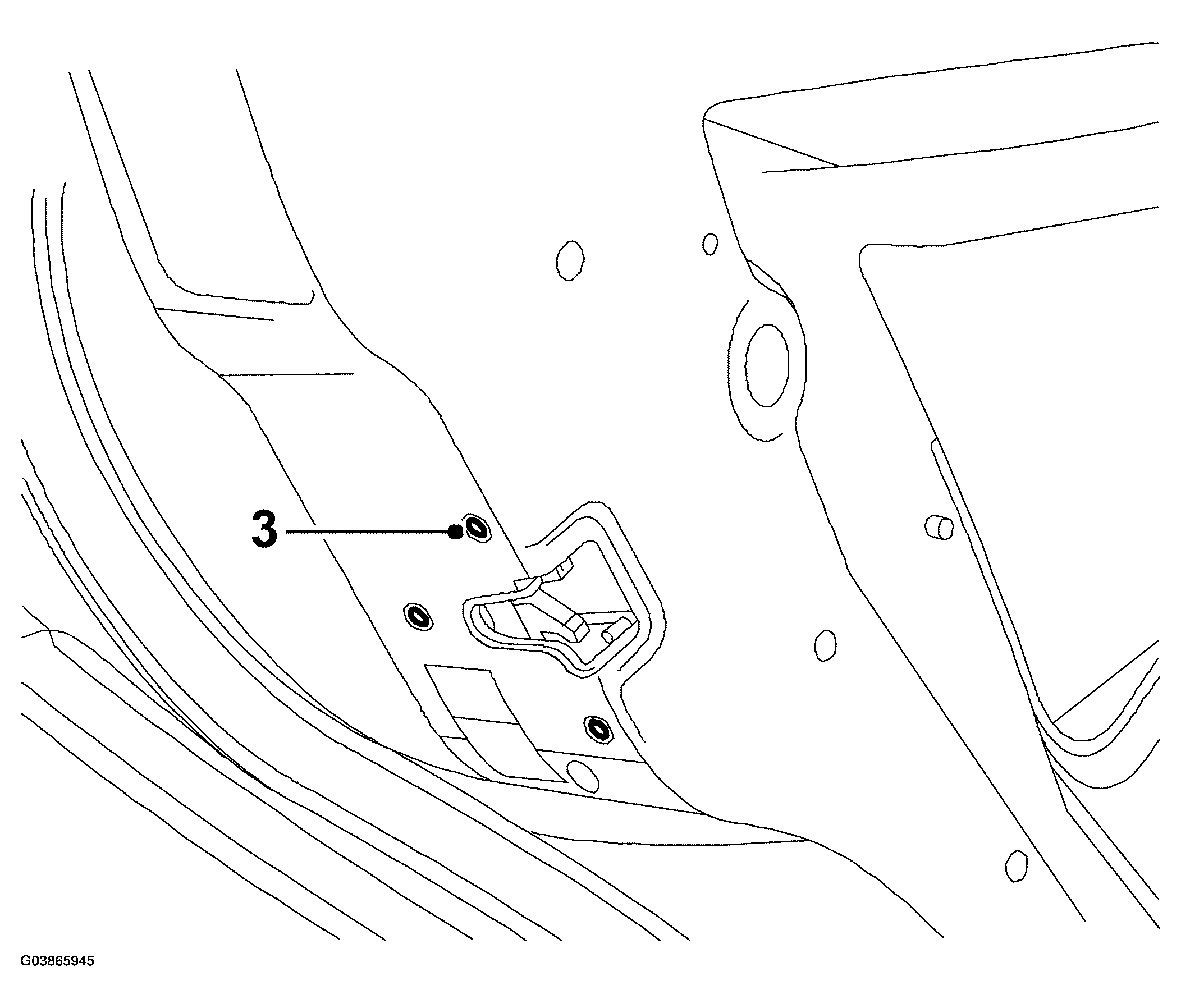

Fig 1: Illustration For Step 3
G03865945Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the door trim.
  2. Remove the water separator using 82 93 474 REMOVAL TOOL .
  3. Remove the three screws holding the lock unit.
  4. Detach the wire to the interior door handle.
  5. Pull down the lock unit slightly to detach the pushrod.

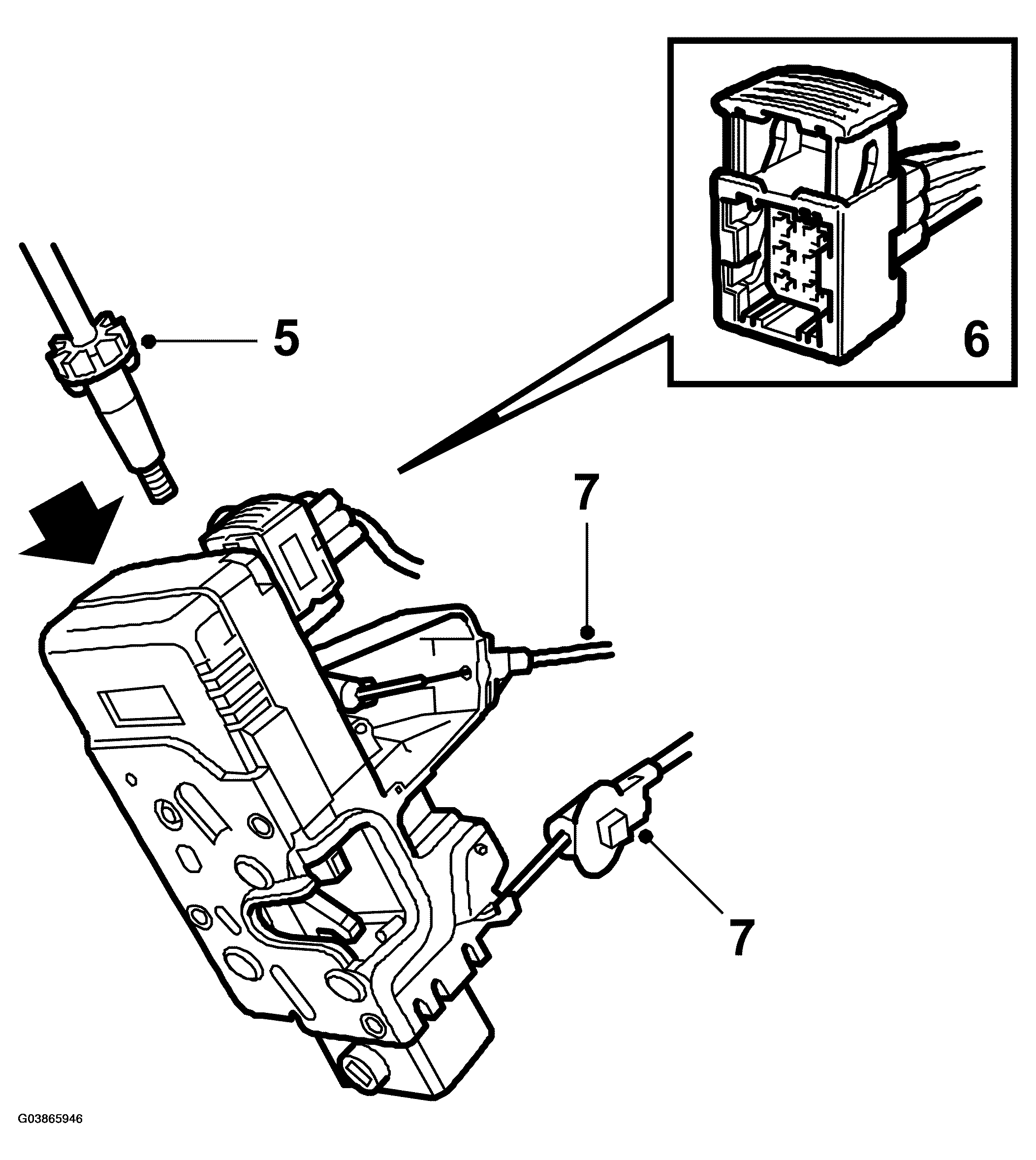

    Fig 2: Illustration For Step 5-7
    G03865946Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Lift out the lock unit and unplug the connector.
  7. Detach the wires for the door handle and locking rod from the lock unit.
