To fit

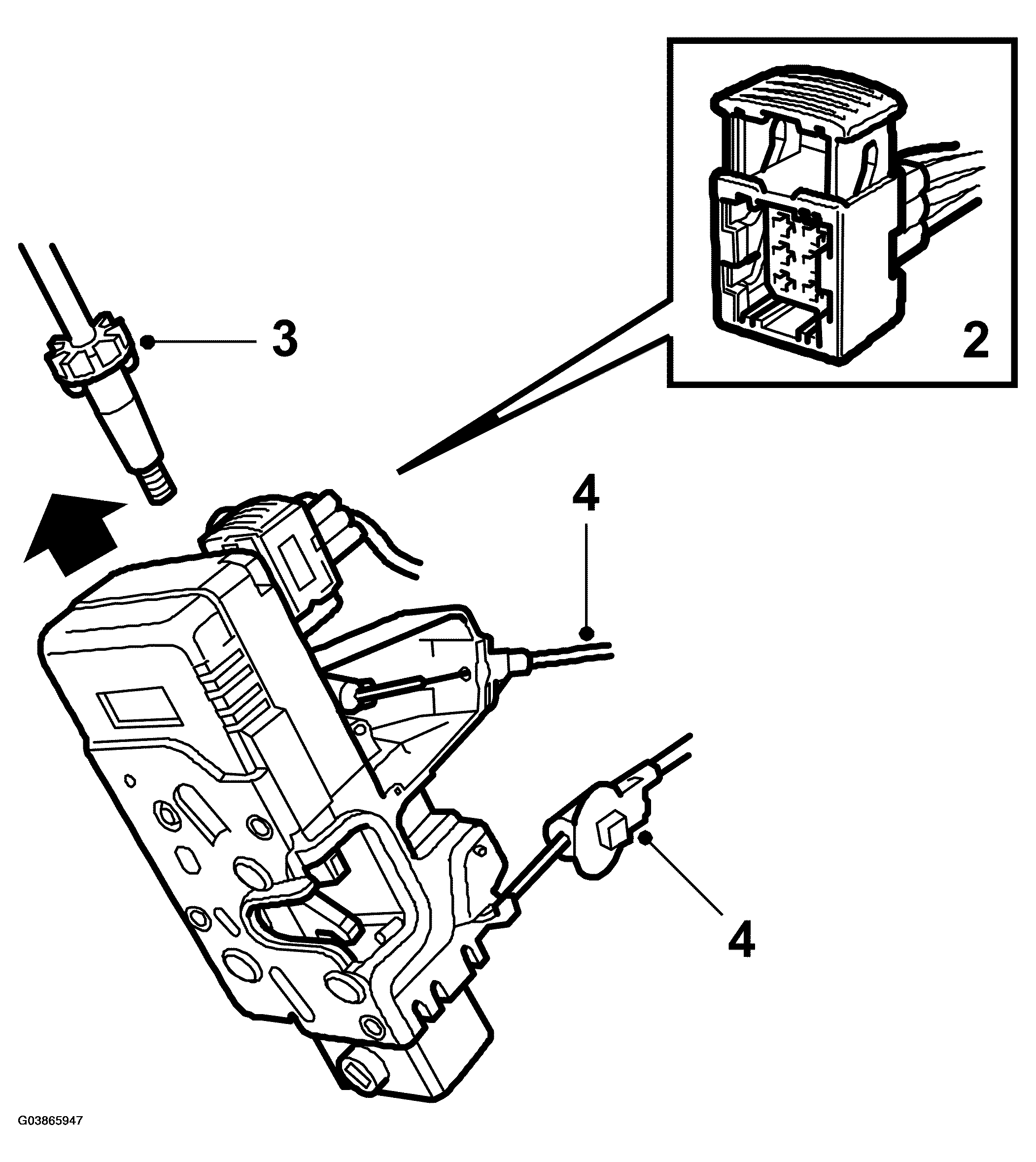

Fig 1: Illustration For Step 2-4
G03865947Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Attach the wire for the door handle and the locking rod to the lock unit
  2. Plug in the connector.
  3. Fit the lock unit in place and guide the pushrod between the outer door handle and the lock unit.
  4. Attach the wire for the interior door handle.
  5. Screw on the lock unit.

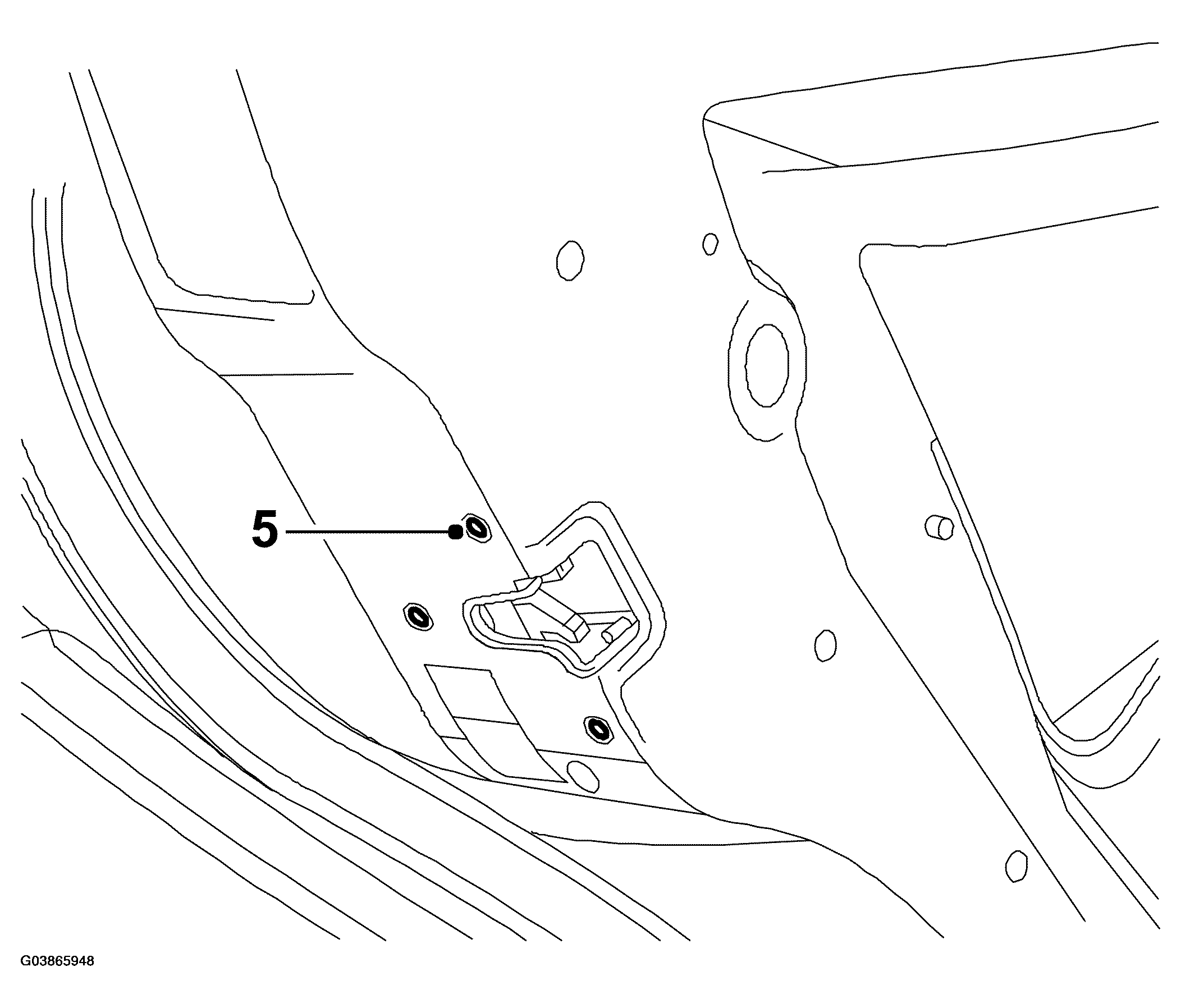

    Fig 2: Illustration For Step 5
    G03865948Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Refit the water separator, door trim and cover around the window frame.
