Rear door handle: Removing

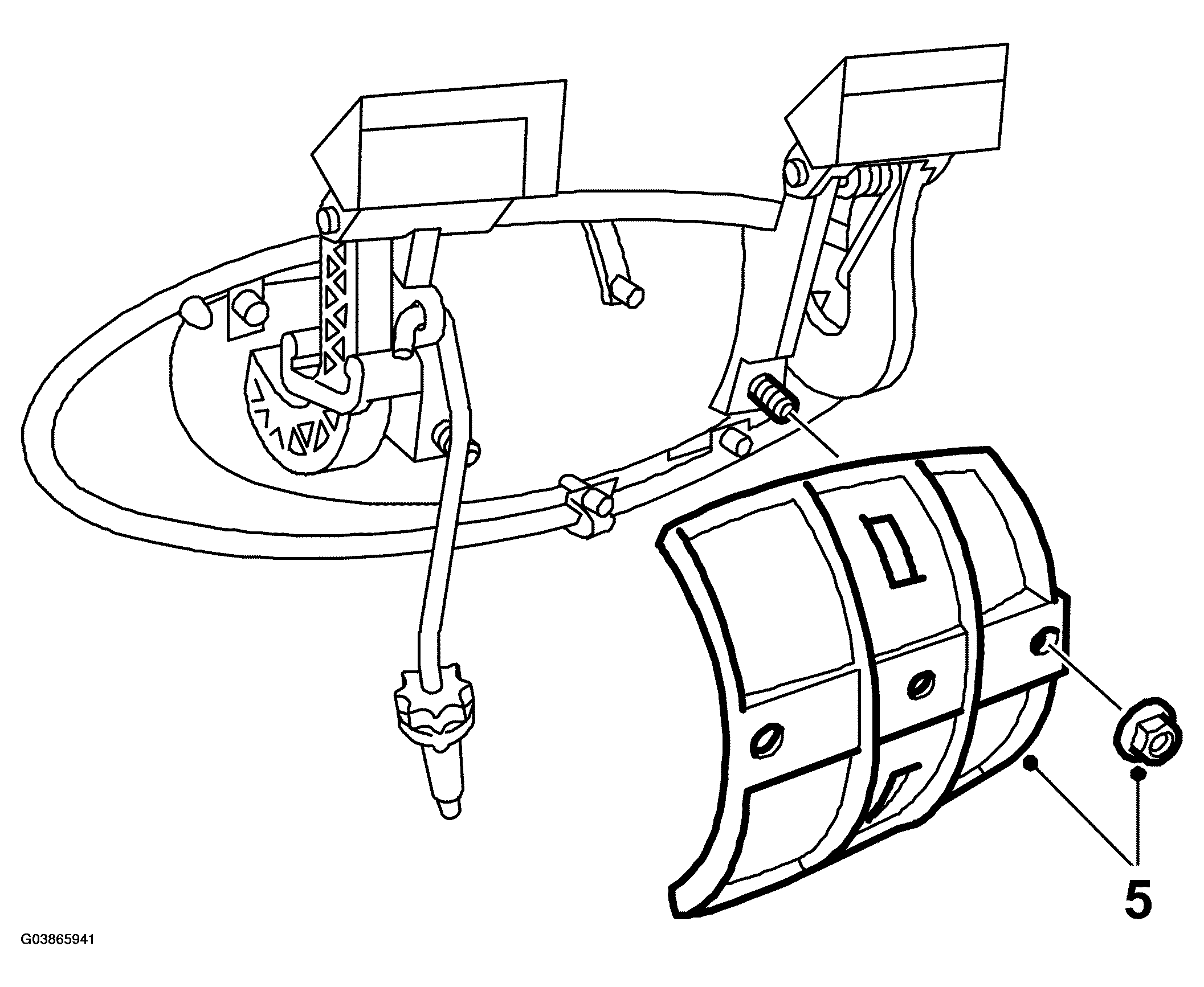

Fig 1: Illustration For Step 5
G03865941Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Open the door.
  2. Remove the cover around the window frame.
  3. Remove the door trim.
  4. Remove the water separator using 82 93 474 REMOVAL TOOL .
  5. Remove the nuts and plate from the back of the handle.
  6. Remove the three screws holding the lock unit.

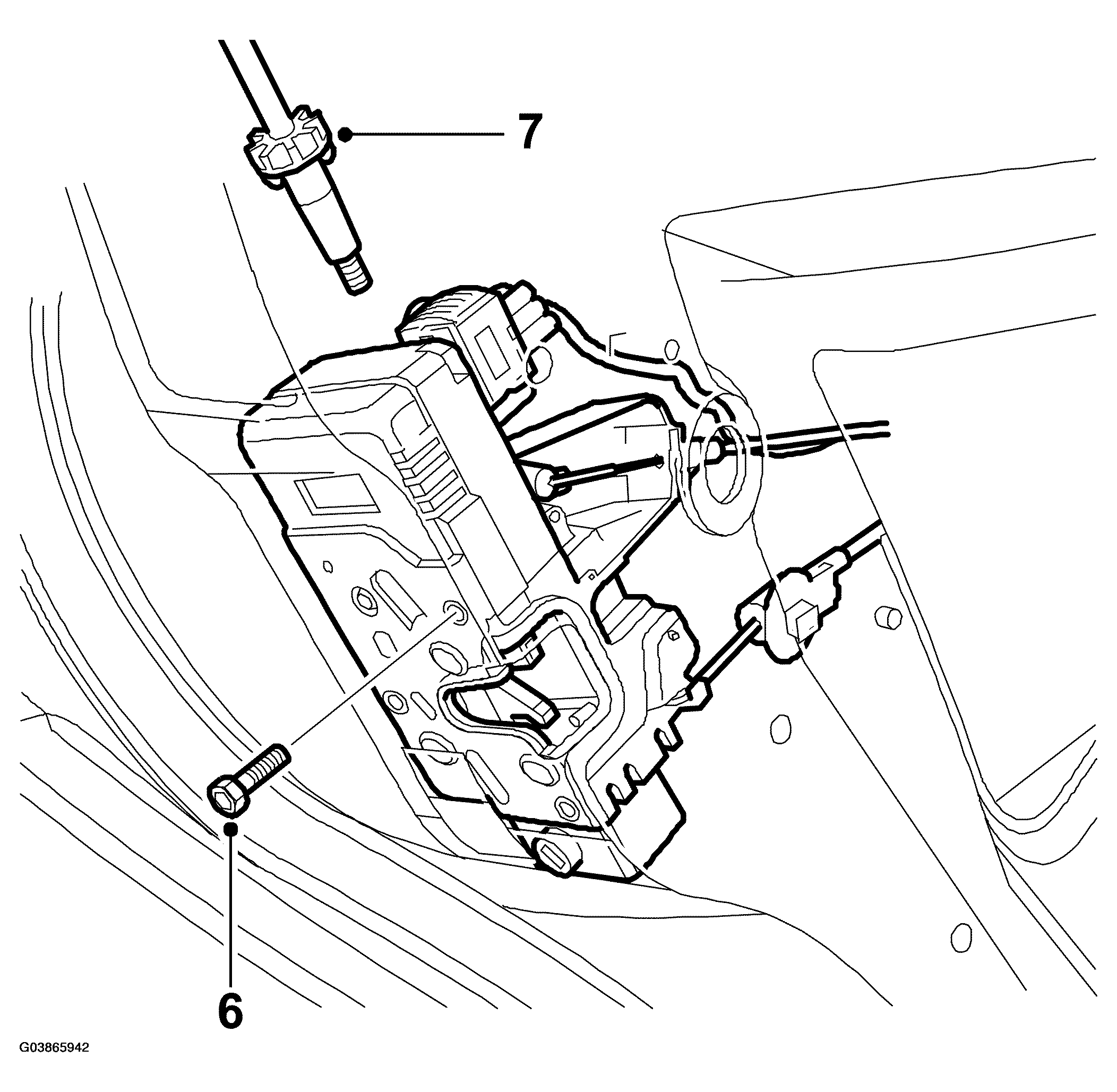

    Fig 2: Illustration For Step 6, 7
    G03865942Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Lower the lock unit slightly so that the push rod falls out.
  8. Lift out the handle.
