Rear door handle: Fitting

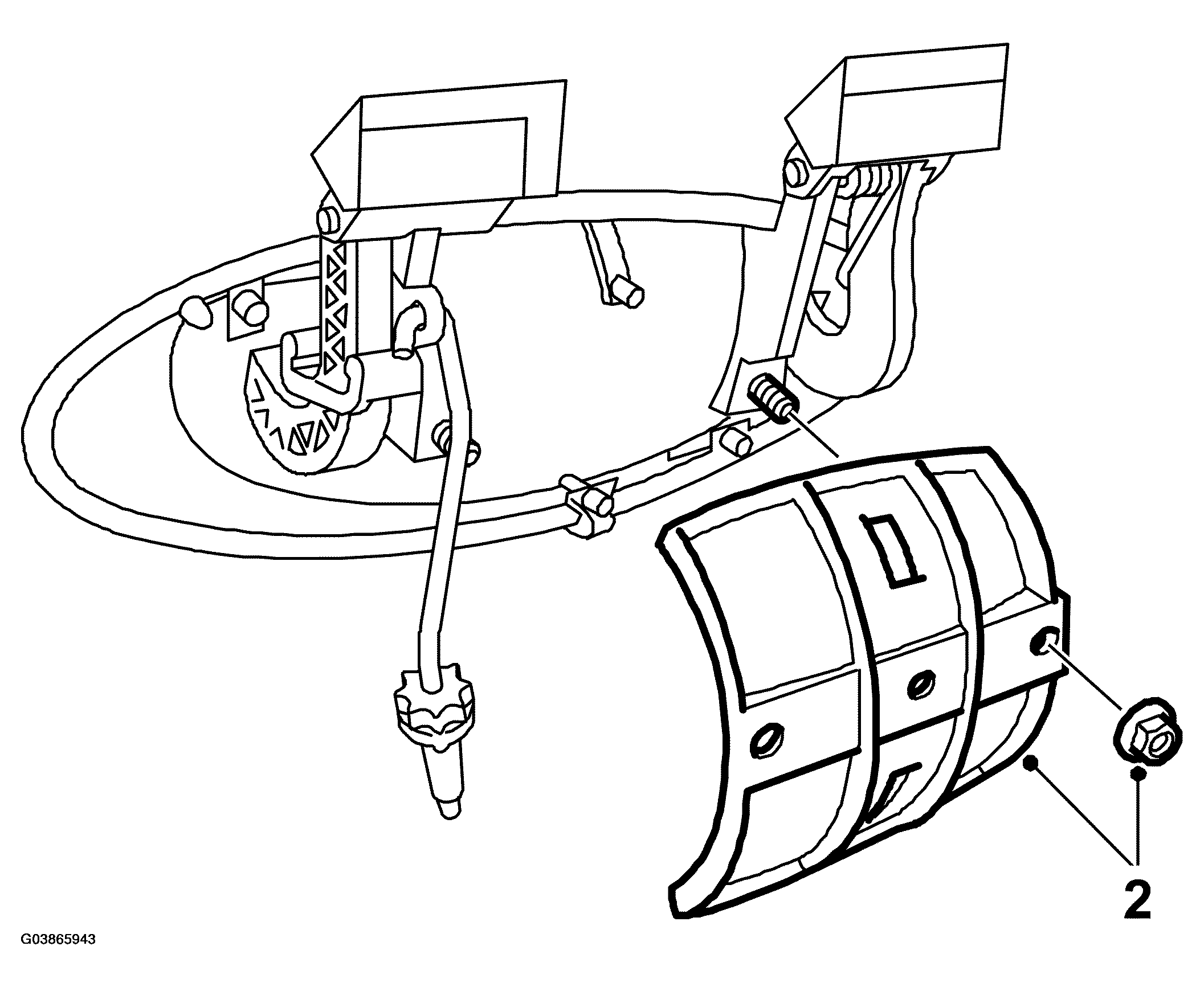

Fig 1: Illustration For Step 2
G03865943Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Put the handle in place.
  2. Fit the plate and tighten the handle nuts.
  3. Guide the push rod into the lock unit and position it in the door.

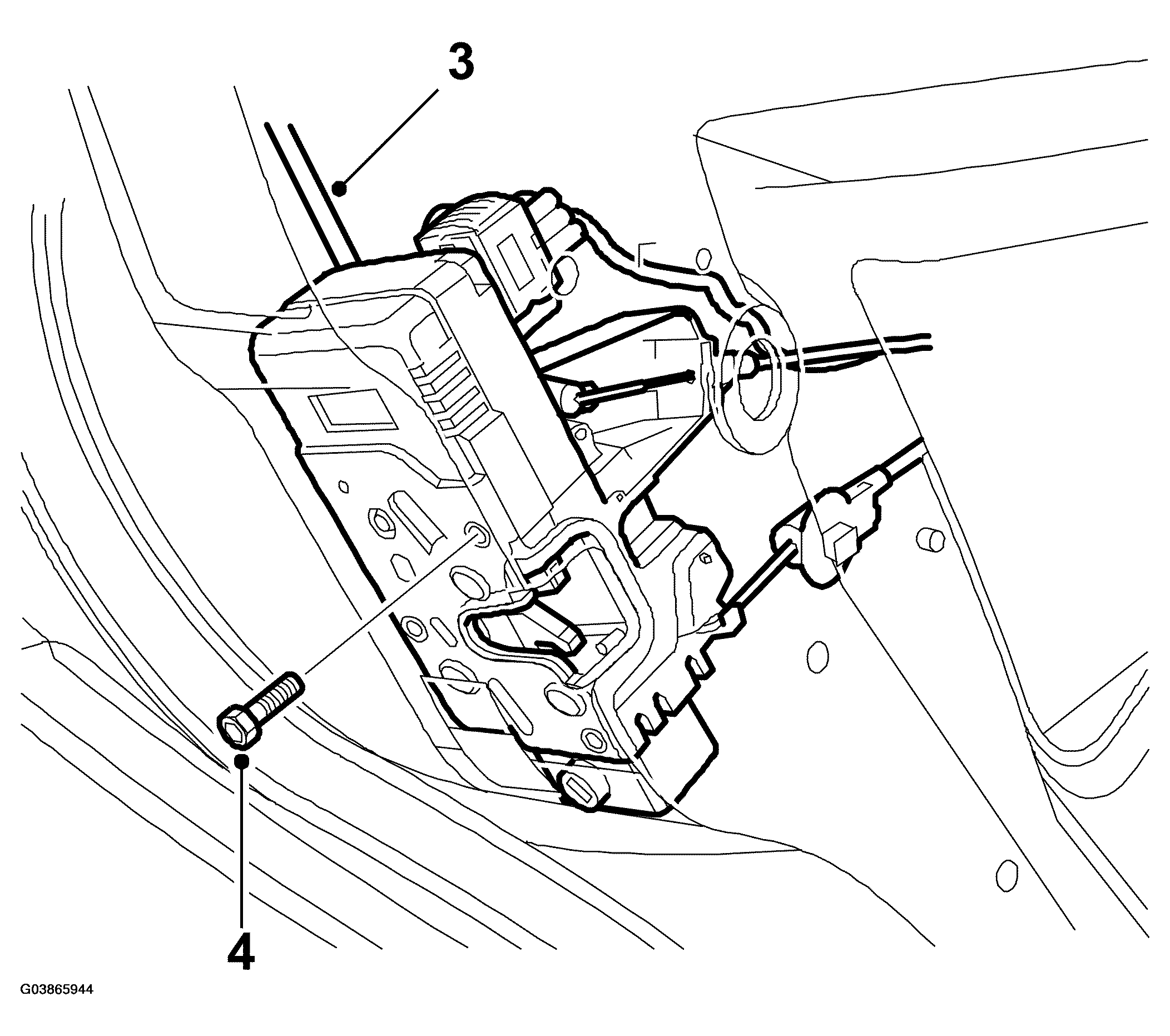

    Fig 2: Illustration For Step 3, 4
    G03865944Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Screw on the lock unit.
  5. Refit the water separator, door trim and cover around the window
