To fit

  1. Screw on the lock unit with the nut inside the tank hatch.

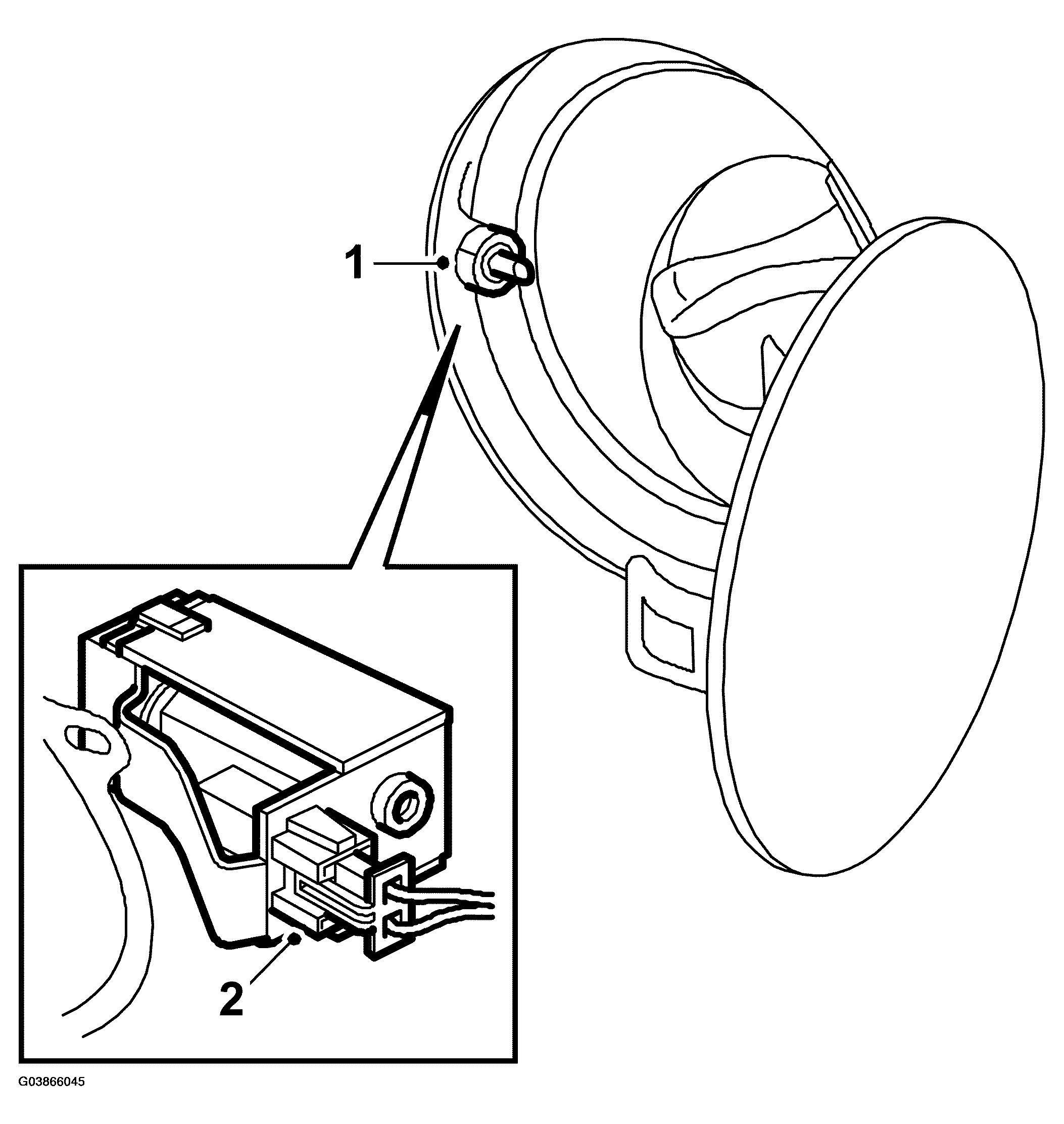

    Fig 1: Illustration For Step 1-2
    G03866045Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Plug in the connector and fit the lock unit.
  3. Fit luggage compartment trim, side trim, 5D to the right-hand side.
