To fit

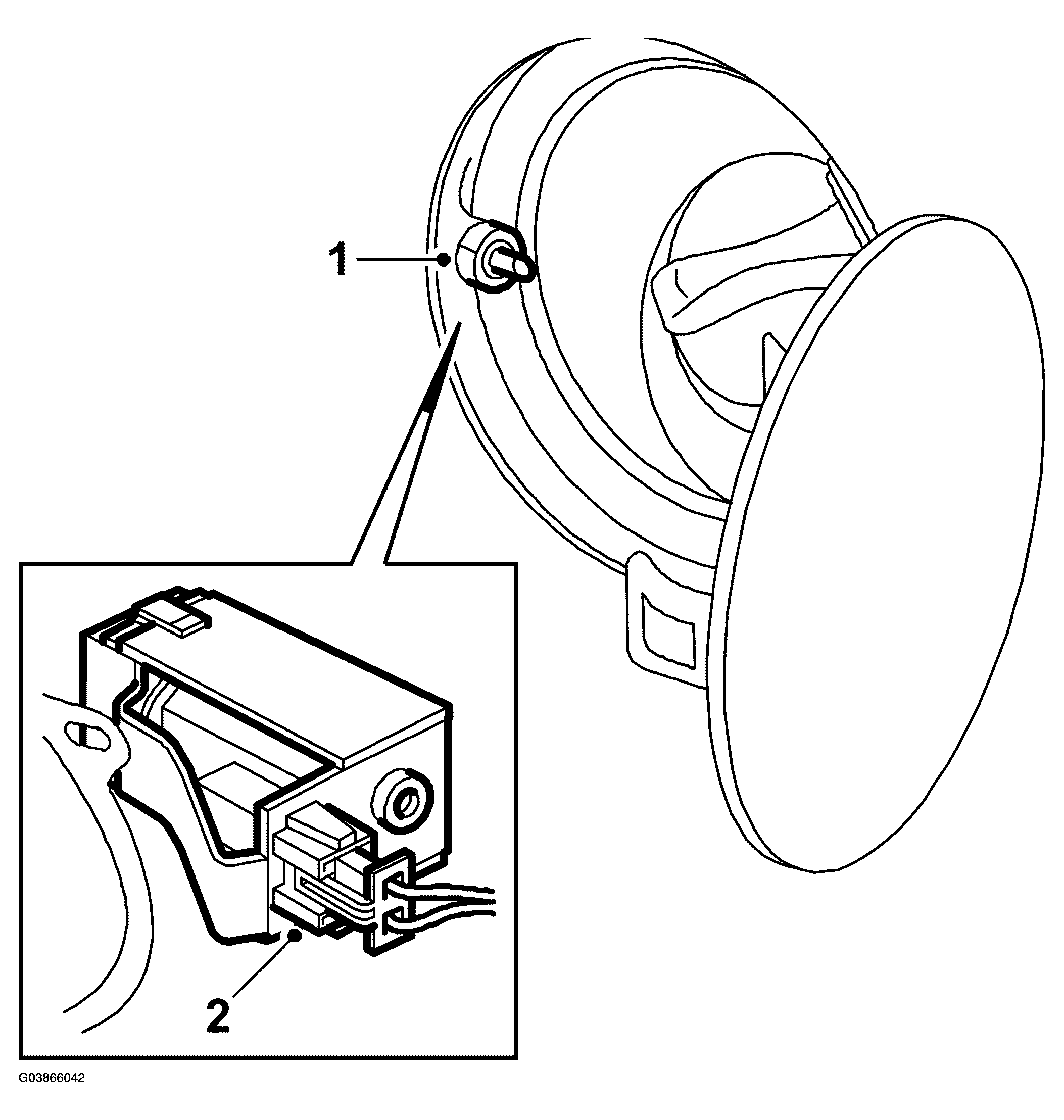

Fig 1: Illustration For Step 1-2
G03866042Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Screw on the lock unit with the nut inside the tank hatch.
  2. Plug in the connector on the lock unit.
  3. Fold back the carpet.

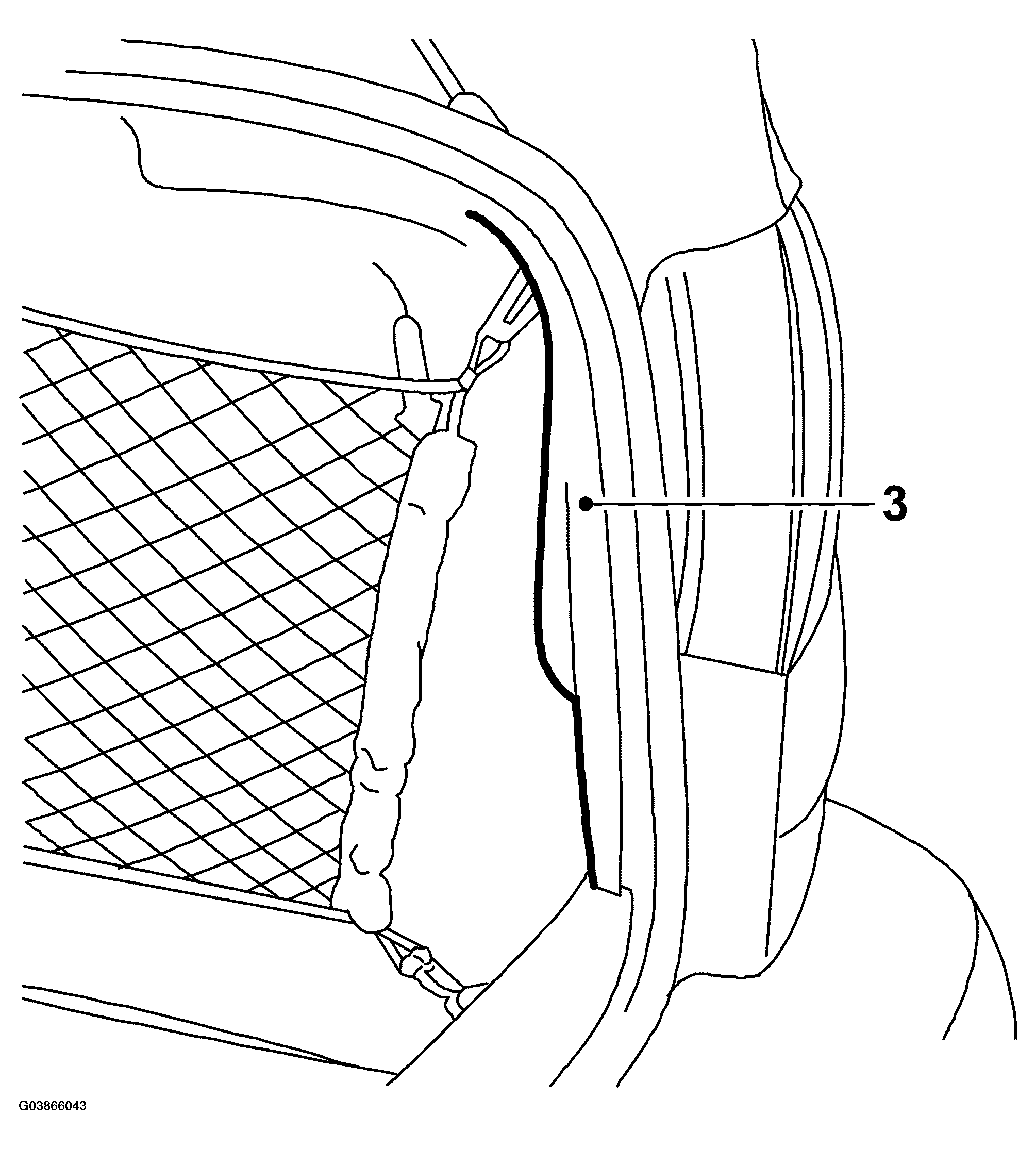

    Fig 2: Illustration For Step 3
    G03866043Courtesy of SAAB-SCANIA OF AMERICA, INC.
