To fit

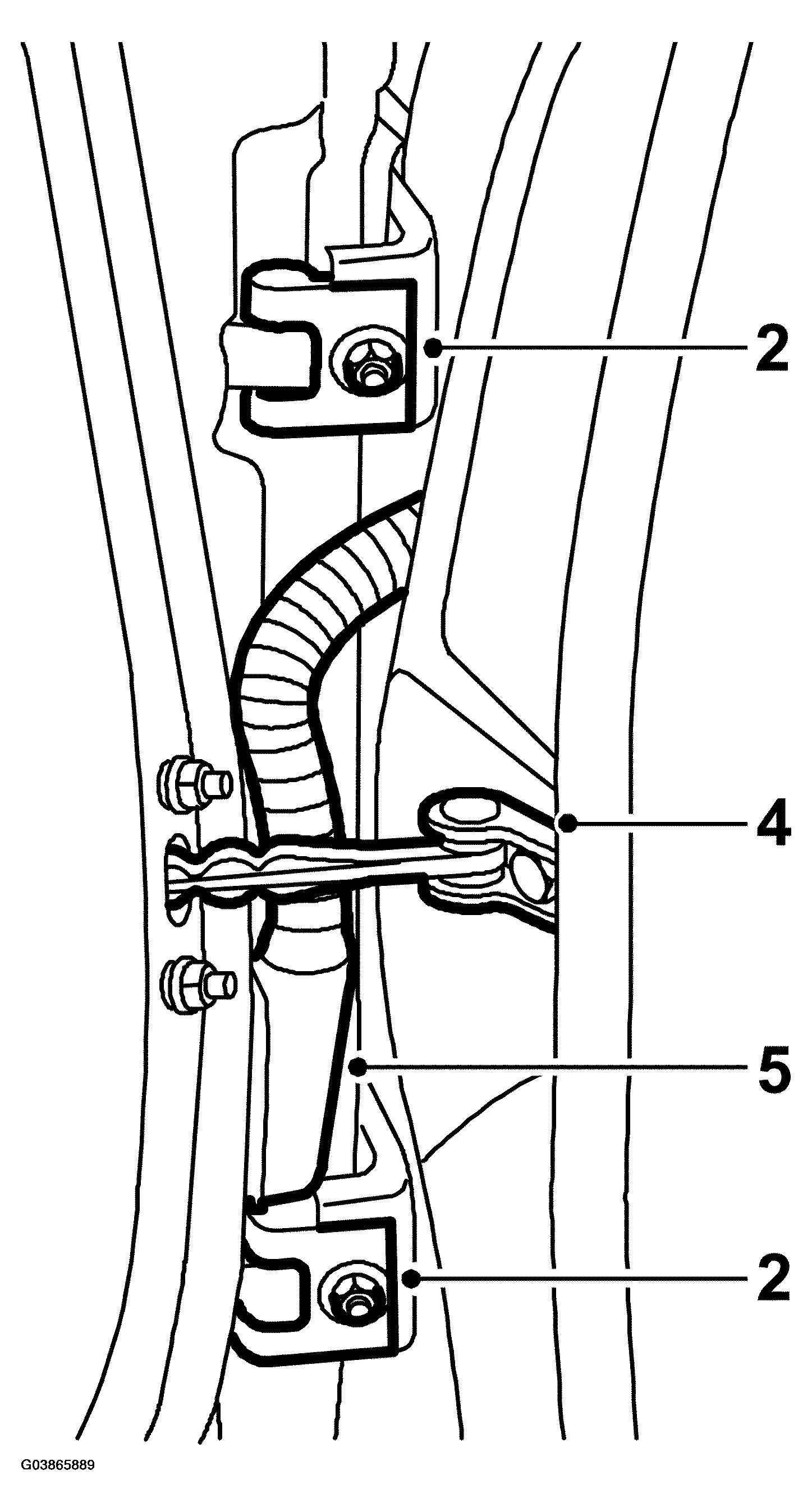

Fig 1: Illustration For Step 2,4,5
G03865889Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Lift the door onto the hinge mountings.
  2. Screw on the nuts.
  3. Check the fit between the front and rear doors and tighten the nuts.
    NOTE: To obtain the correct fit between the front and rear doors, it may be necessary to slightly lift the rear of the door while tightening the nuts.
  4. Fit the door stop to the A-pillar.
  5. Connect the wiring harness in the door.
  6. Check the electrical functions in the door, window lifts, lock, etc.
  7. Connect the diagnostic tool and clear any diagnostic trouble codes.
