Simplified adjustment of the front door, upwards, downwards, inwards and outwards

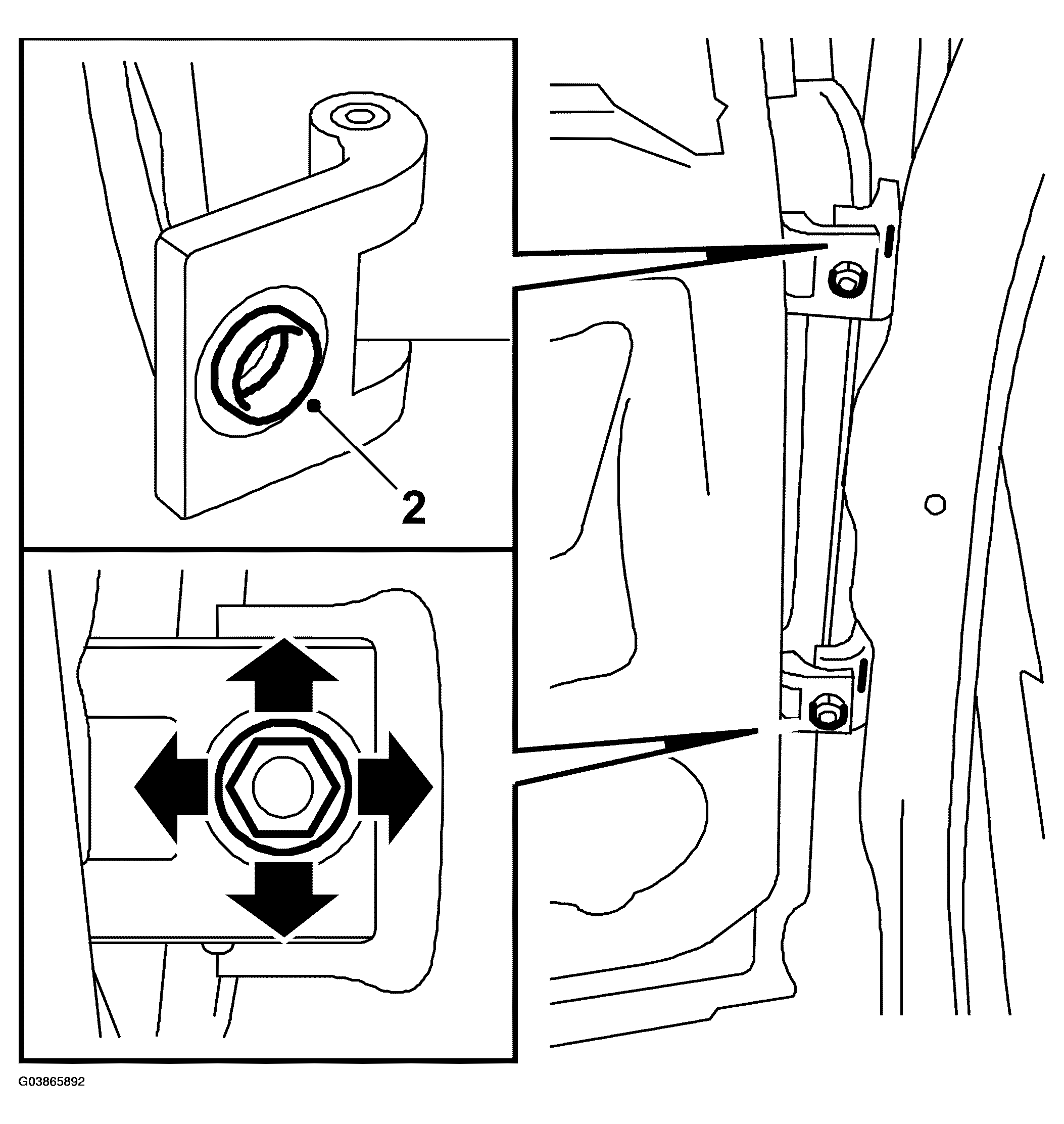

Fig 1: Illustration For Step 2

Courtesy of SAAB-SCANIA OF AMERICA, INC.

When only a slight adjustment upwards, downwards, inwards and outwards is required, the following simplified adjustment can be implemented.

1. Open the door and unscrew the nut.
2. Knock out the sleeve.
3. Screw on the nut and adjust the door.
