Adjusting the front door, inwards and outwards

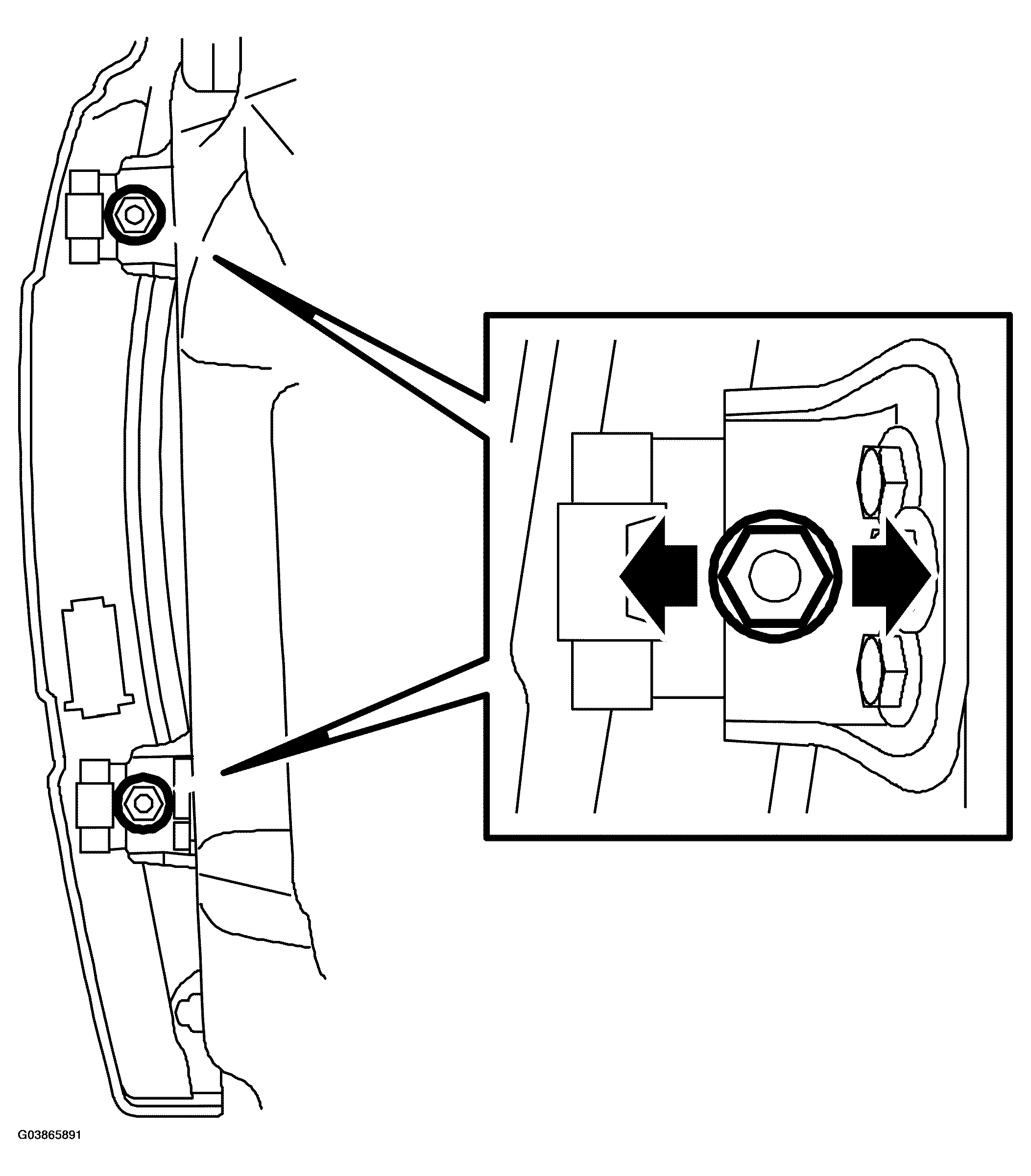

Fig 1: Adjusting Front Door Inwards And Outwards
G03865891Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the front door. If the front wing has been remove it is not necessary to remove the door.
  2. Loosen the nuts so that the screws can just be moved.
  3. Hang the door and adjust it.
  4. Lift off the door again and tighten the nuts.
  5. Refit the door.
