Adjusting the rear of the boot lid

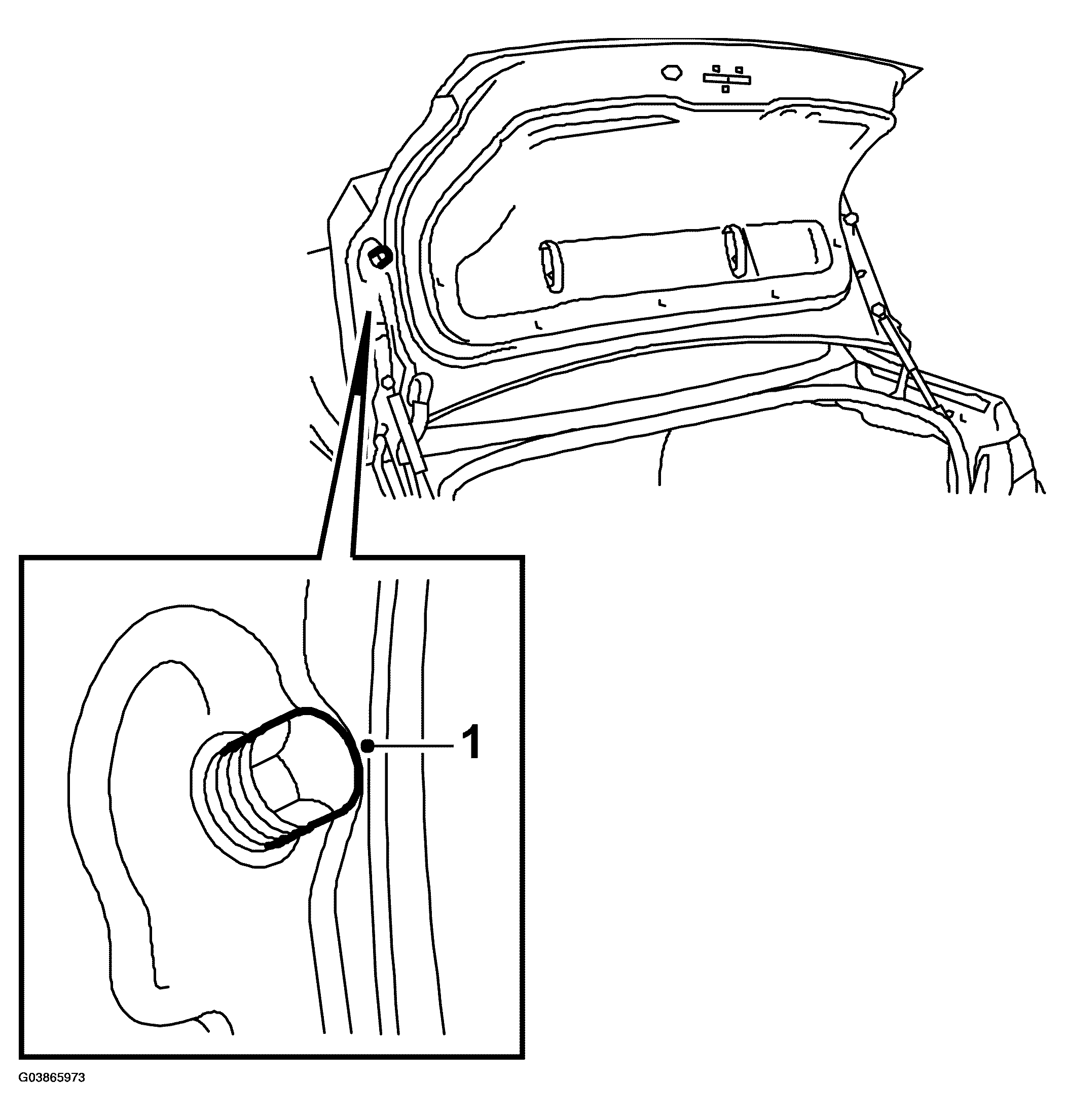

Fig 1: Illustration For Step 1
G03865973Courtesy of SAAB-SCANIA OF AMERICA, INC.

The position of the rear of the boot lid when it is closed is determined by the two rubber buffers mounted on it.

  1. Adjust the buffers by screwing them in or out.
