Adjusting the front height of the bonnet

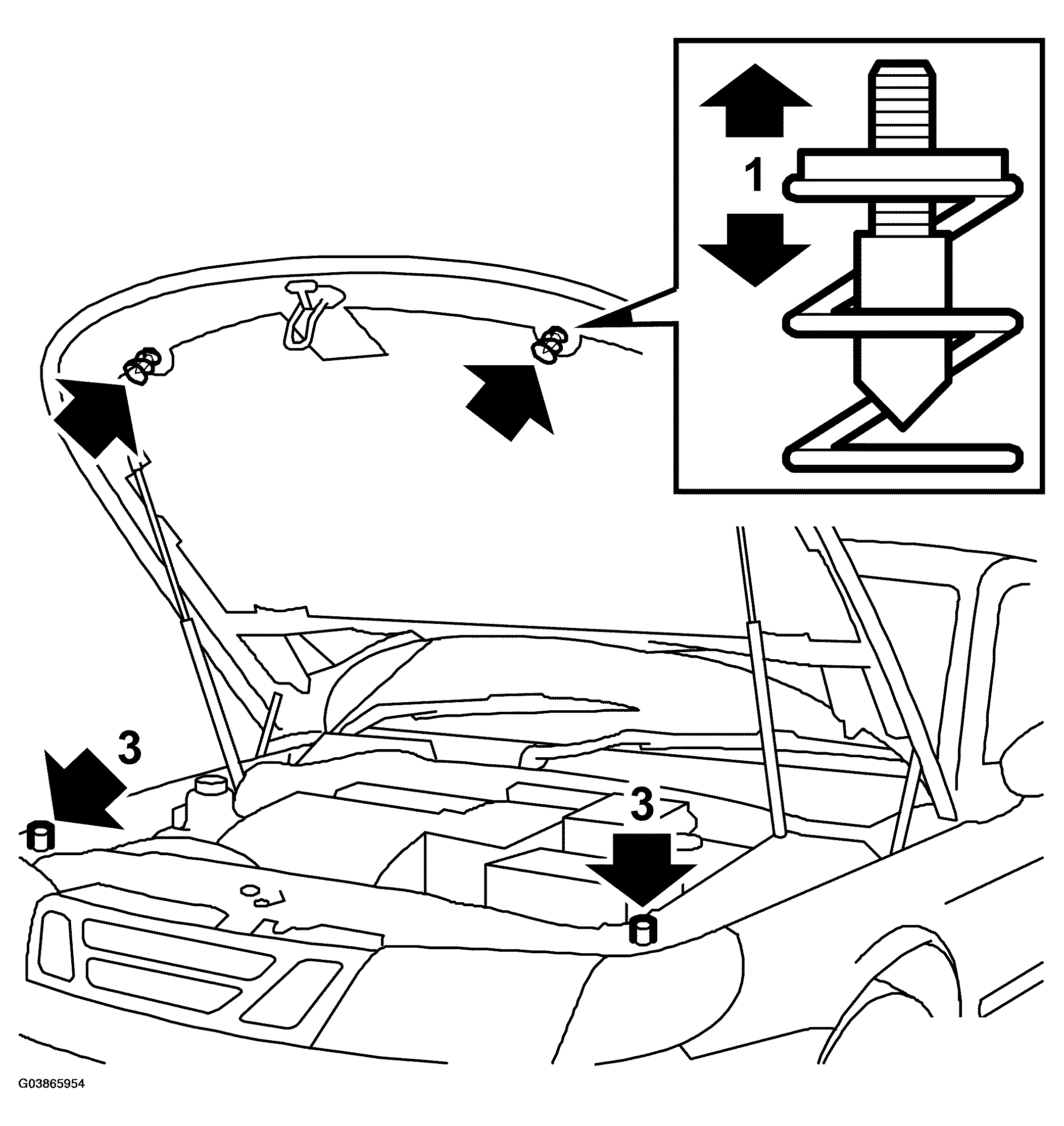

Fig 1: Adjusting Front Height Of Bonnet
G03865954Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Undo the locking pins nuts.
  2. Adjust the position of the locking pins with a screwdriver.
  3. Adjust the rubber buffers correspondingly.
