Trip computer

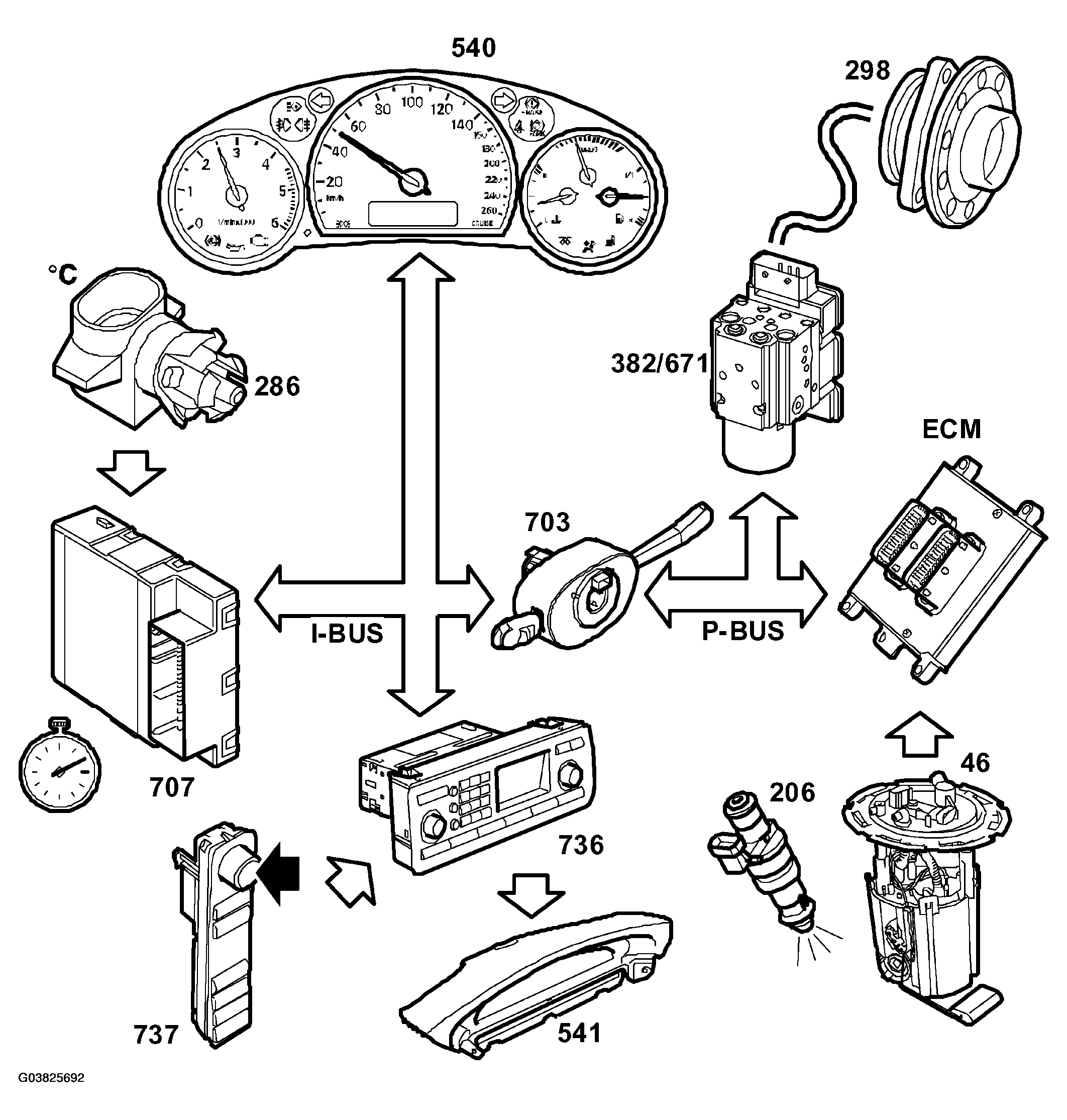

Fig 1: Identifying Trip Computer

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The following trip computer functions are available:

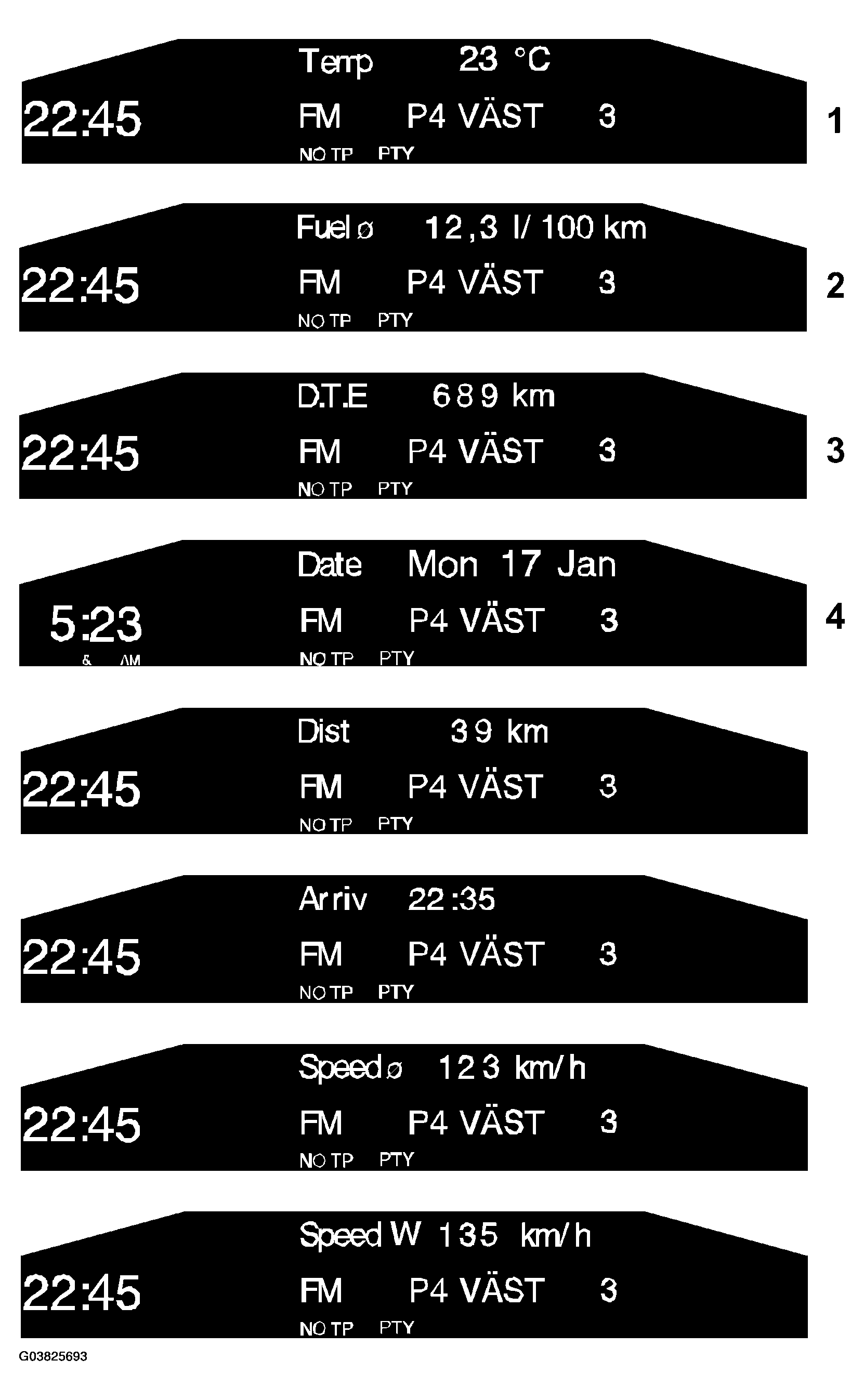

Fig 2: Identifying Trip Computer Functions Display

Courtesy of SAAB-SCANIA OF AMERICA, INC.

SID1

• TEMP (outside temperature via BCM)
• FUEL (average fuel consumption)
• DTE (distance to empty).
• DATE

SID2

• TEMP (outside temperature via BCM)
• FUEL (average fuel consumption)
• DTE (distance to empty).
• DATE
• DIST (distance remaining). This function can also be used as a tripmeter.
• ARRIV (estimate time of arrival)
• SPEED (average speed)
• SPEED W (speed warning)

  After starting the engine, the function being used when the engine was last turned off will be displayed with the following exceptions:

• TEMP will be shown if it is between -3°C and +3°C.
• DTE will be shown if it is 50 km or less.

TEMP will always be shown when the outside temperature rises or falls to within the interval -3°C and +3°C.
