Transport mode

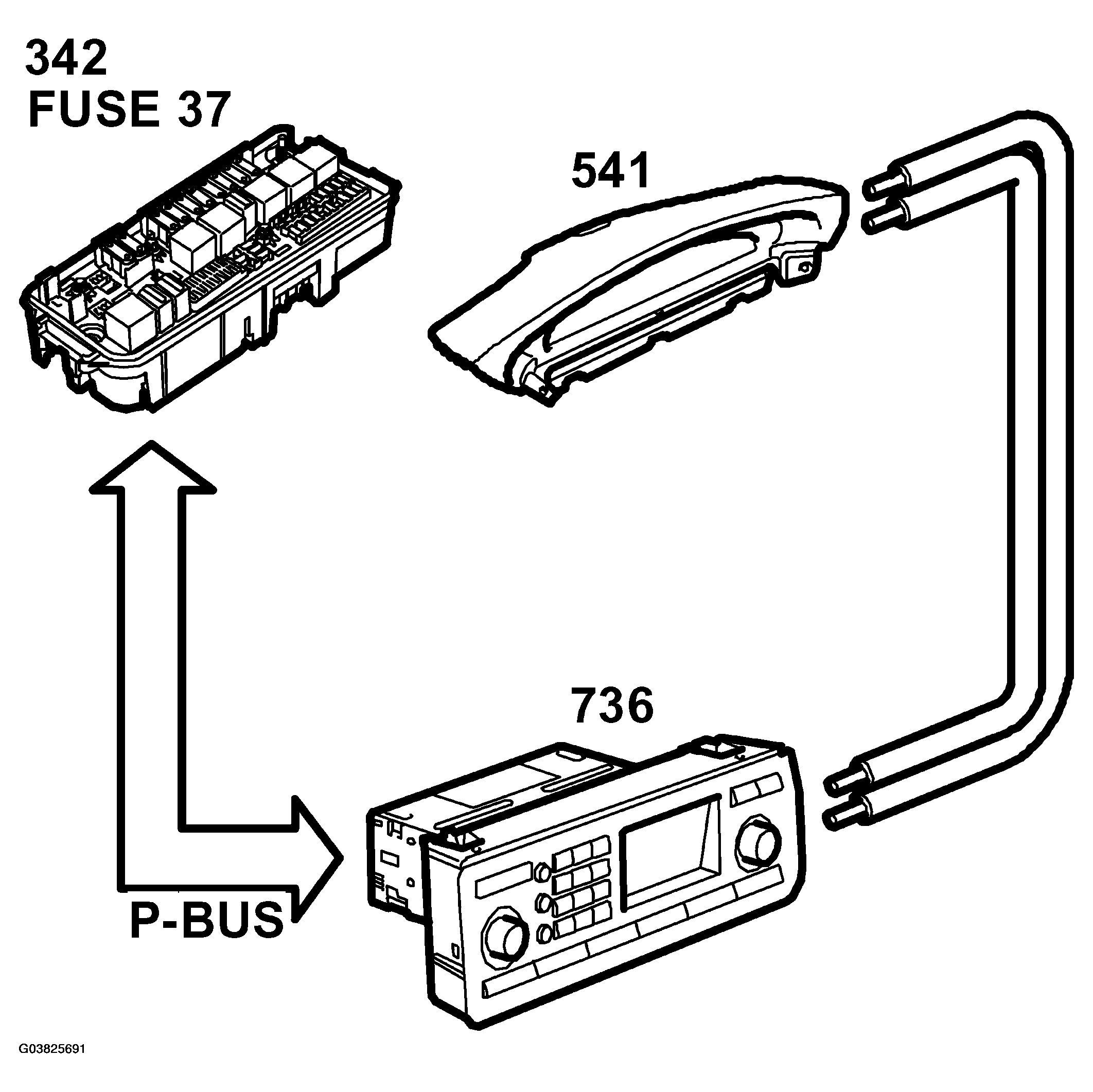

Fig 1: Identifying Transport Mode
G03825691Courtesy of SAAB-SCANIA OF AMERICA, INC.

The car is put in transport mode by removing fuse 37 from the underhood electrical center (UEC) and then turning the ignition key to ON.

The message "Transport Fuse Removed" will be displayed on SID when transport mode has been activated.
