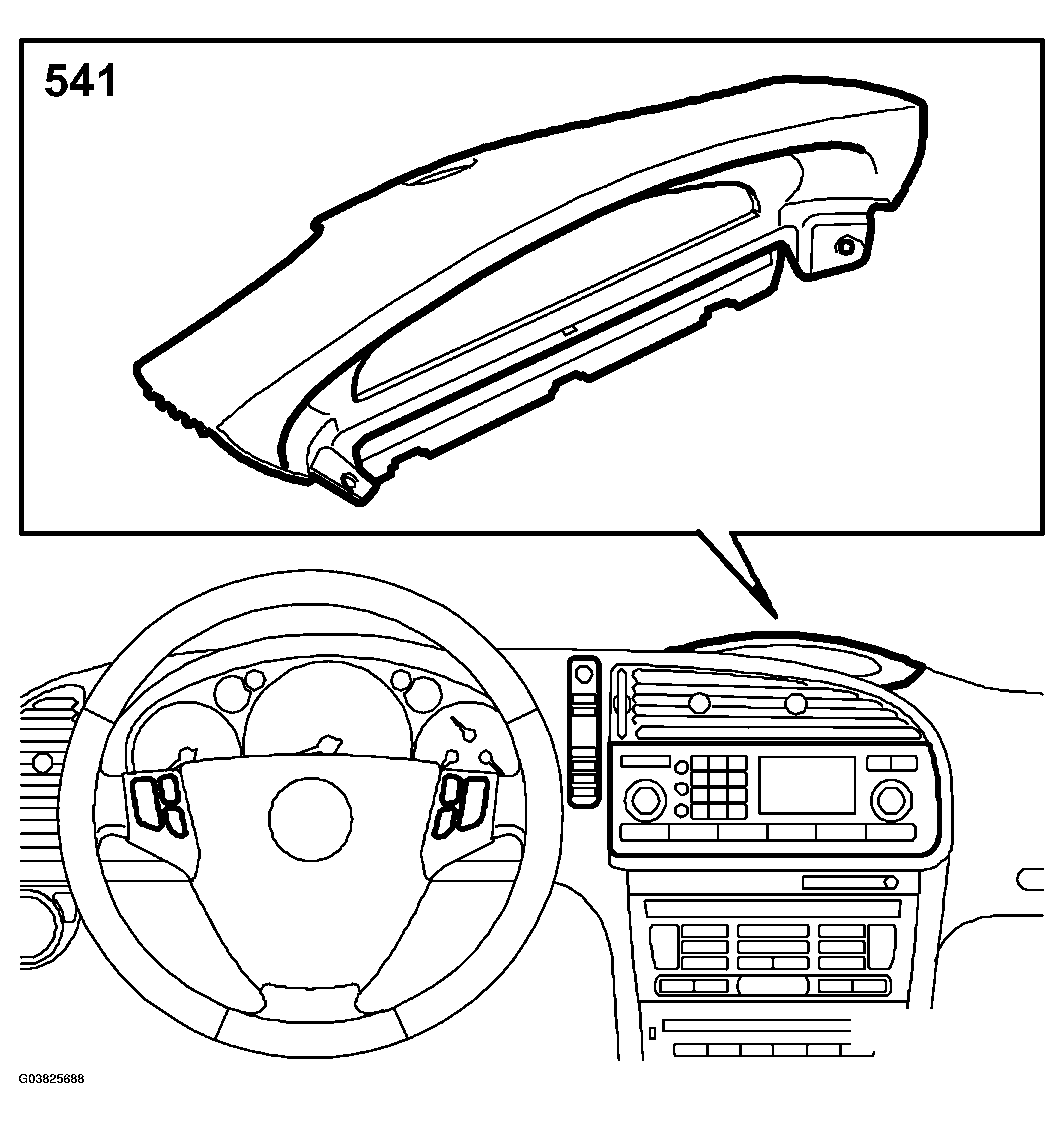

Functions in SID
SID displays information on the following vehicle functions to the driver and passenger:
- Trip computer information and settings
- Warning & indicator messages
- Time and date (from BCM)
- Outside temperature (from BCM)
- Navigation symbols (direction arrows, etc, only on ICM 3)
- Radio and CD information
- Service messages
- Telephone information (symbols and text messages)
- Customer settings
- Alarm indicator (if alarm fitted), LED on back of SID
SID stores all the characters and symbols used and displayed by SID. All text information is stored in ICM (infotainment display panel) and SID creates the text and symbol images to be shown.
