CUSTOMIZE button
Customer settings are done using the CUSTOMIZE button. A number of different menu choices for navigation are shown when the CUSTOMIZE button is pressed. The number of menu choices depends on the equipment level of the car. The following choices may be available:
- Theft Alarm
- Park Heater
- Block Heater
- Park Assistance
- Clock/Alarm
- Rain Sensor
- Climate System
- System Settings
- Exit

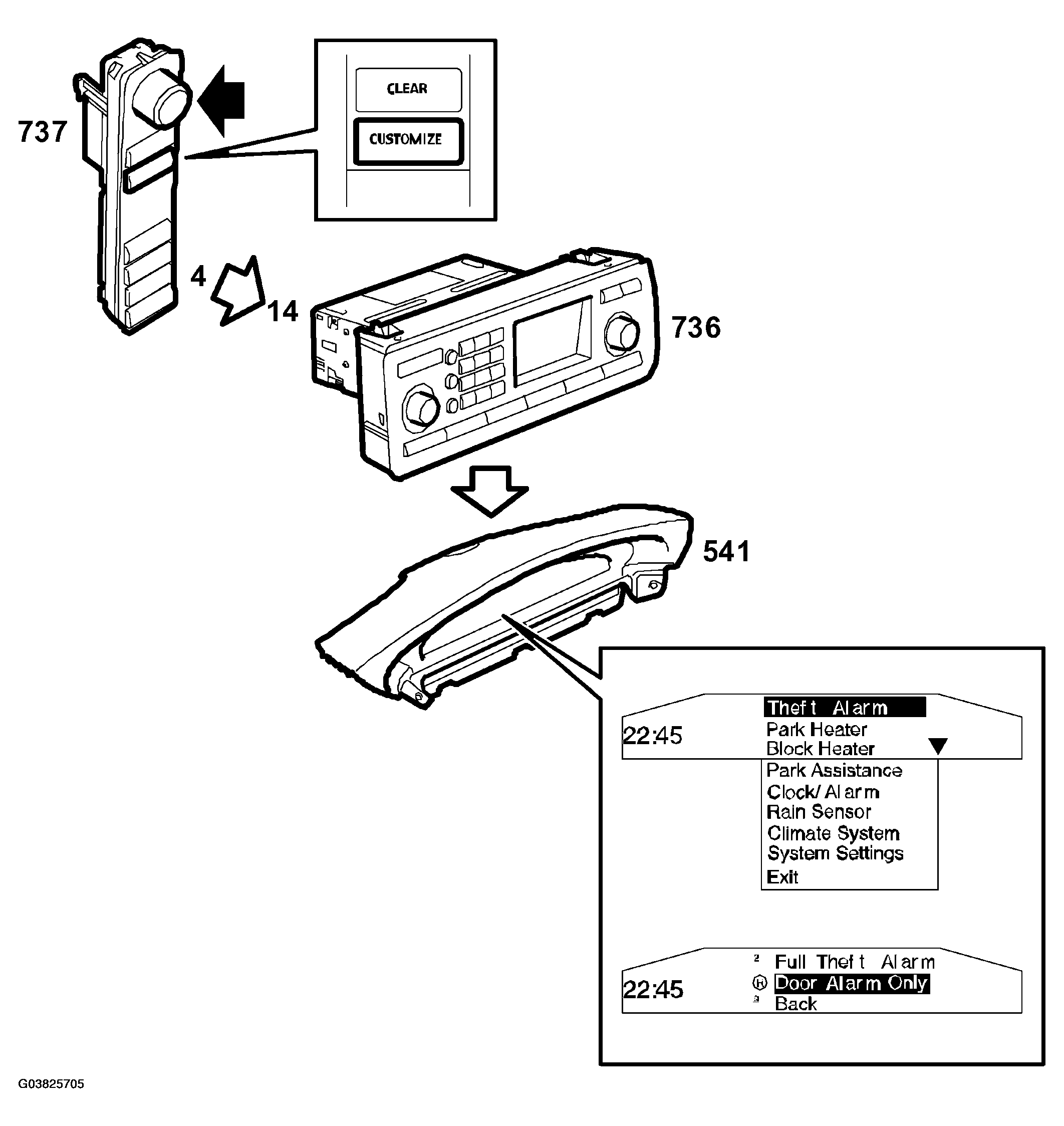

Pressing the CUSTOMIZE button will make SIDC send a 5V 960Hz PWM signal with pulse ratio 70% on pin 4 to ICM pin 14.
Customer settings are done using the CUSTOMIZE button. A number of different menu choices for navigation are shown when the CUSTOMIZE button is pressed. The number of menu choices depends on the equipment level of the car. The following choices may be available:
- Theft Alarm
- Park Heater
- Block Heater
- Park Assistance
- Clock/Alarm
- Rain Sensor
- Climate System
- System Settings
- Exit
Pressing the CUSTOMIZE button will make SIDC send a 5V 960 Hz PWM signal with a 72% pulse ratio from pin 4 to pin 14 of the ICM.
