Alarm indicator

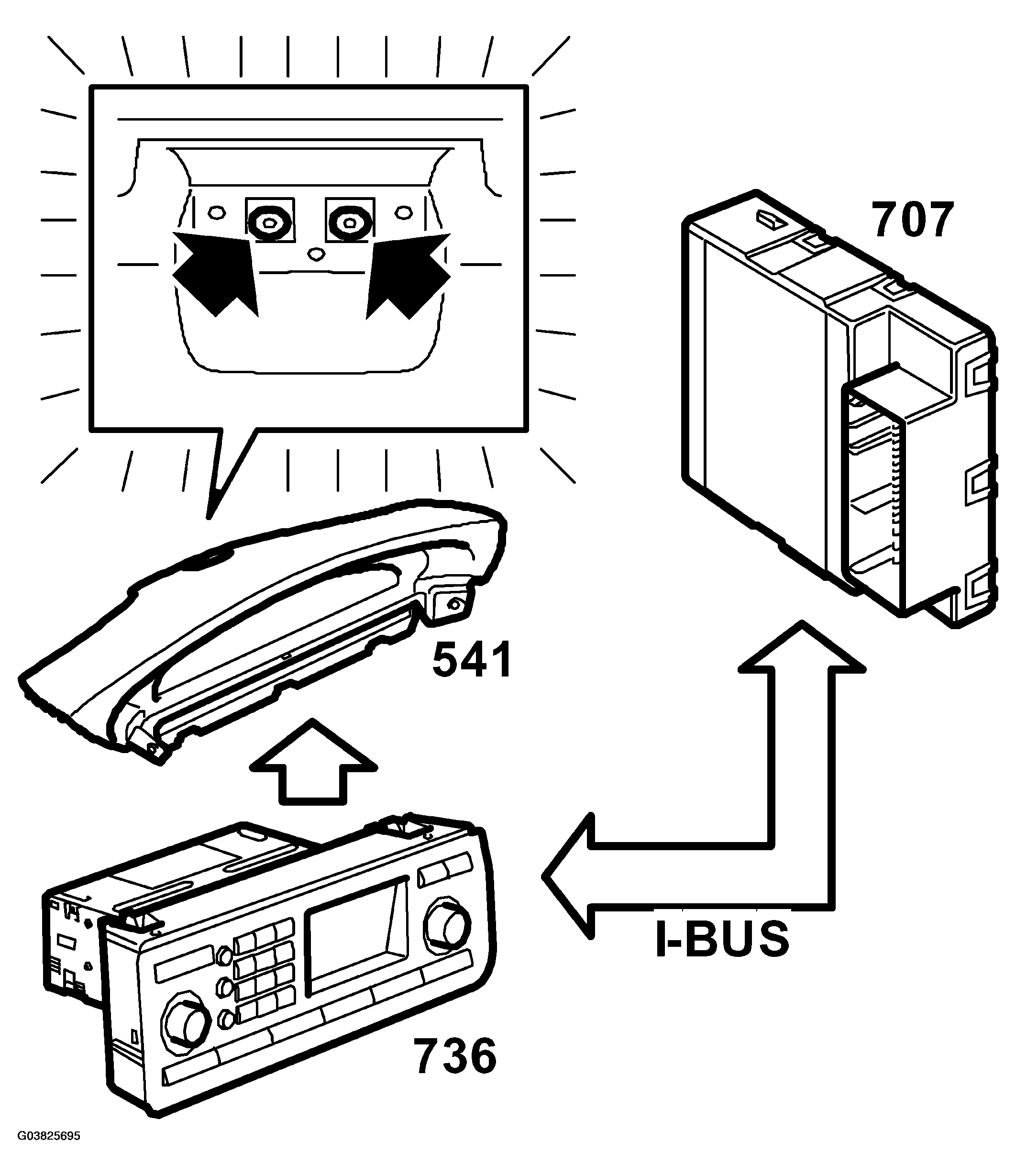

Fig 1: Identifying Alarm Indicator
G03825695Courtesy of SAAB-SCANIA OF AMERICA, INC.

On the SID unit is an LED indicating the state of the alarm. The LED is located on the back of SID next to the light sensor, which measures the ambient light from the front. BCM activates the alarm indicator LED via a wire.
