Main instrument unit display

The lower part of the speedometer displays the following:

1. Odometer and tripmeter (green)
   Fig 1: Identifying Odometer And Tripmeter (Green)

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
2. Indication on TCS or ESP (orange)

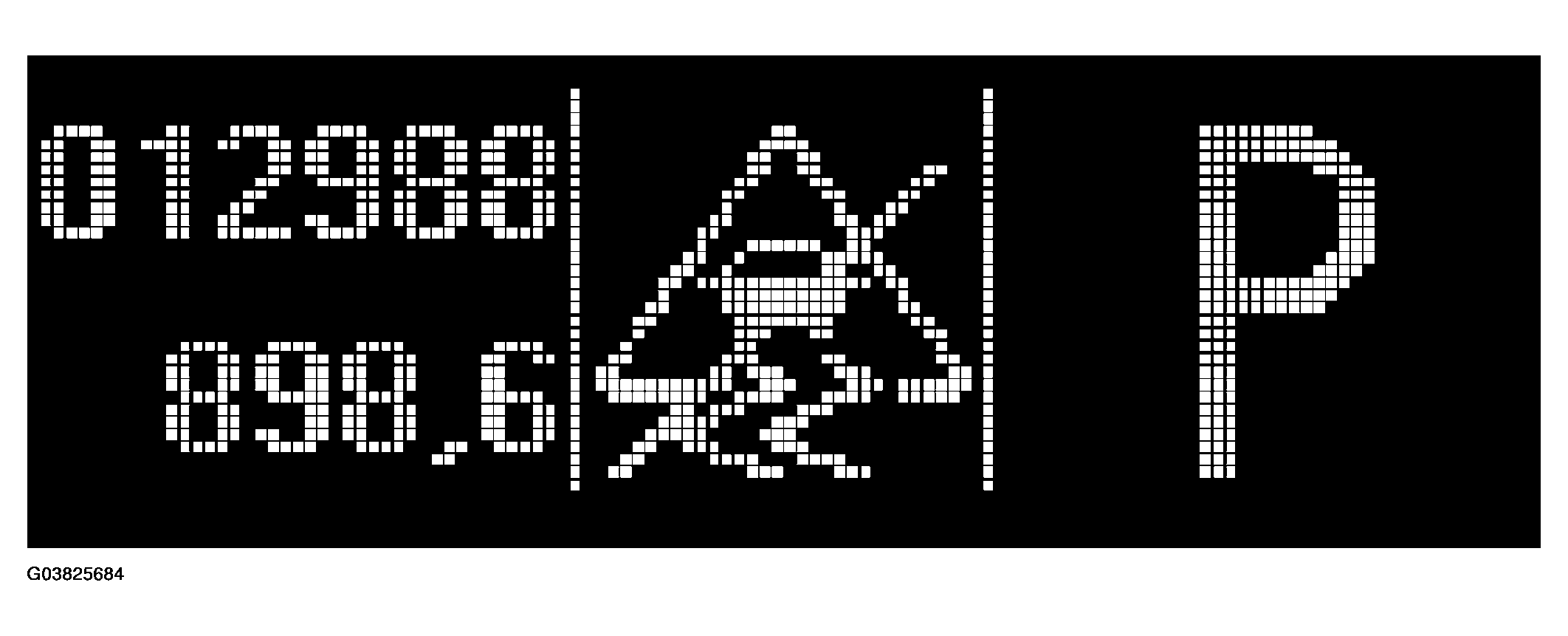

3. Gear indication for automatic transmission (green)

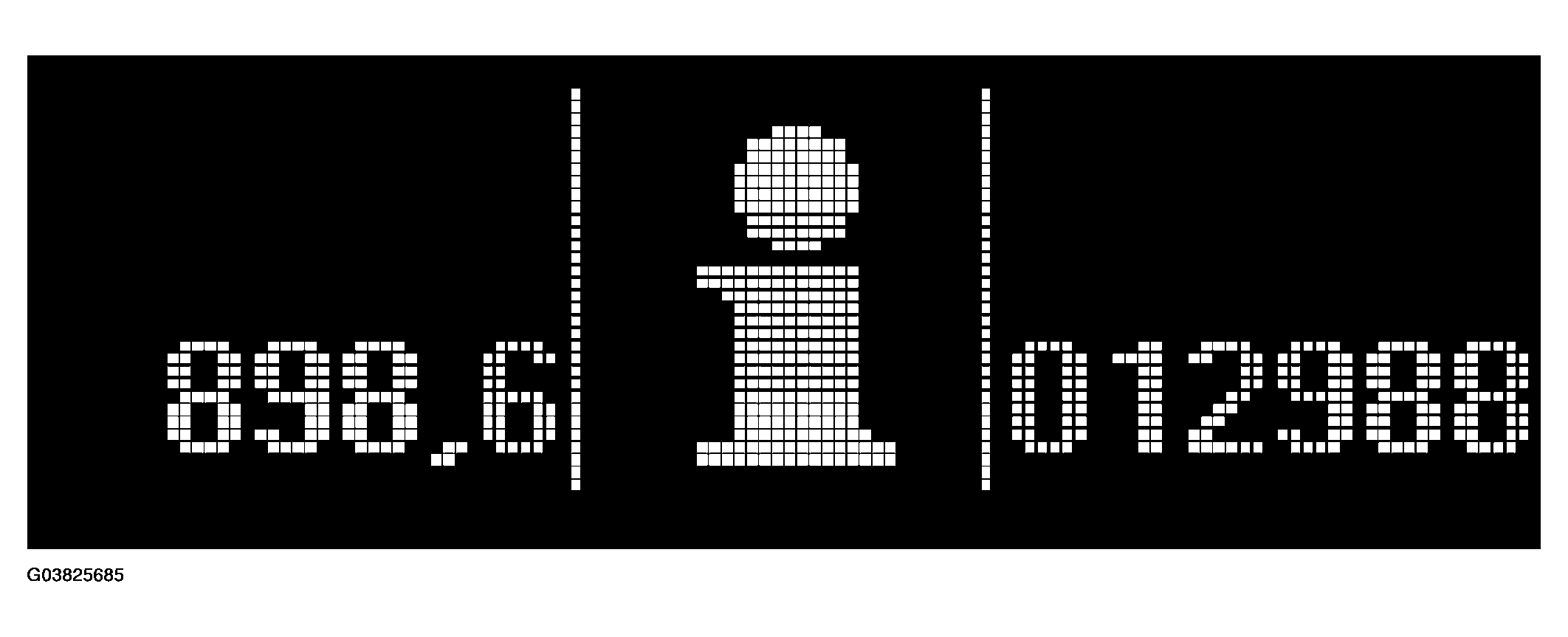

4. "I" for information shown on SID (orange)
   Fig 2: Identifying Gear Indication For Automatic Transmission (Green)

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

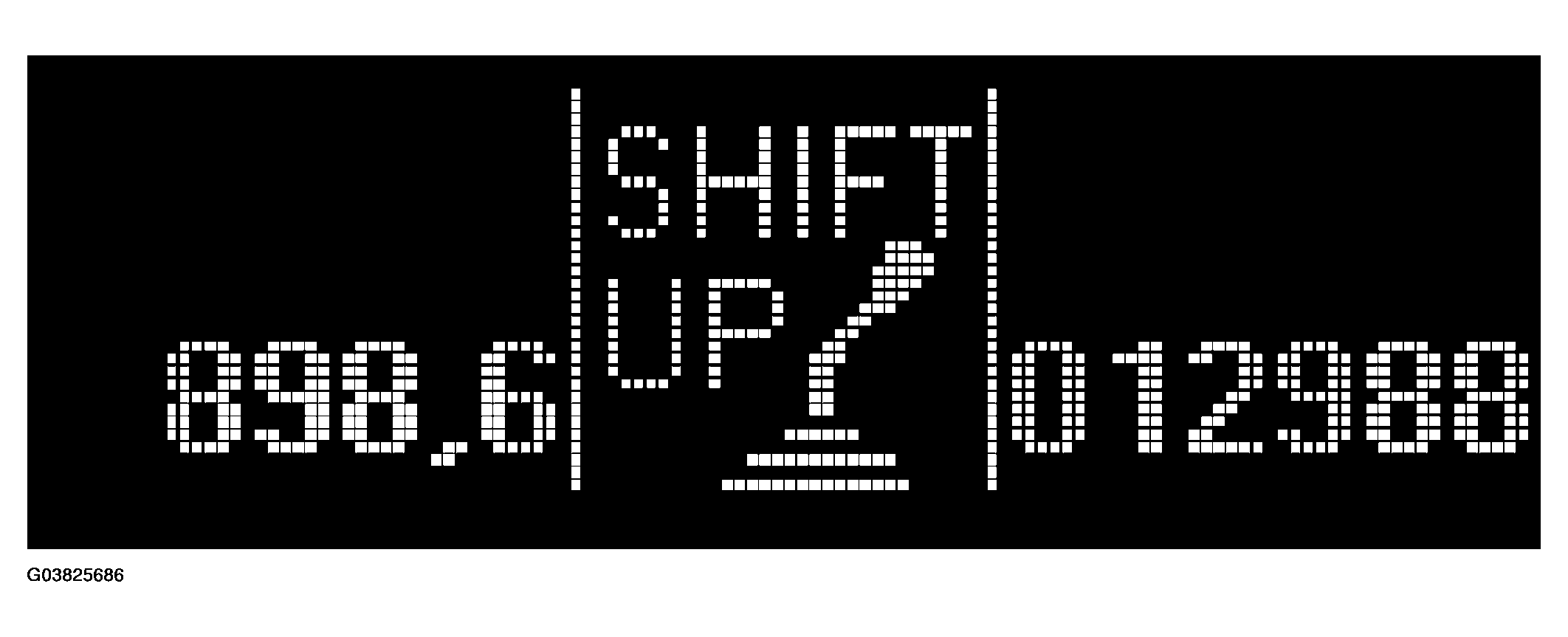

5. Shift up (US/CA), manual transmissions (orange)
   Fig 3: Identifying Shift Up (US/CA), Manual Transmissions (Orange)

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
