Coolant temperature gauge

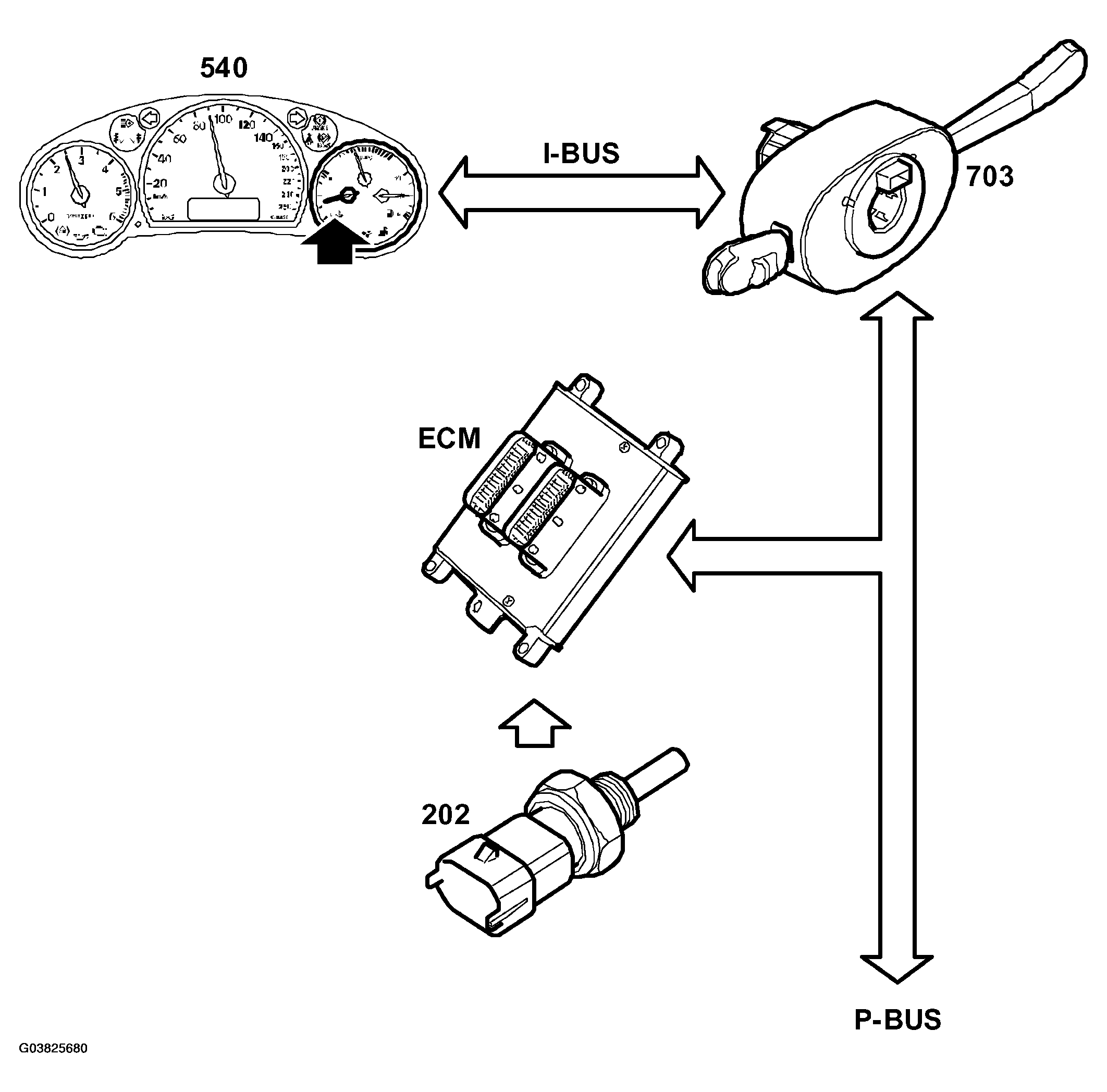

The coolant temperature gauge provides the driver with information on the engine coolant temperature. Information on coolant temperature comes from the coolant temperature sensor, which is connected to the engine control module. The engine control module converts the signal to a coolant temperature bus message and transmits it on the P-bus. CIM forwards this message to the I-bus. The main instrument unit shows the bus message on the coolant temperature gauge.
