Home >> Saab >> 2005 >> 9-3 Linear, 2D Convertible, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Driver Information, Main Instrument Unit & SID - 9-3 >> Fault diagnosis, Symptoms >> Warning lamp, foot brake, faulty function >> Notes

Warning lamp, foot brake, faulty function: Notes

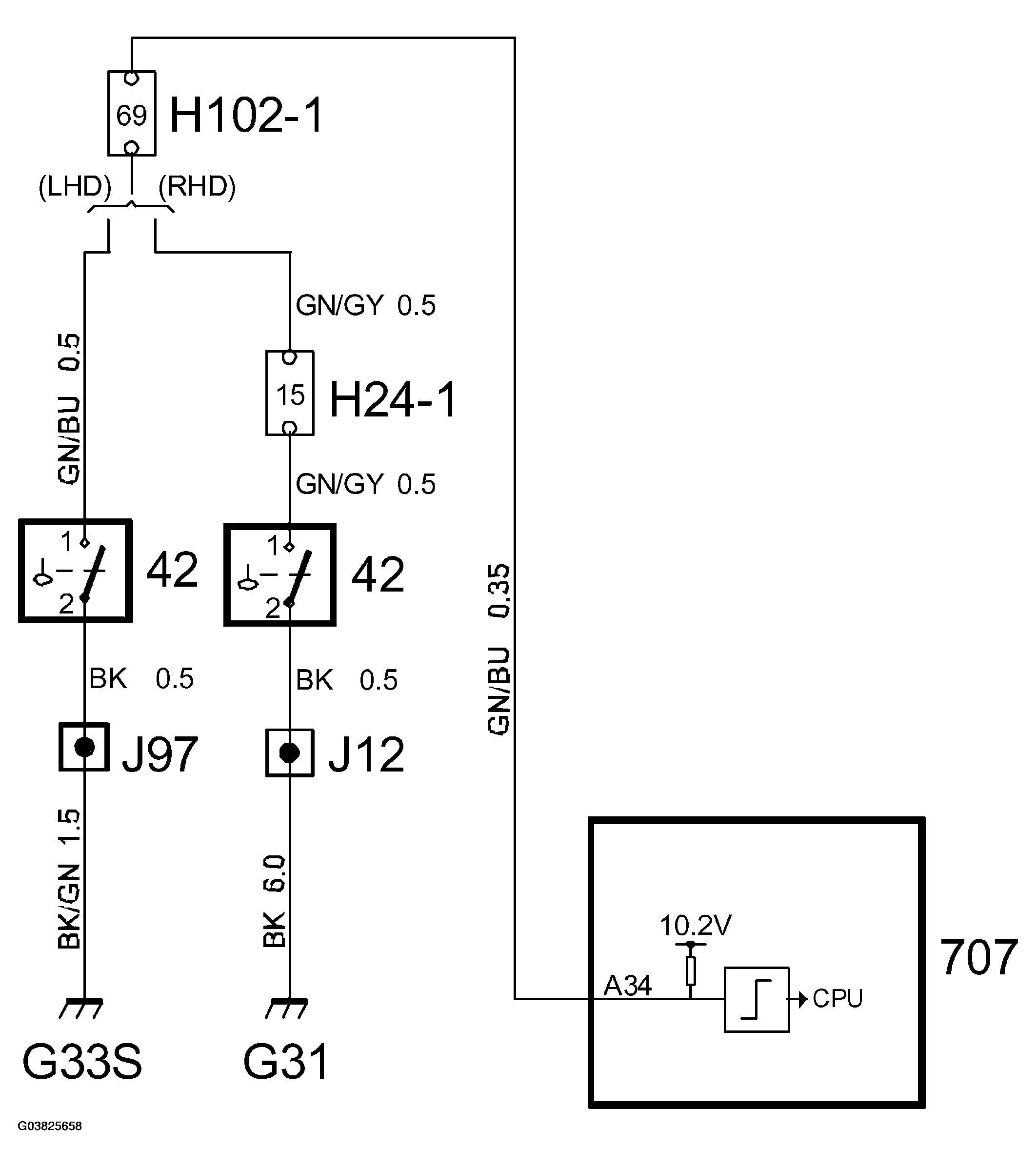

Fig 1: Identifying Warning Lamp, Foot Brake Connection Diagram

G03825658

Courtesy of SAAB-SCANIA OF AMERICA, INC.
