Driver information, main instrument unit and SID / Technical data
>>
Main instrument unit
Main instrument unit

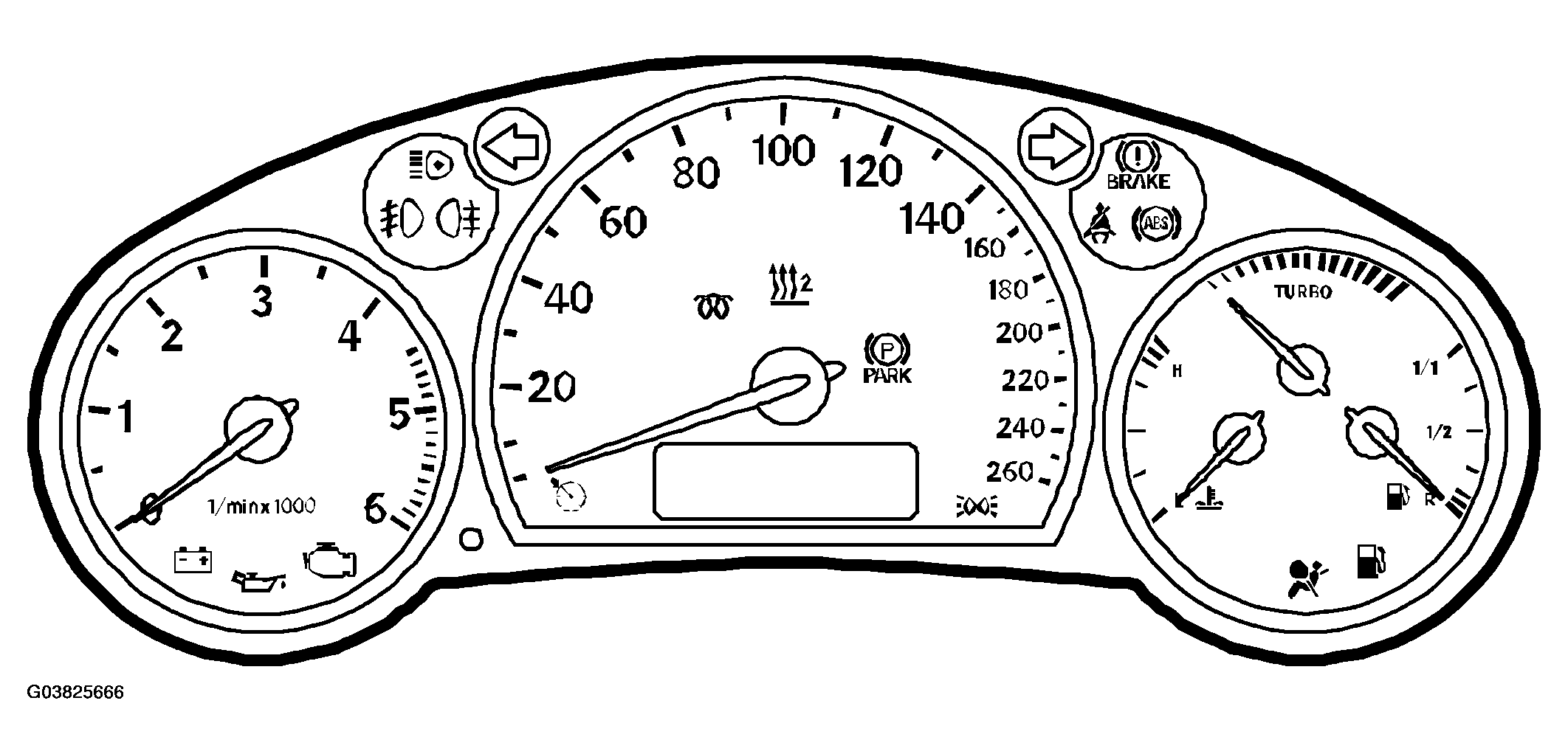

Fig 1: Identifying Main Instrument Unit
Courtesy of SAAB-SCANIA OF AMERICA, INC.
MAIN INSTRUMENT UNIT SPECIFICATION
Number of pins
12
Power supply +30
Pin no. 3
Power supply +15
Pin no. 2
Ground
Pin no. 4
I-bus
Pin no. 7
I-bus
Pin no. 8
Courtesy of SAAB-SCANIA OF AMERICA, INC.
