Saab
>>
2005
>>
9-3 Linear, 2D Convertible, Automatic
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Driver Information, Main Instrument Unit & SID - 9-3
>>
Component location
>>
SID control panel (737)
SID control panel (737)
Location:
On instrument panel next to main instrument unit

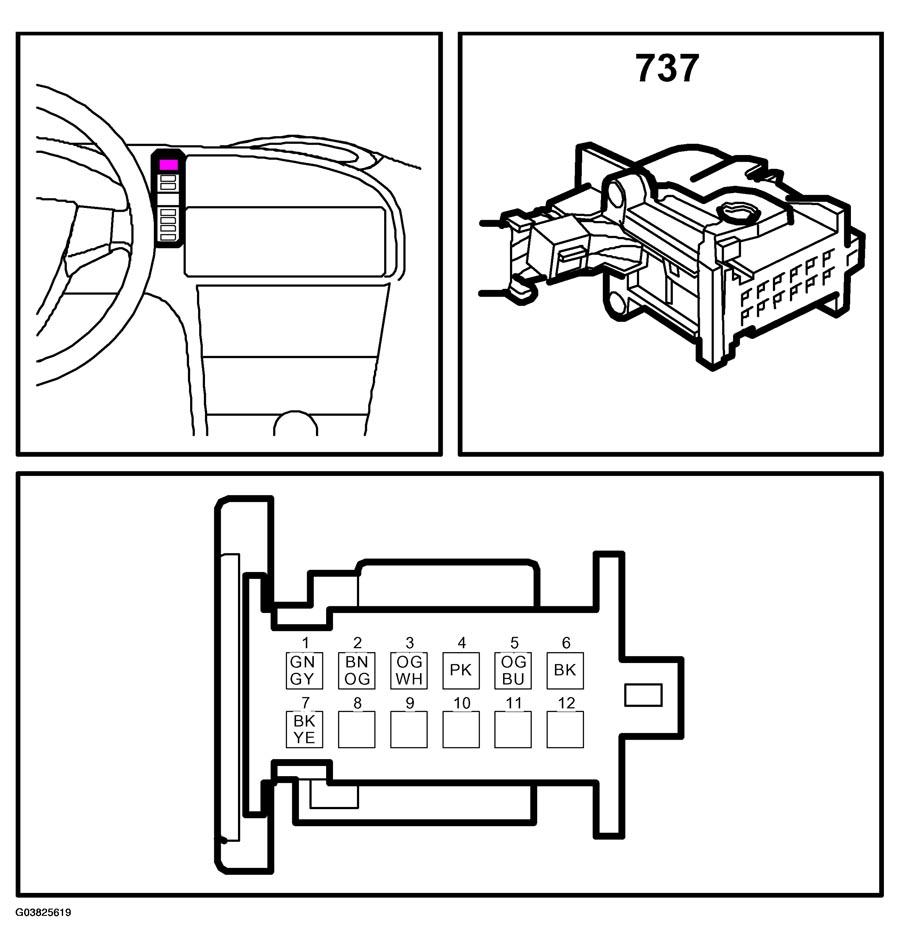

Fig 1: Identifying SID Control Panel (737) Connector
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
