Instrument panel electrical Center 22 (IPEC): Fuses
The electrical center can contain a greater number of fuses than those listed below. See CIRCUIT PROTECTION DEVICES . In such cases, these are not connected to a wiring harness.

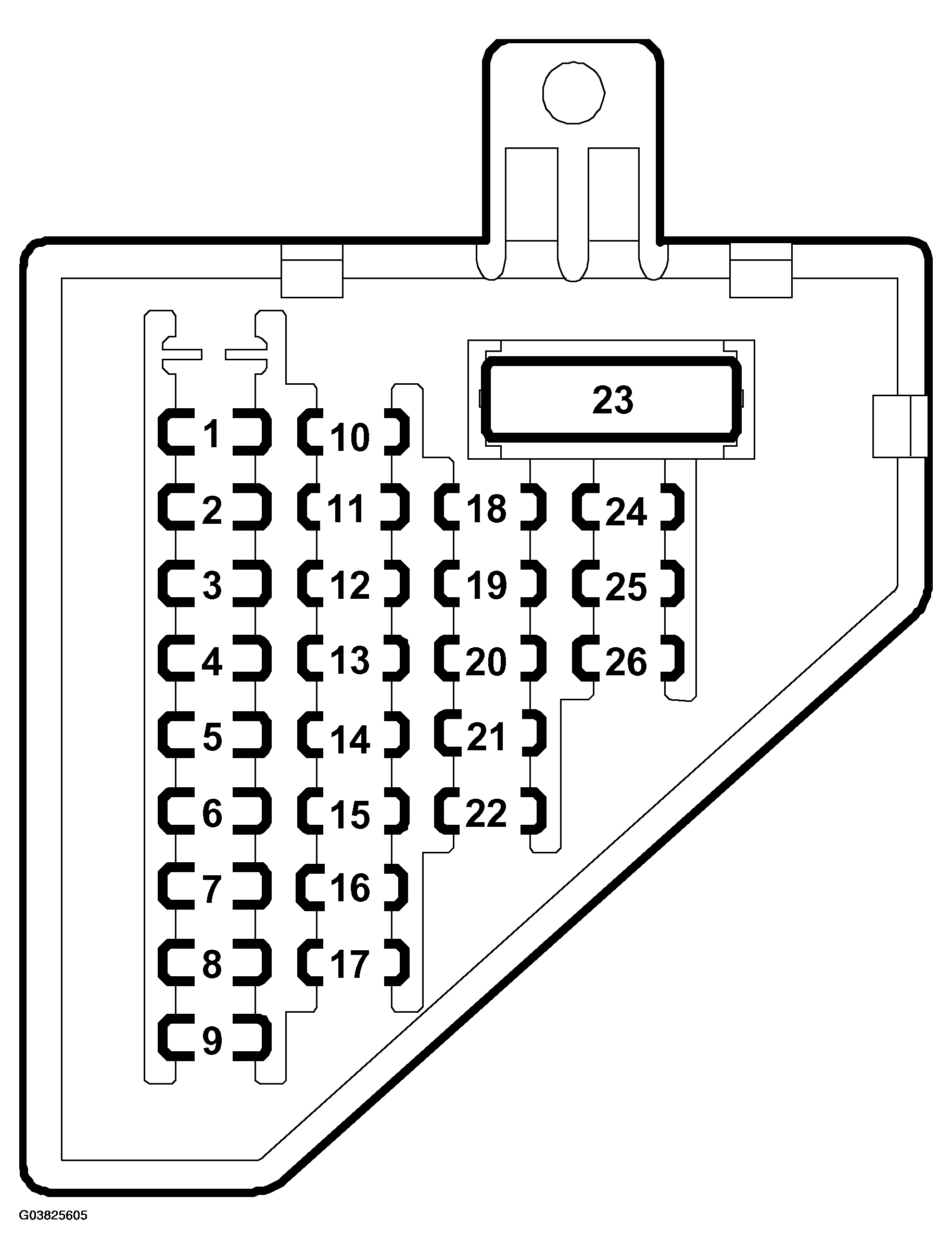

FUSE IDENTIFICATION AND SPECIFICATION (1)
| No. | Amp. | Type | Function | ||
|---|---|---|---|---|---|
| 1 | 15 | +30 | Steering column lock | ||
| 2 | 5 | +30 | Ignition switch Column Integration Module |
||
| 3 | 10 | +30 | CD player/changer, front SID Connection, cellular phone |
||
| 4 | 10 | +30 | Main instrument display panel ACC MCC |
||
| 5 | 7.5 | +30 | Control module, front doors Shift Lever Module |
||
| 6 | 7.5 | +30 | Brake light switch | ||
| 7 | 20 | +30 | BCM Fuel filler flap |
||
| 8 | 30 | +30 | Passenger Door Module, front door | ||
| 9 | 10 | +30 | BCM | ||
| 10 | 30 | +54 | 12V socket, cabin, including lighting Connection, trailer | ||
| 11 | 15 | +30 | Data link connector | ||
| 12 | 15 | +30 | Interior lighting Glove box lighting |
||
| 13 | 30 | Accessories | |||
| 14 | 20 | +30 | Main unit, audio Control panel, infotainment |
||
| 15 | 30 | +30 | Driver Door Module | ||
| 16 | - | ||||
| 17 | 7.5 | +15 | Connection, electronic road tolls | ||
| 18 | 7.5 | +54 | MCC | ||
| 19 | - | ||||
| 20 | 7.5 | +15 | Switch, headlamp beam length adjustment | ||
| 21 | 7.5 | +15 | Switch, clutch, cruise control Switch, brake, cruise control Connection, cellular phone MCC |
||
| 22 | 30 | +15 | Cigarette lighter | ||
| 23 | 40 maxi | +30 | Ventilation fan | ||
| 24 | 7.5 | +30 | Airbag | ||
| 25 | - | ||||
| 26 | 5 | +15 | Yaw sensor | ||
| 27 | - | ||||
|
|||||
