Connected components

CONNECTED COMPONENTS

	Via CRIMP J80, INSTRUMENT HARNESS
305	LED, anti-theft alarm
355F	CD player/changer, front
375	Connection, mobile telephone
445	16-pin Data link connector, CARB
540	Main instrument unit
541	SID
658	Yaw sensor
684	Light switch module
703	Column Integration Module
736	Infotainment control panel

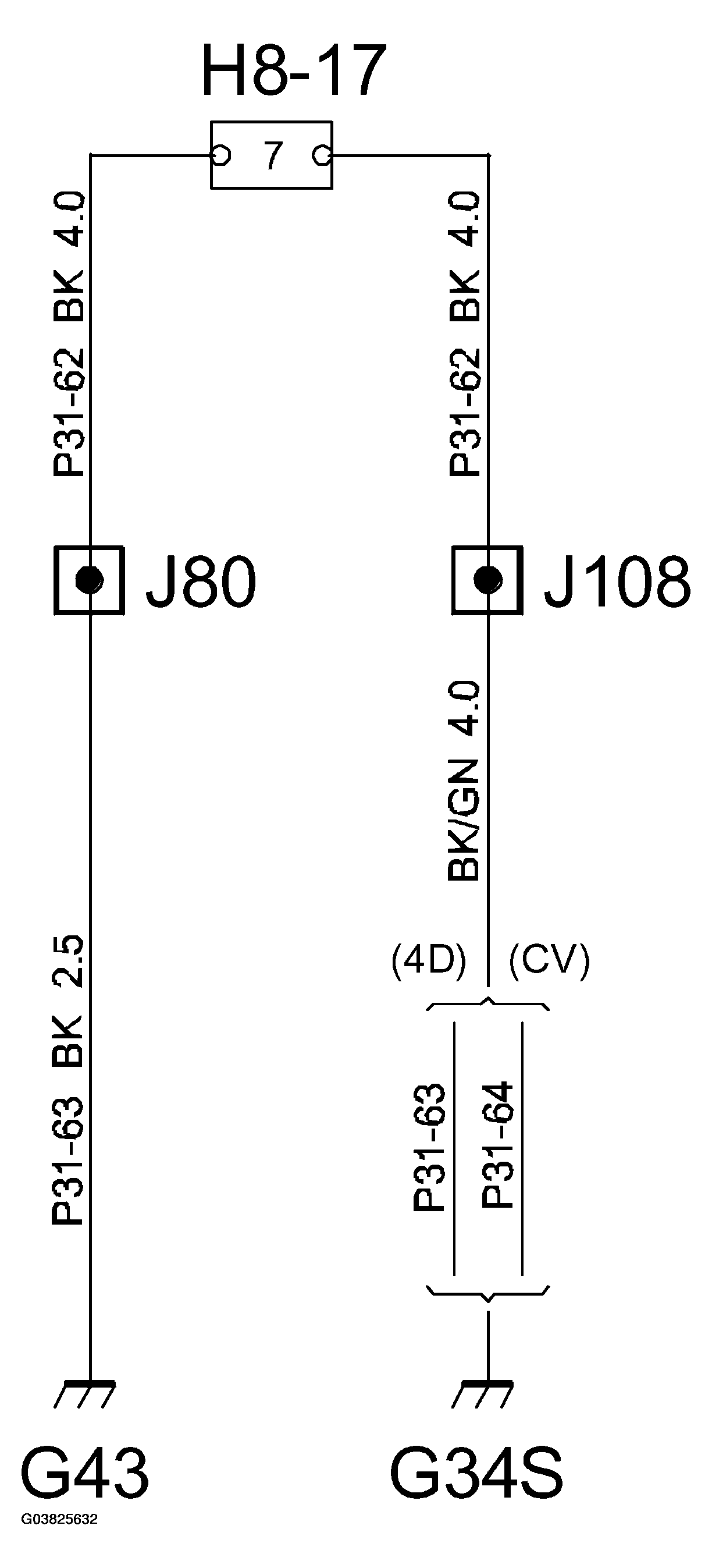

Fig 1: Identifying Grounding Point G43 Connection Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Crimp J80

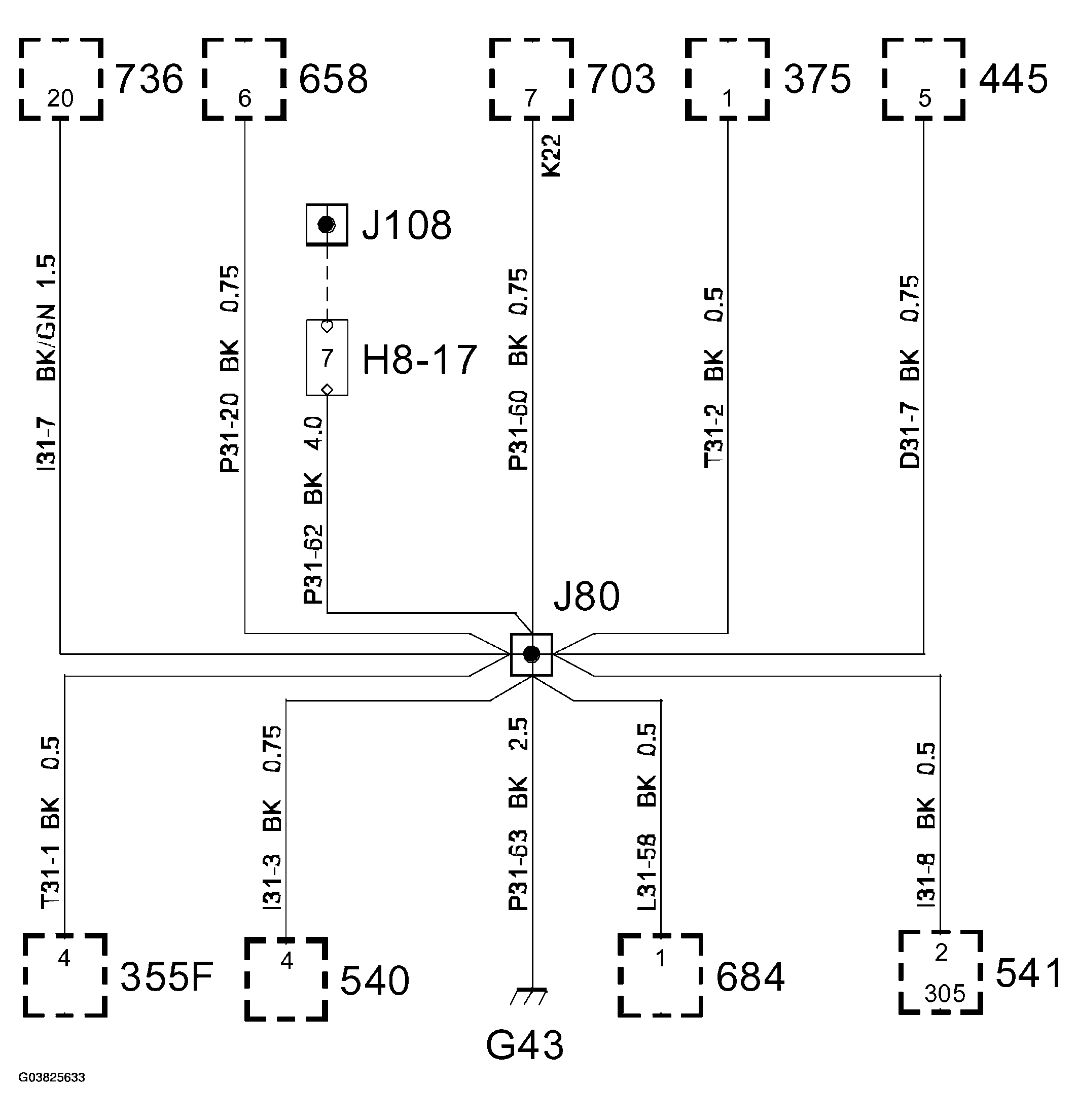

Fig 2: Identifying Crimp J80 Connection Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
