Fuse 4, dashboard electrical center 22: Notes

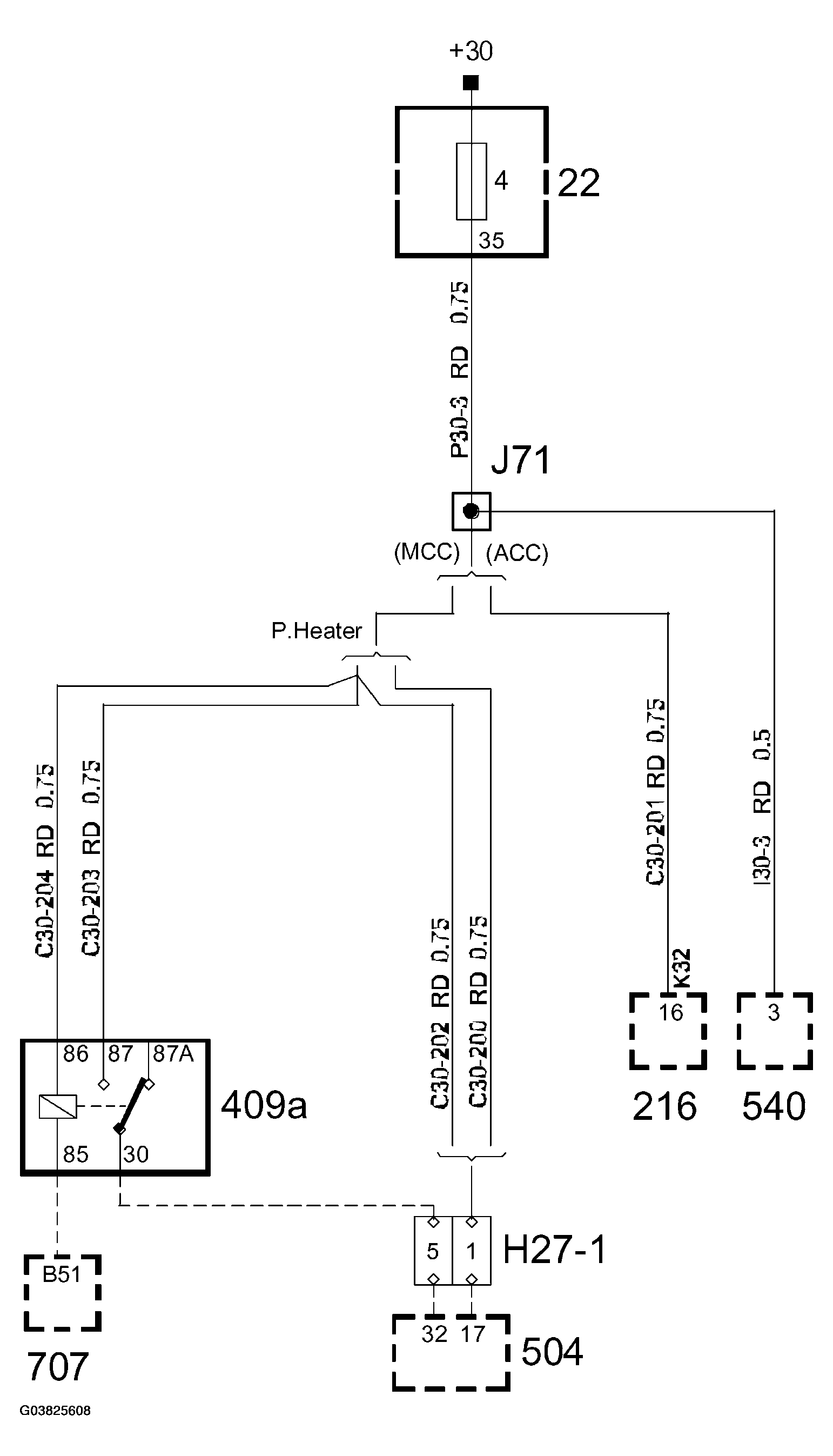

Fig 1: Identifying Fuse 4, Dashboard Electrical Center 22 Circuit

G03825608

Courtesy of SAAB-SCANIA OF AMERICA, INC.
