Crimp J80, instrument wiring harness: Notes

Location:

4D:  Approx. 50 mm from branching point to grounding point G34P/S towards RH front door

CV:  Approx. 20 mm from branching point to grounding point G34P/S towards RH seat

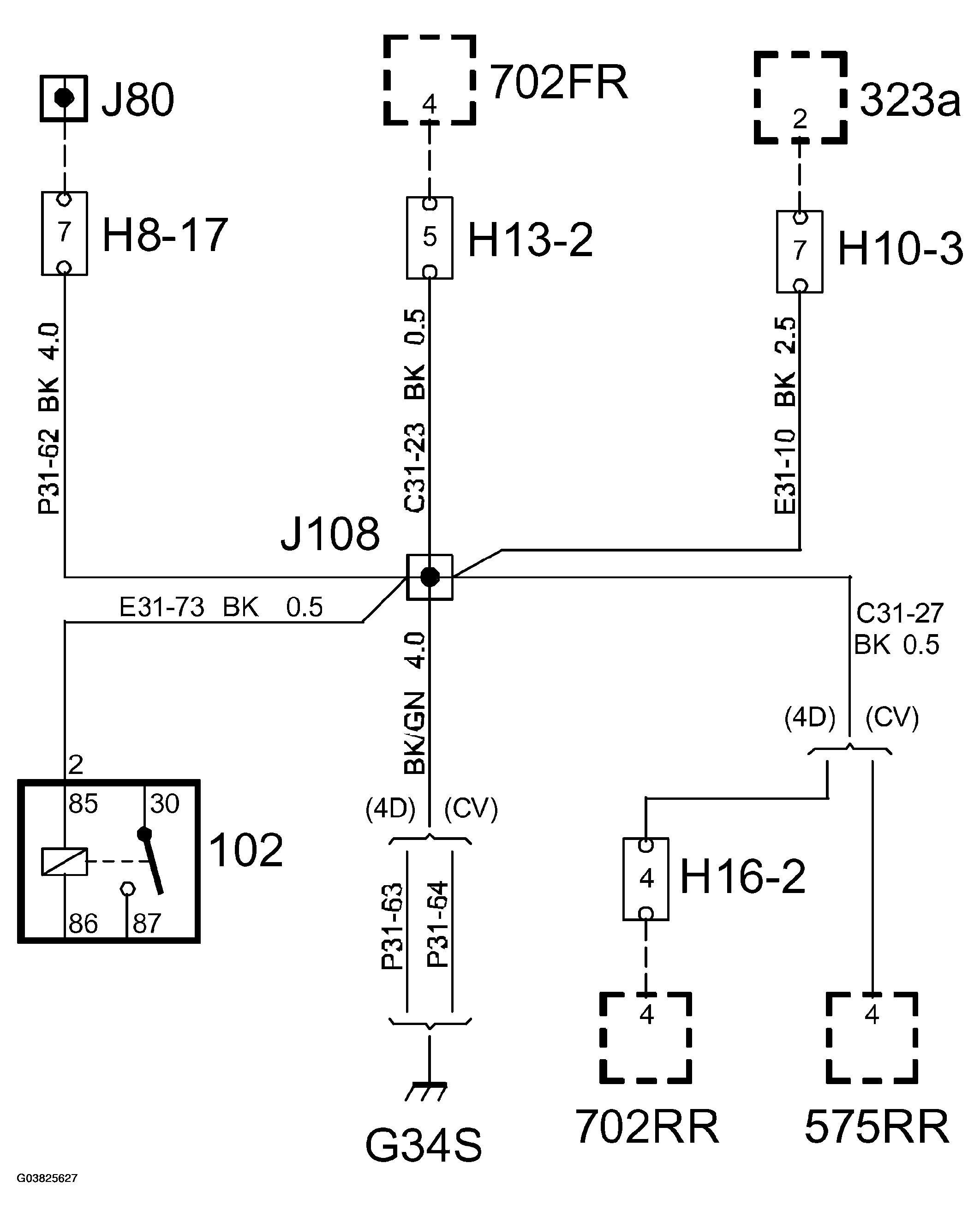

Fig 1: Identifying Crimp J80, Instrument Wiring Harness
G03825627Courtesy of SAAB-SCANIA OF AMERICA, INC.
