Connector H24-5 (EDC16)
Connector H24-5 (EDC16)
Location:
Grey connector in front of battery on side of left structural member

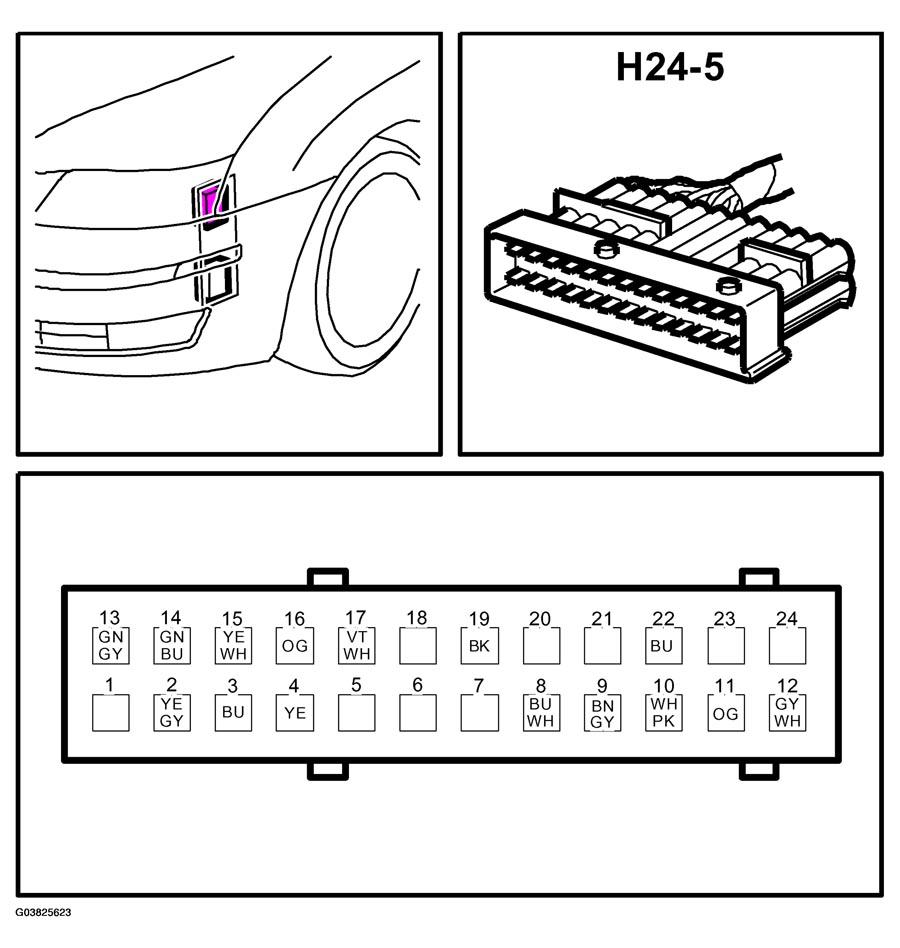

Fig 1: Identifying Connector H24-5 (EDC16)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
