Driver Information, Main Instrument Unit & SID - 9-3
>>
Component location
>>
Connector H24-2 (T8)
Connector H24-2 (T8)
Location:
Grey connector in front of battery on side of left structural member

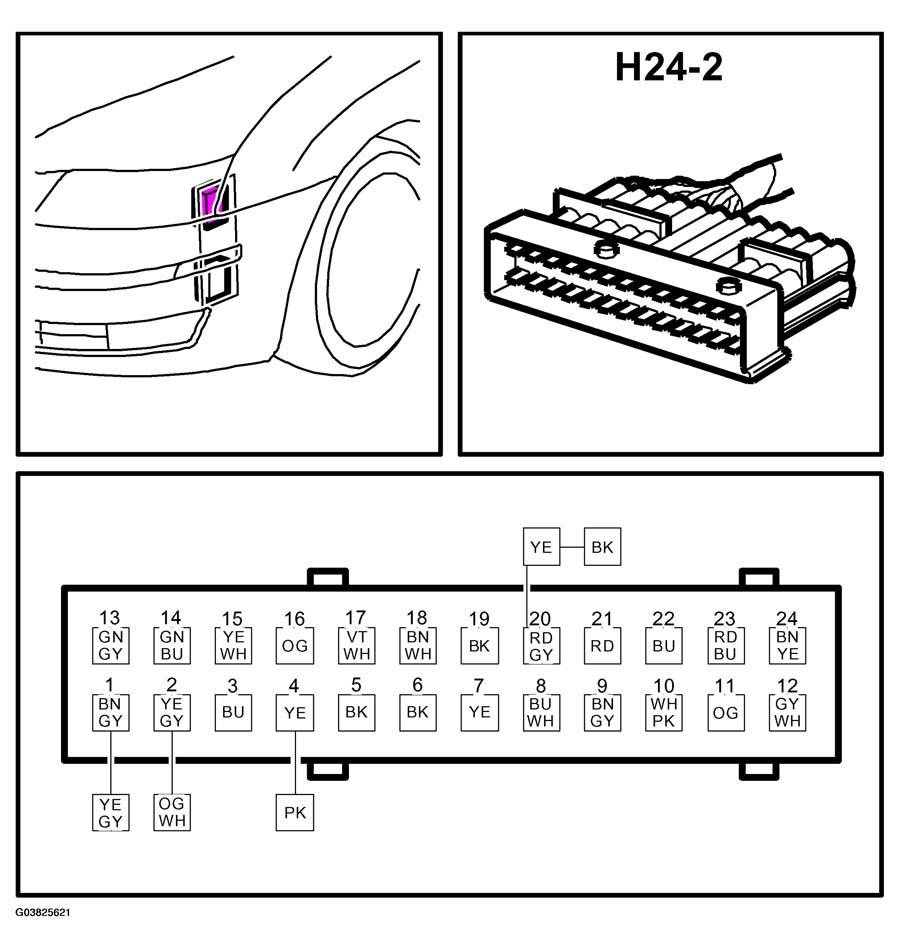

Fig 1: Identifying Connector H24-2 (T8)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
