To remove

  1. Press in the lugs and detach the sensor from the bumper shell.

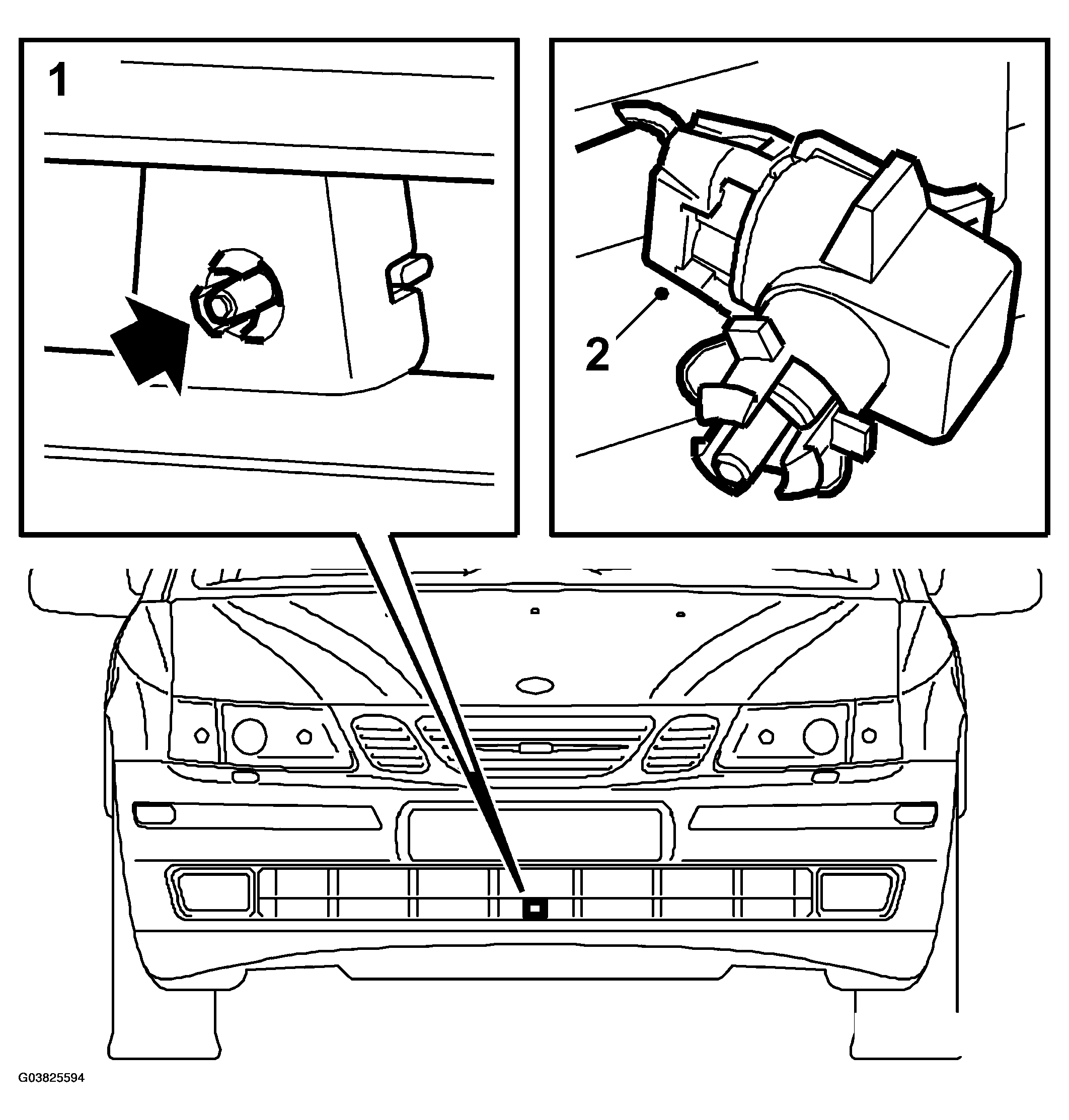

    Fig 1: Illustration For Step 1-2
    G03825594Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Pull the sensor out of the bumper shell and unplug the connector.
