To fit

  1. Fit the SID unit cover.

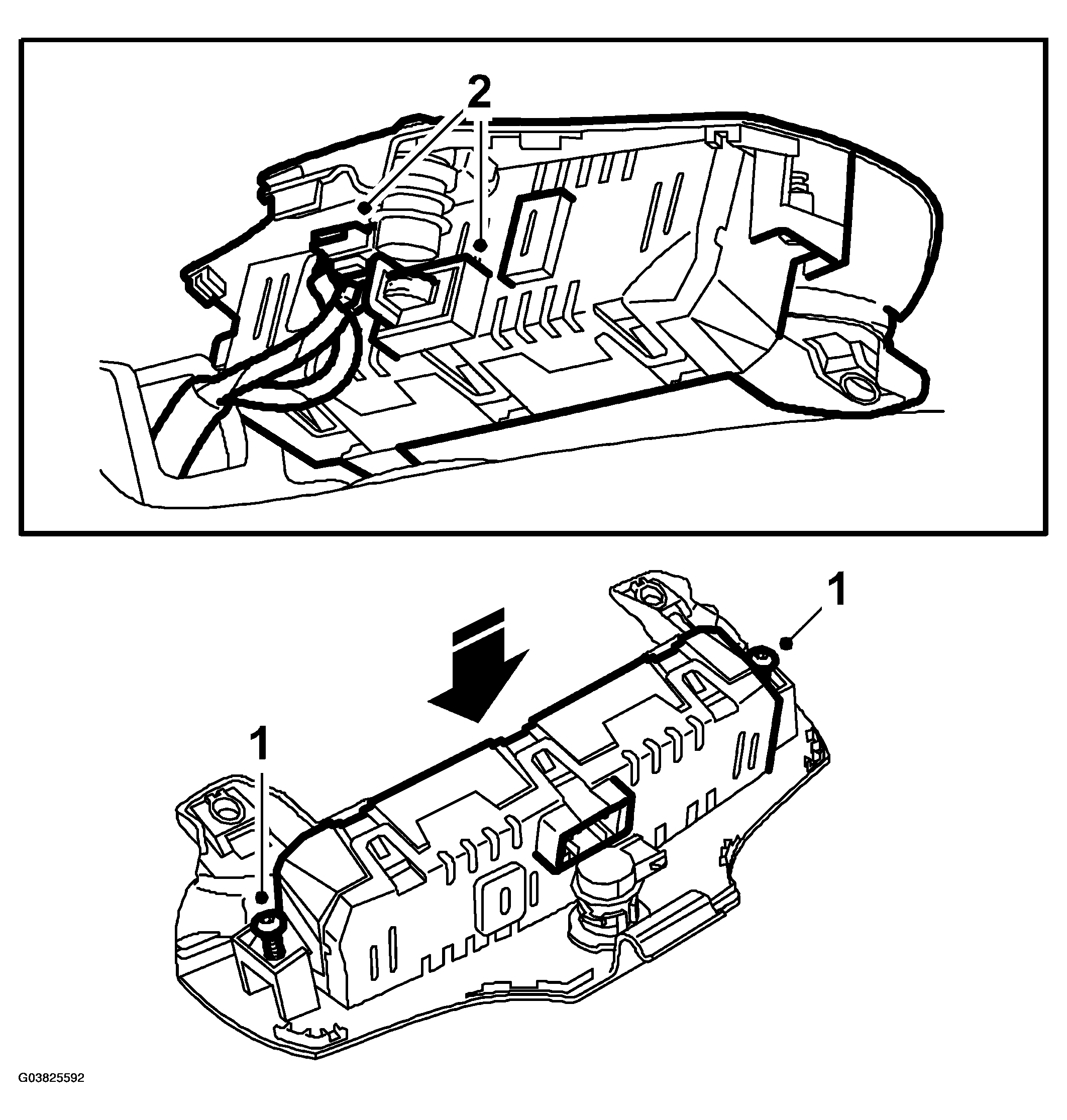

    Fig 1: Illustration For Step 1-2
    G03825592Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Plug in the connector.
  3. Fit the SID unit.

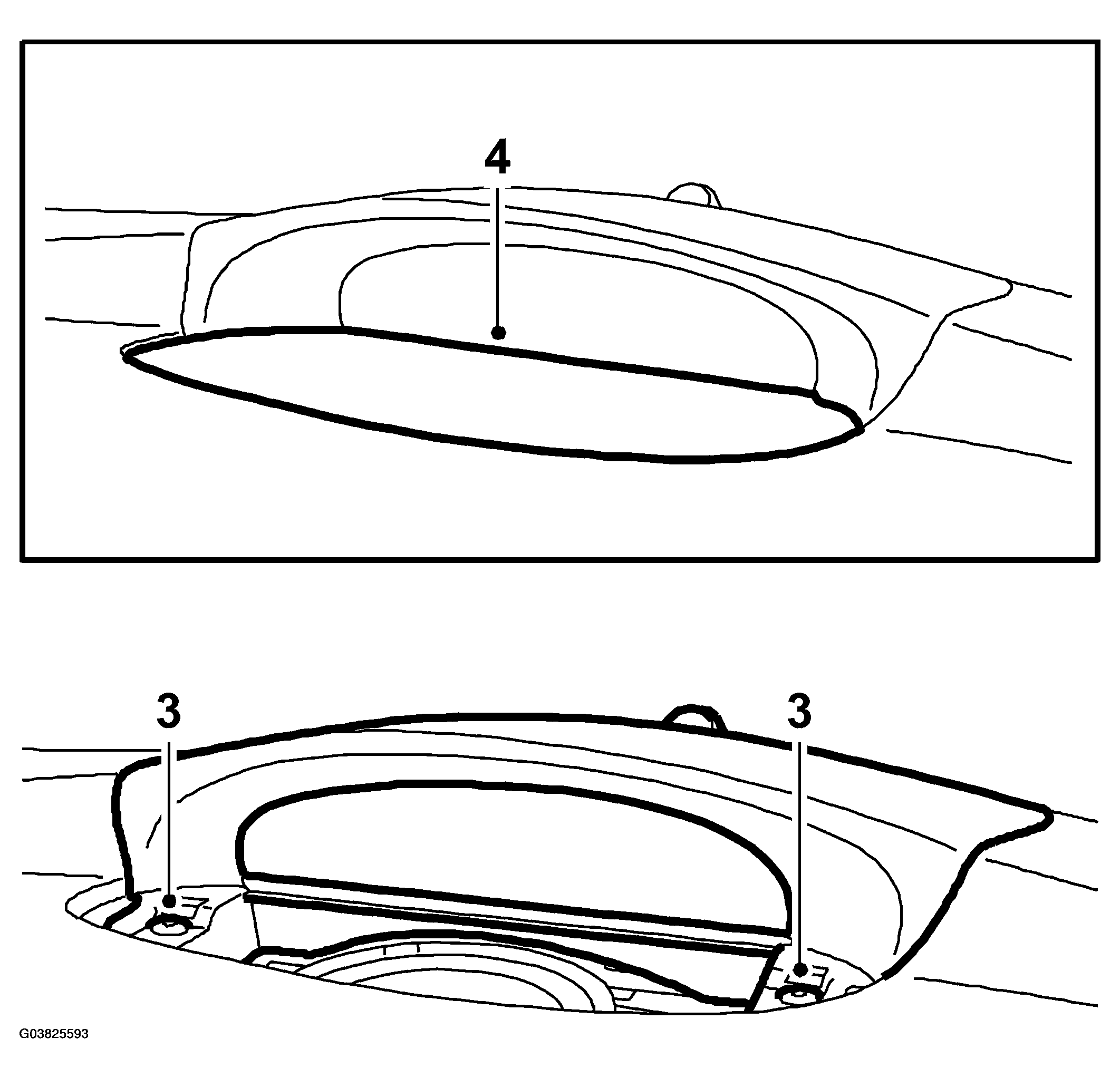

    Fig 2: Illustration For Step 3-4
    G03825593Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the speaker grille.
  5. Carry out procedure after replacement of control module. See ACTIONS WHEN REPLACING ELECTRICAL COMPONENTS  .
