To fit

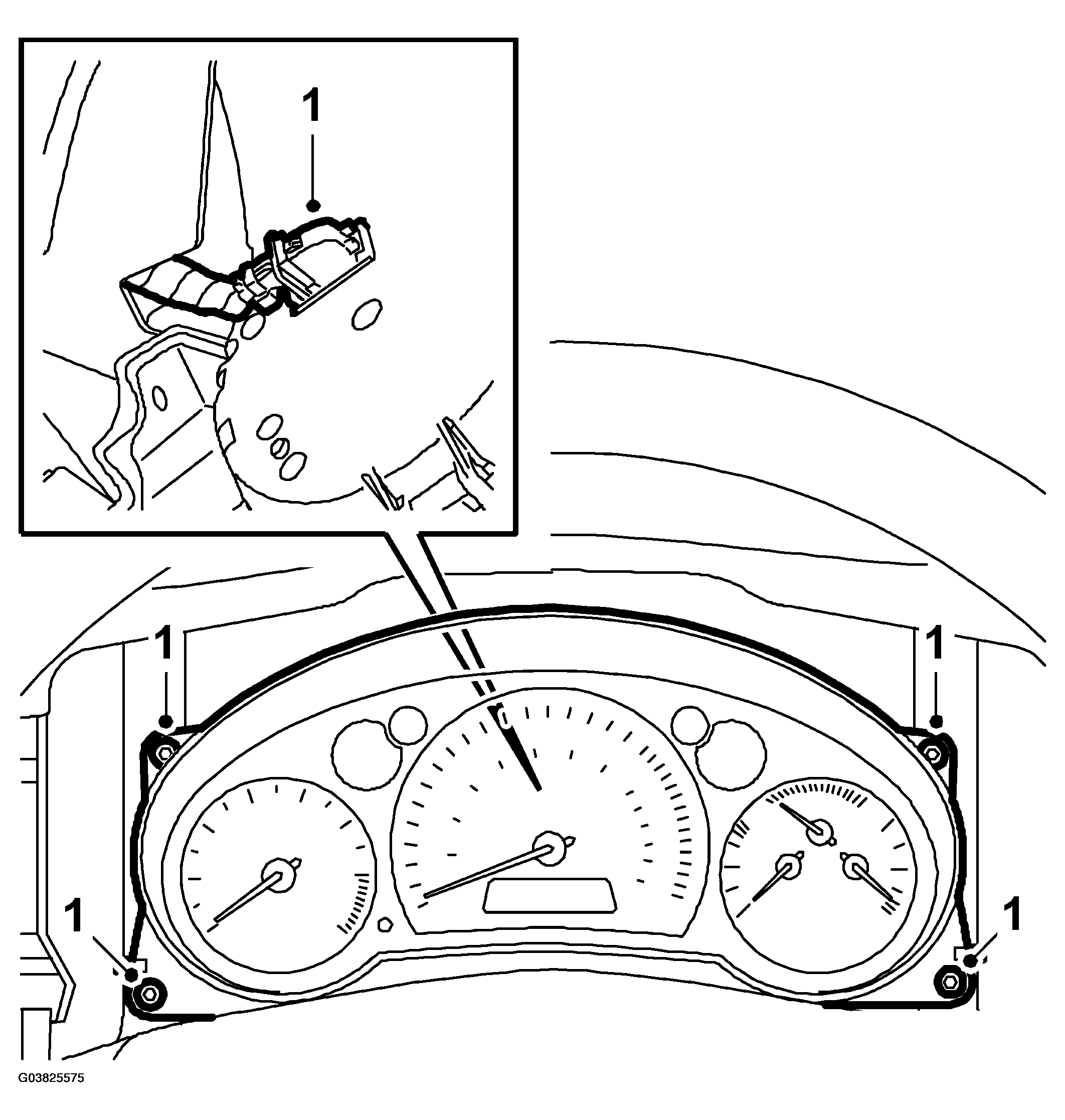

1. Connect and fit the main instrument unit.
   Fig 1: Illustration For Step 1

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

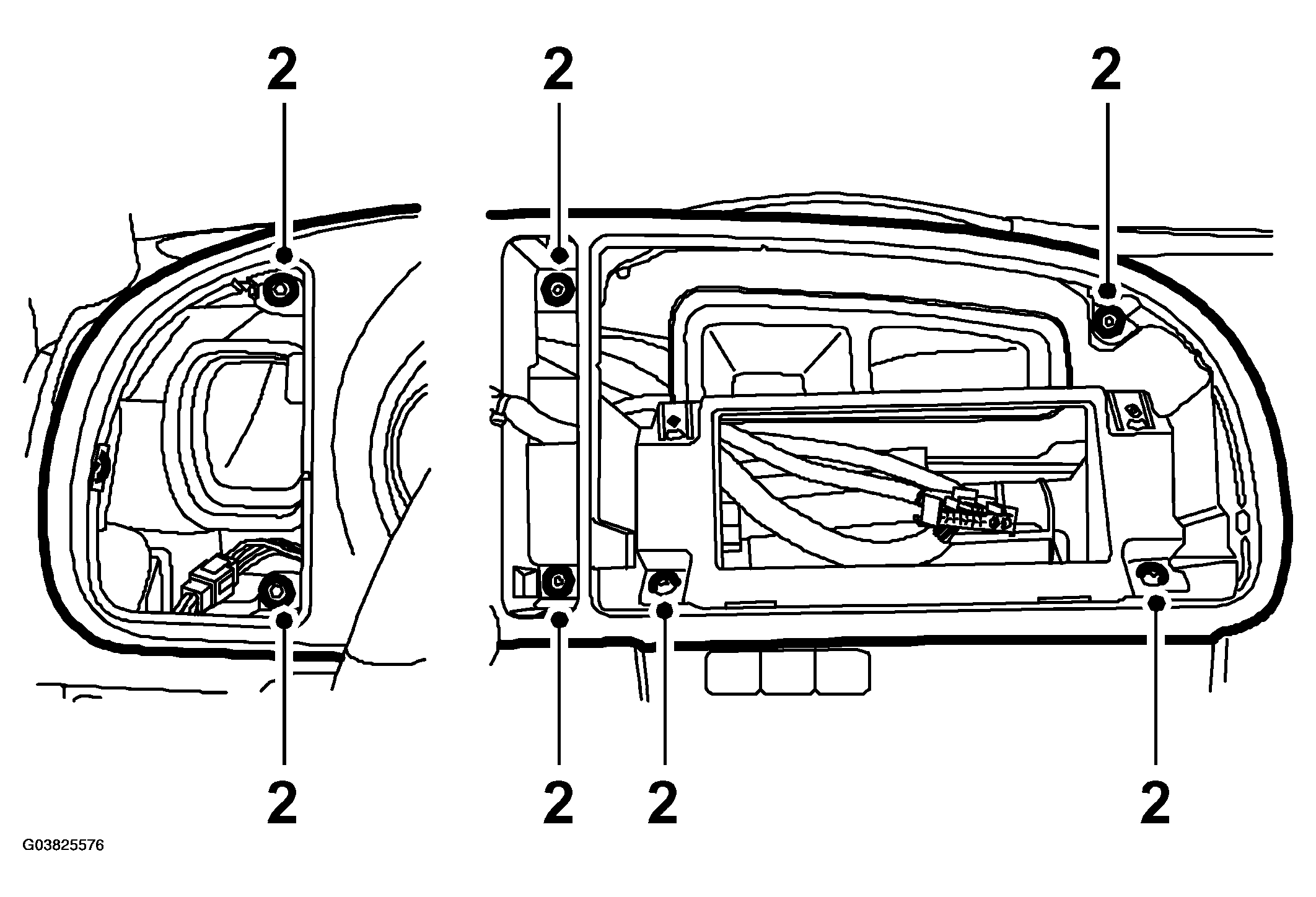

2. Fit the instrument plate.
   Fig 2: Illustration For Step 2

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
   IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .

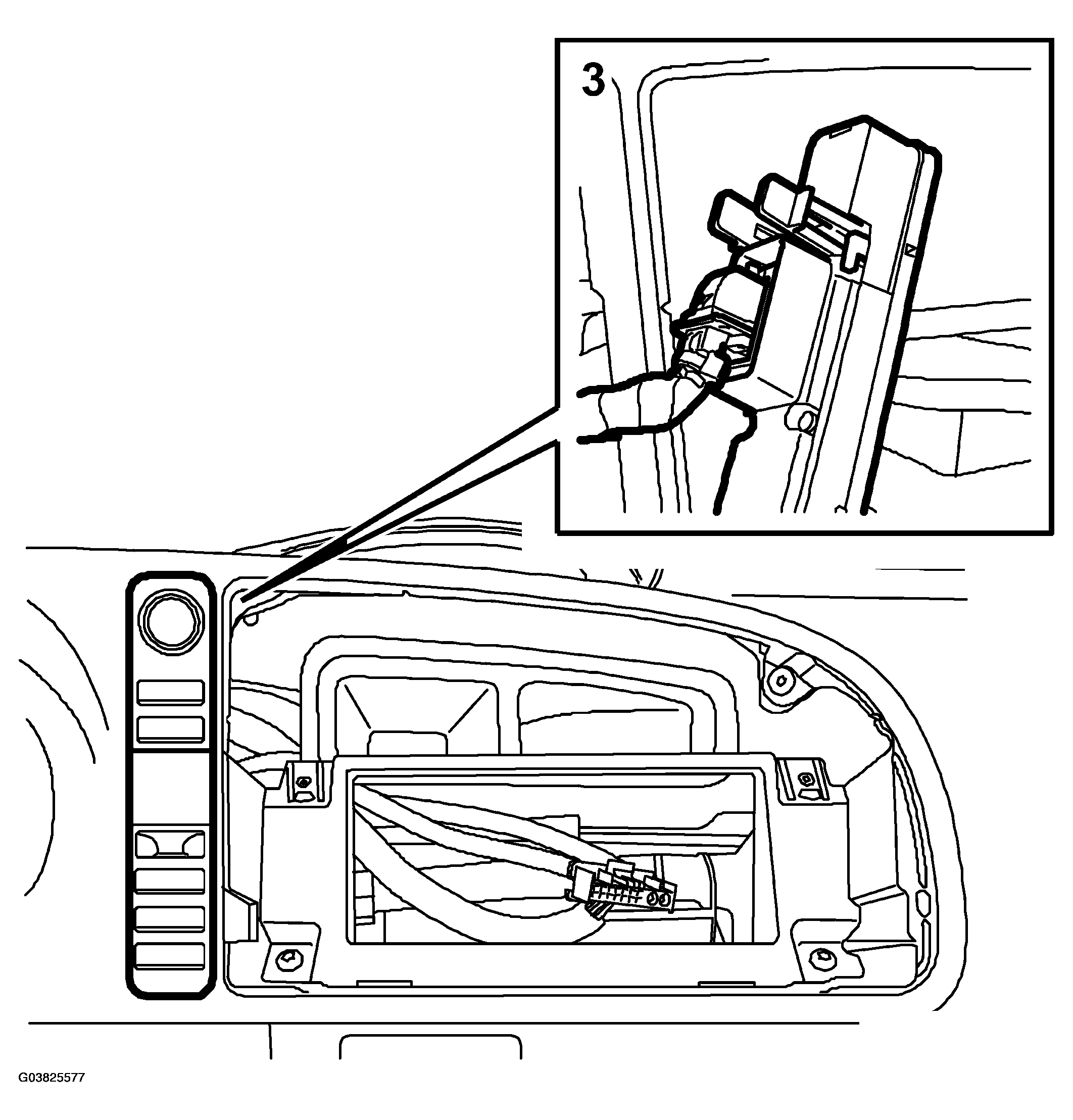

3. Connect SIDC and fit it by positioning the hook in the bottom and then pressing in the top.
   Fig 3: Illustration For Step 3

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

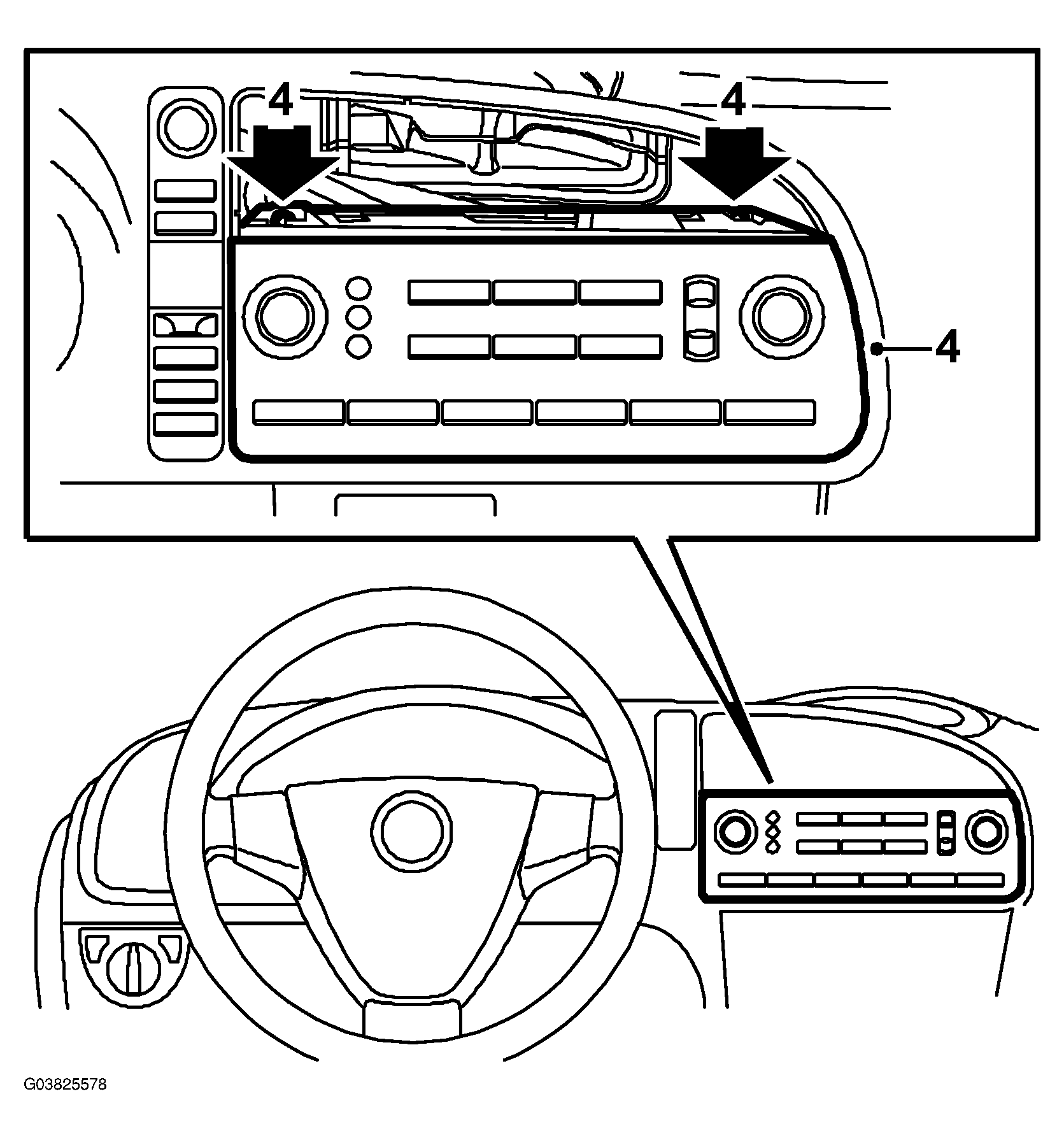

4. Fit the ICM unit.
   Fig 4: Illustration For Step 4

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

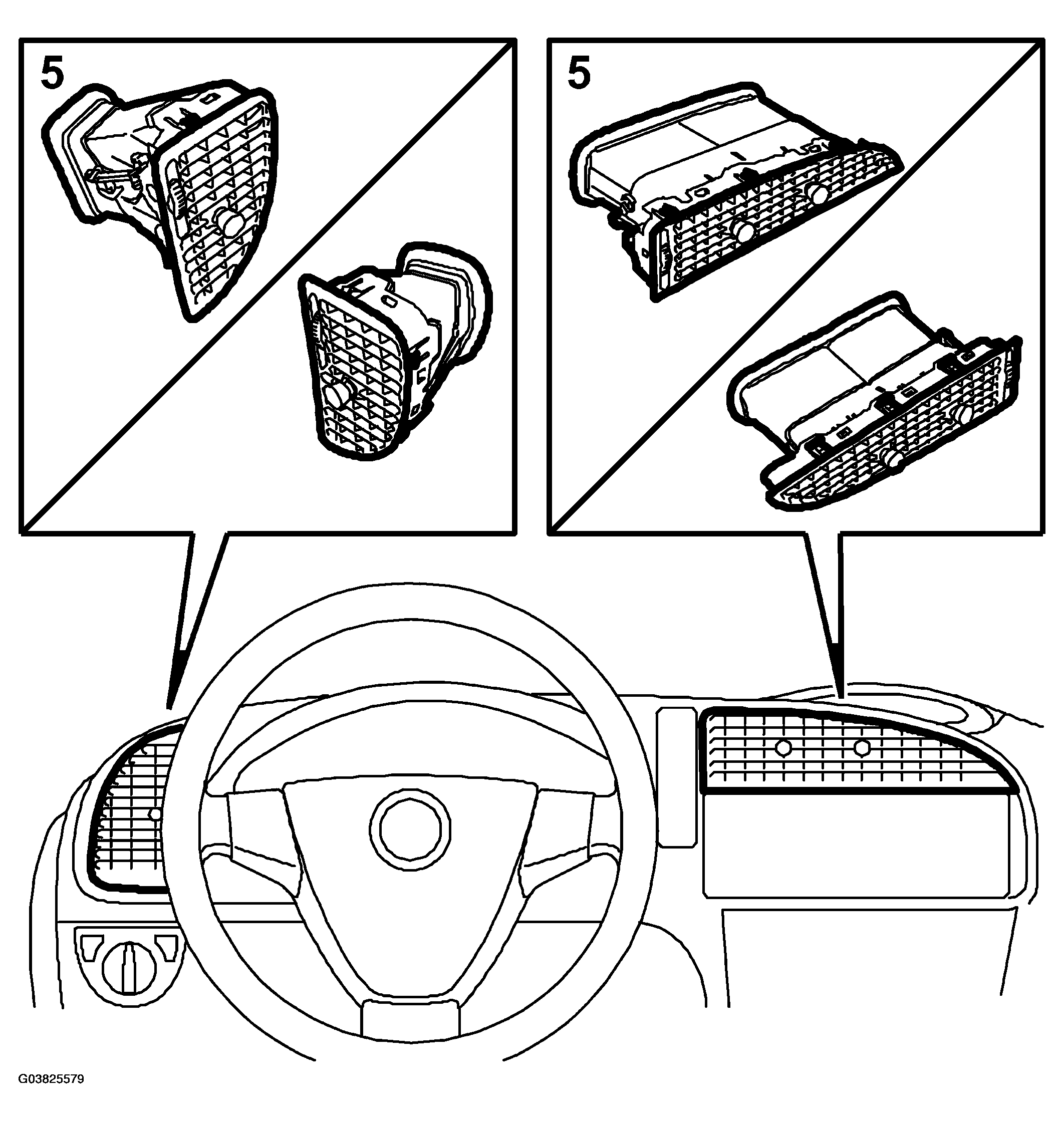

5. Position and fit the air vents.
   Fig 5: Illustration For Step 5

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

Carry out procedures after changing a control module.
