Heated Glass Element Switch: Testing and Inspection



INSPECTION

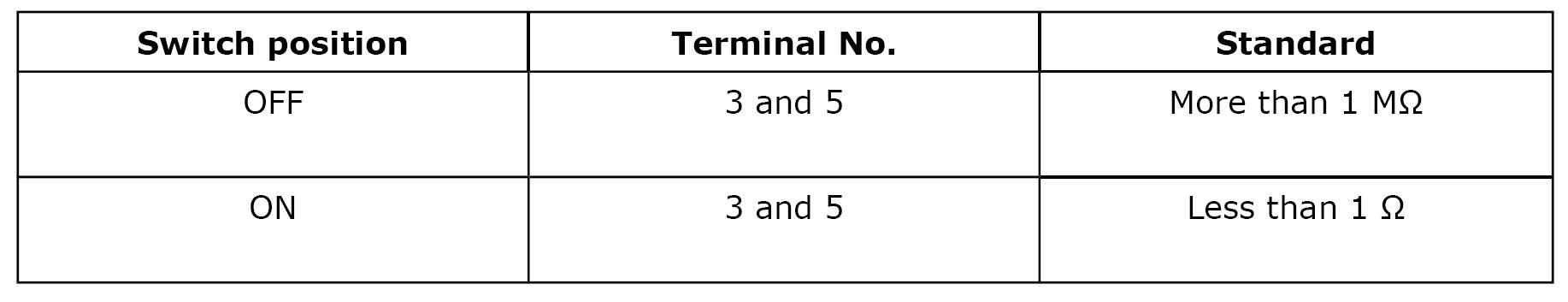

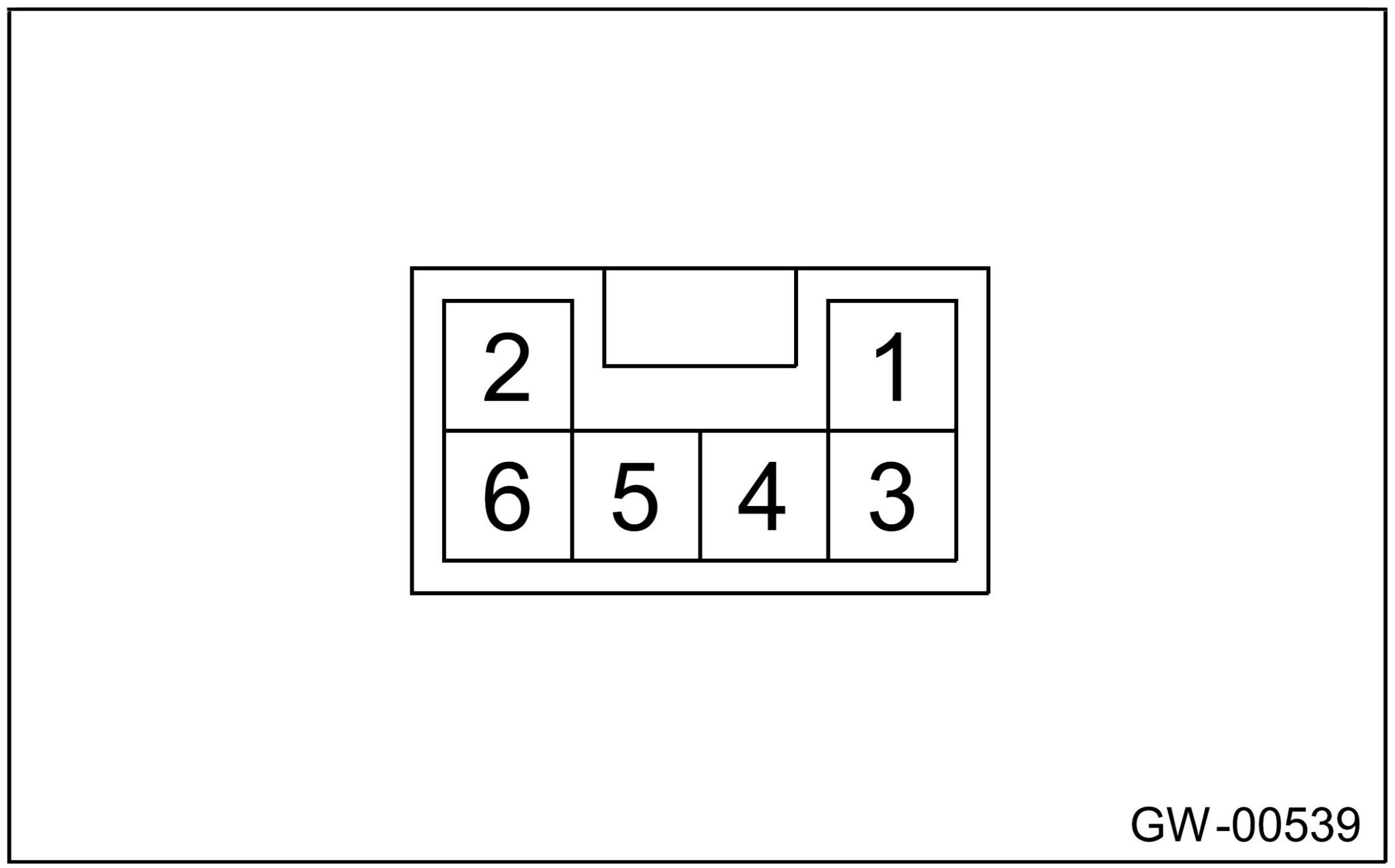

Move wiper deicer switch to each position and check continuity between terminals.










If NG, replace the switch.
