Home >> Saab >> 2005 >> 9-2X F4-2.5L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Restraints and Safety Systems >> Impact Sensor >> Locations

Impact Sensor: Locations

SRS Airbag:

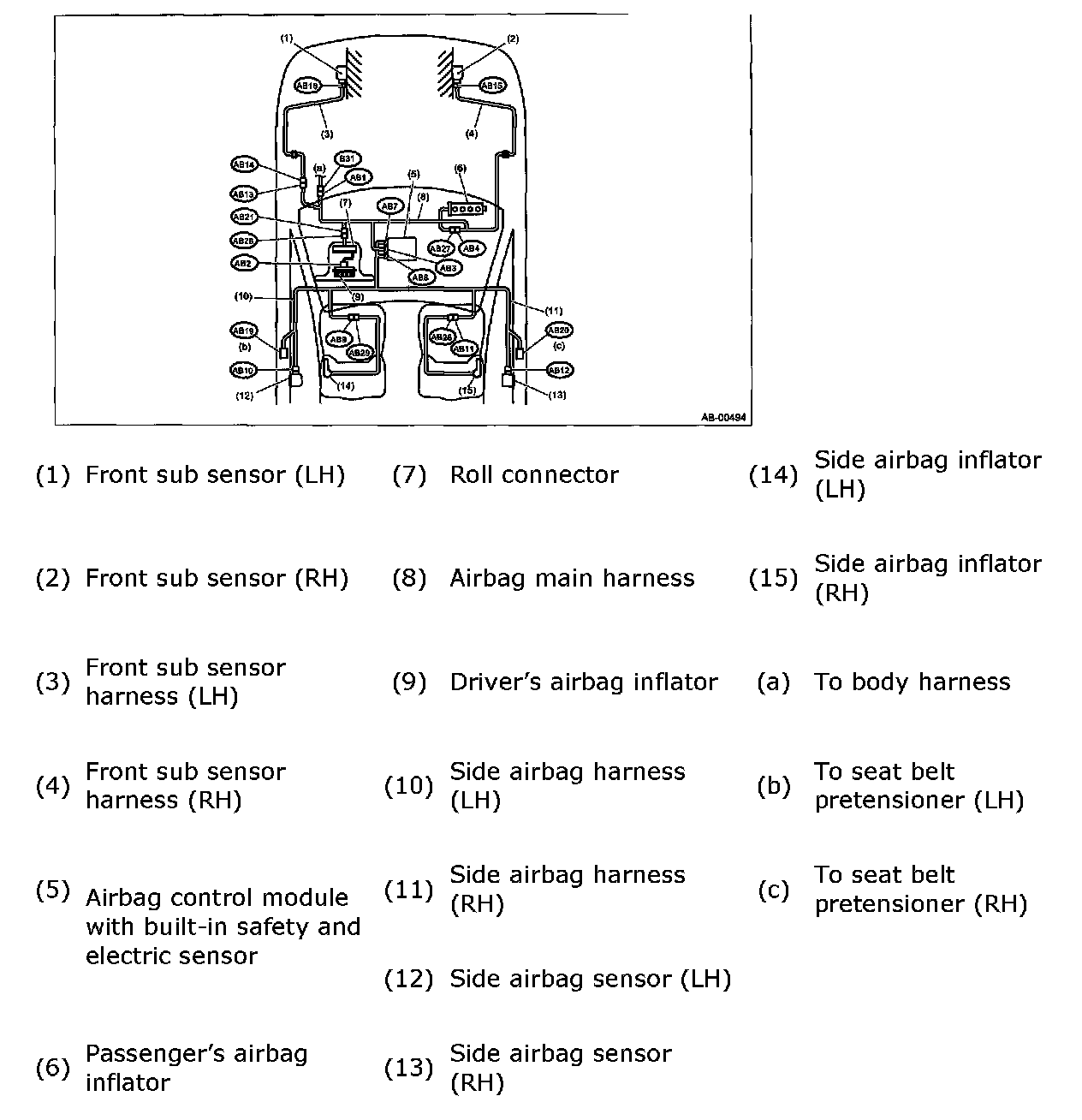

Electrical Component Location Part 1:

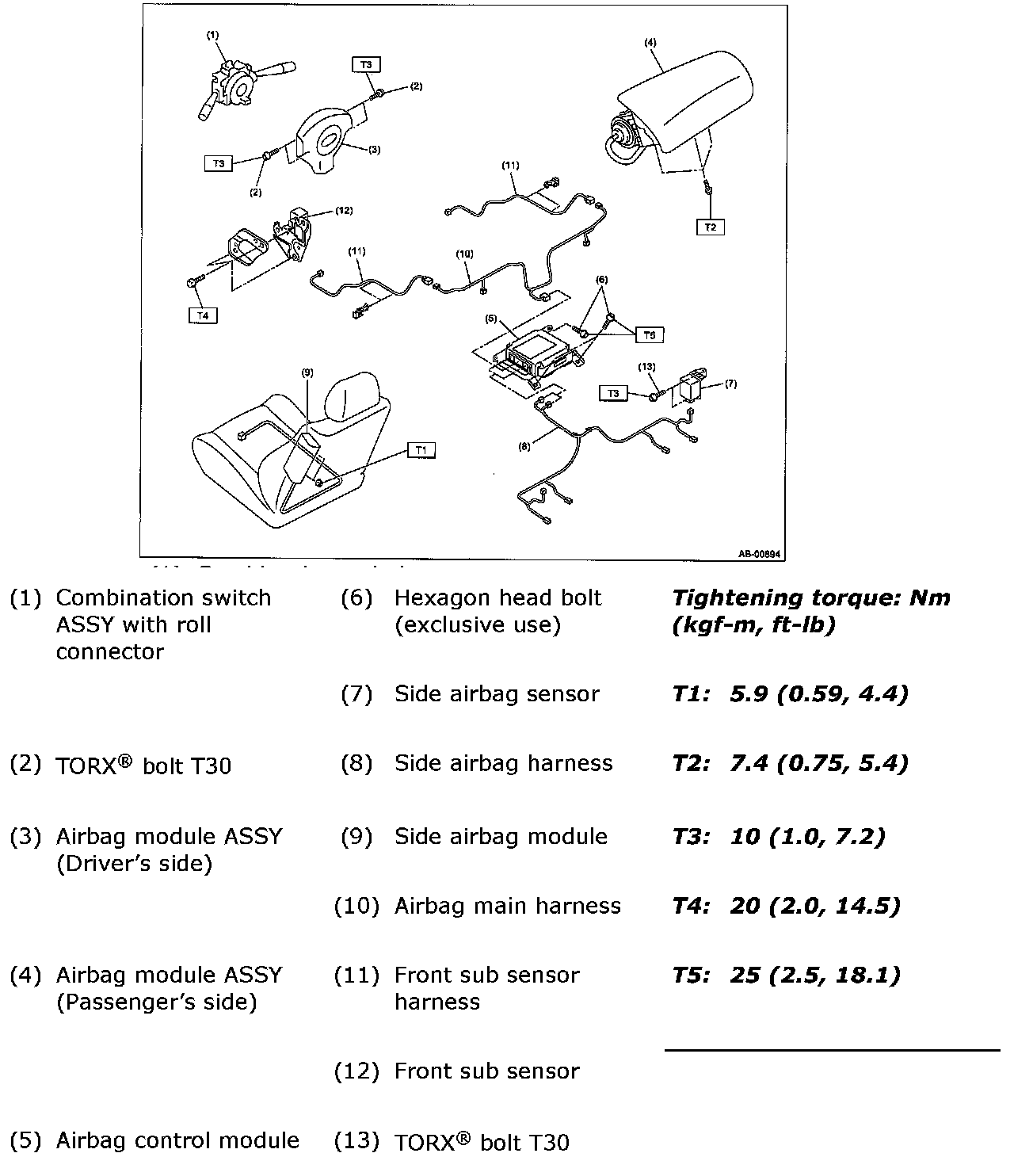

Electrical Component Location Part 2:
