Sunroof / Moonroof Switch: Service and Repair

Sunroof Switch

Removal
Disconnect the ground cable from battery.

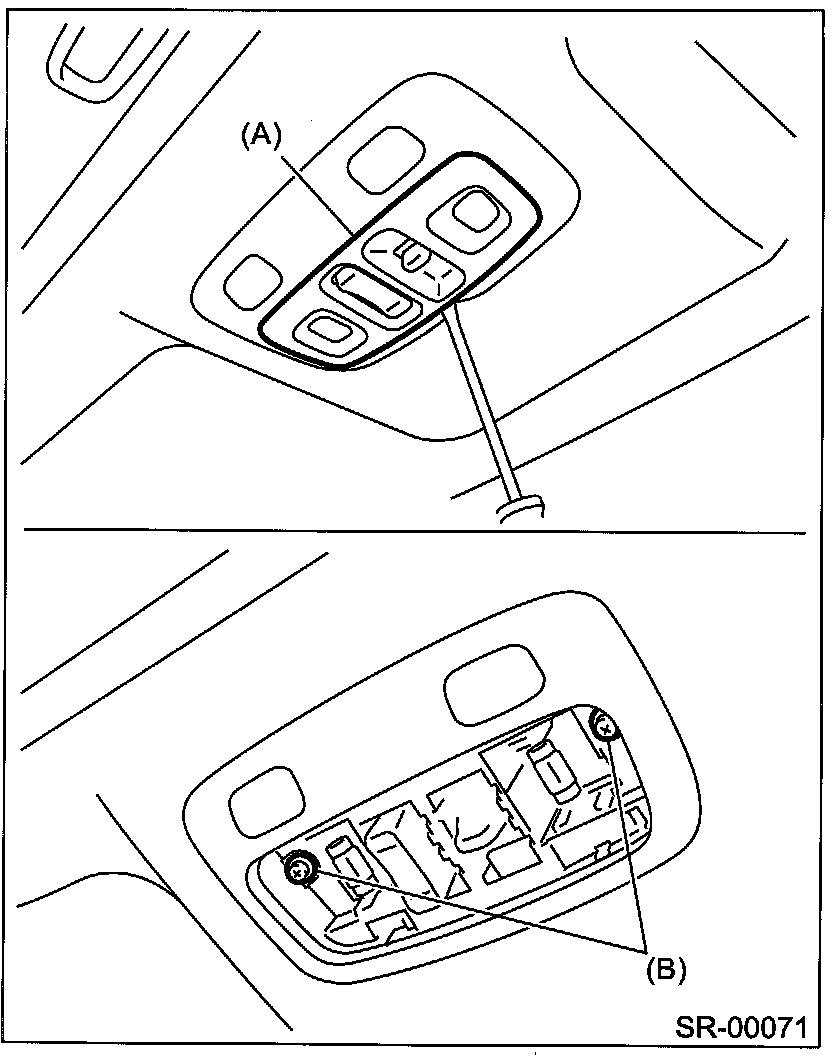

Remove the spot light lens (A) and sunroof switch mounting screw (B).







Disconnect the harness connectors and remove the sunroof switch.

Installation
Install in the reverse order of removal.
