To fit

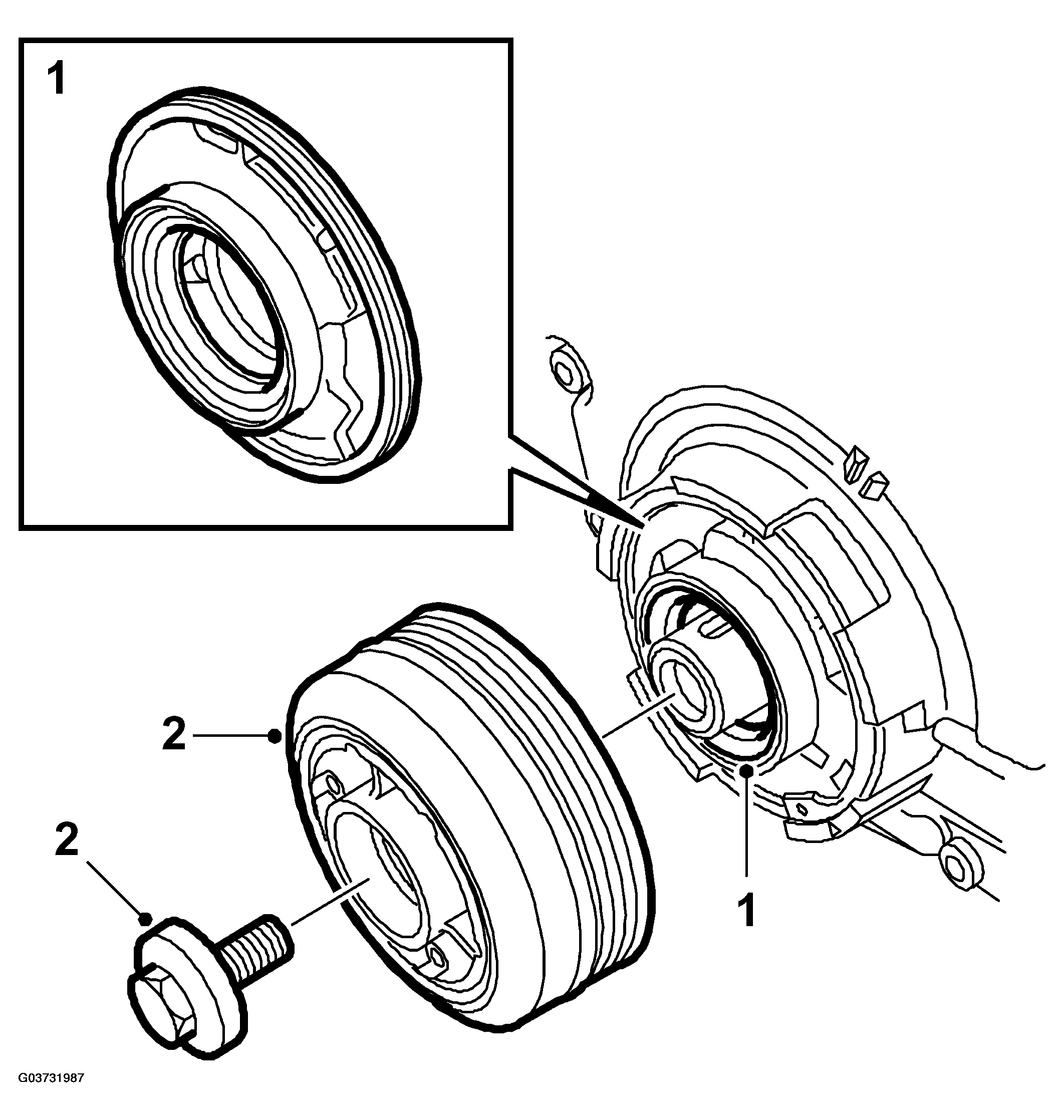

Fig 1: Illustration For Steps 1-2

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fit a new seal using FITTING TOOL FOR CRANKSHAFT SEAL, TIMING CHAIN END 83 94 876.
Fit the crankshaft pulley.
Tightening torque 175 Nm (130 lbf ft) .
Remove the flywheel locking segment and fit the flywheel cover plate.

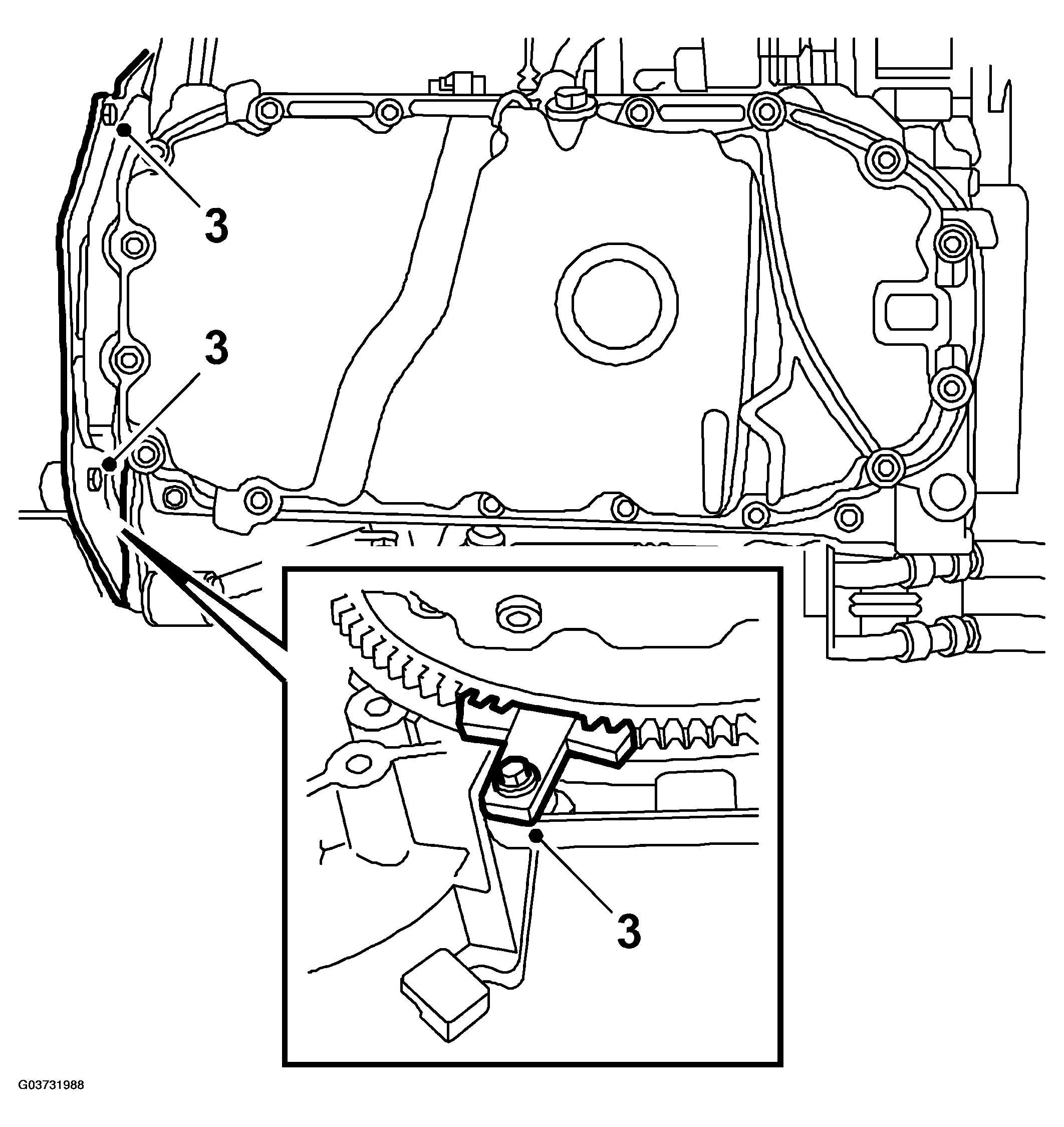

Fig 2: Illustration For Step 3
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Drive in the wedge to raise the engine.
Fit the drive belt, check its position on all the pulleys and remove the strain-relieving hexagon key.

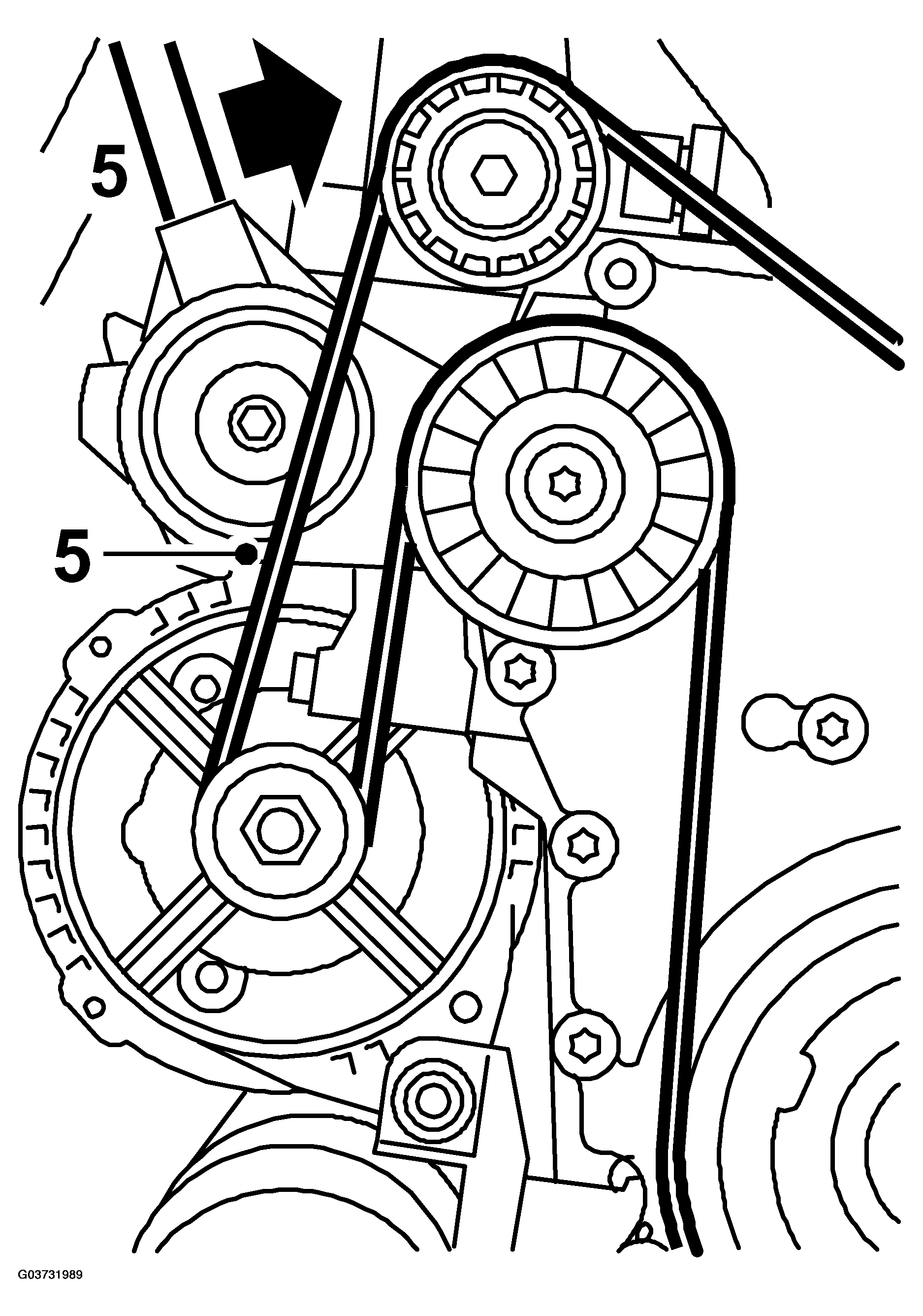

Fig 3: Illustration For Step 5
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the right-hand engine mounting.

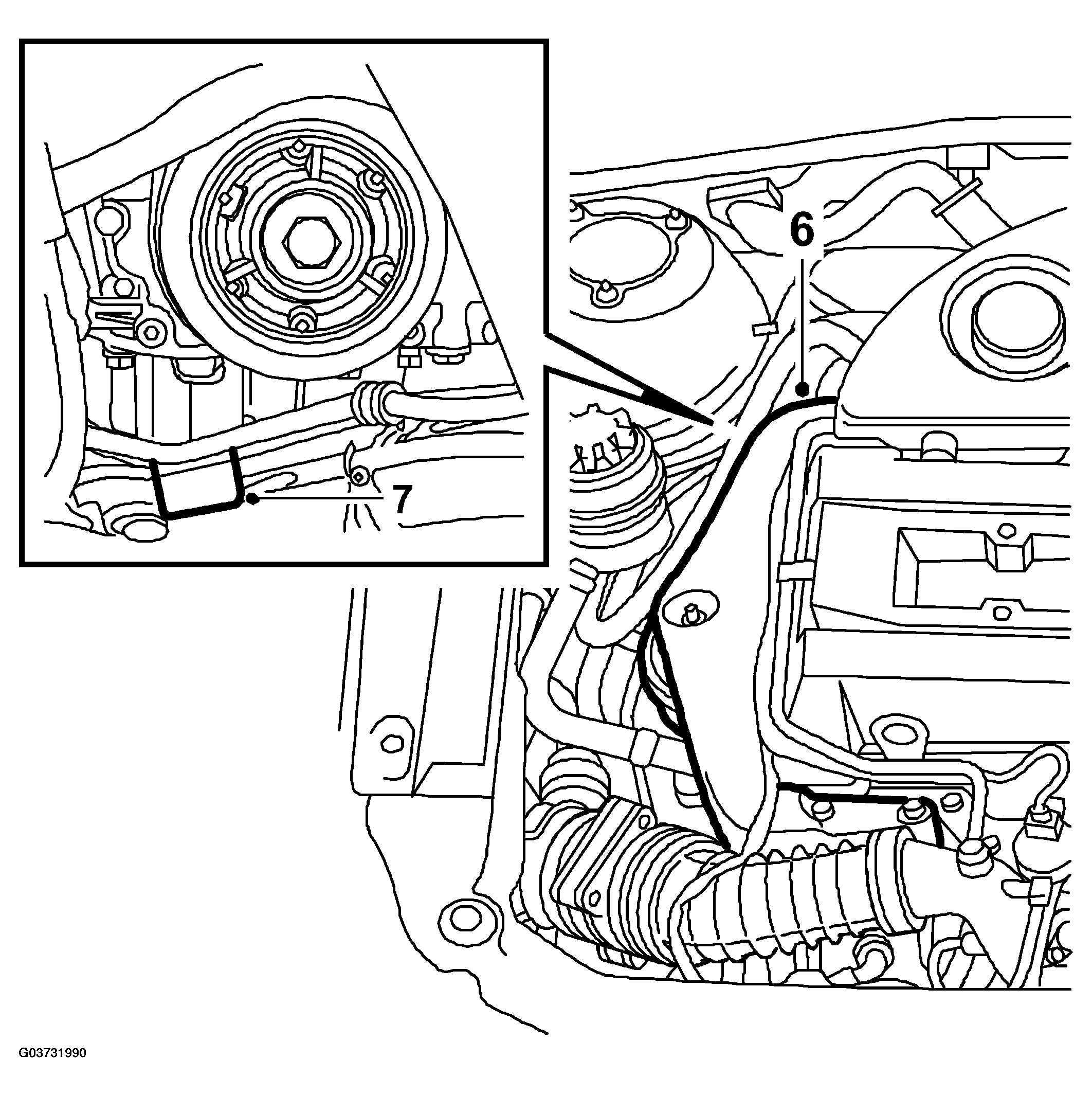

Fig 4: Illustration For Steps 6-7
Courtesy of SAAB-SCANIA OF AMERICA, INC.

Tightening torque 50 Nm (37 lbf ft) .
Remove the wedge and fit the power steering pump pipe.
Fit the belt circuit cover and the wheel.
Tightening torque: 110 Nm (80 lbf ft) .

IMPORTANT: The wheels must be hanging freely when the wheel bolts are tightened.
Start the engine and run it at idling speed for a while.
Switch off the engine and check that the belt is correctly positioned.
