To remove

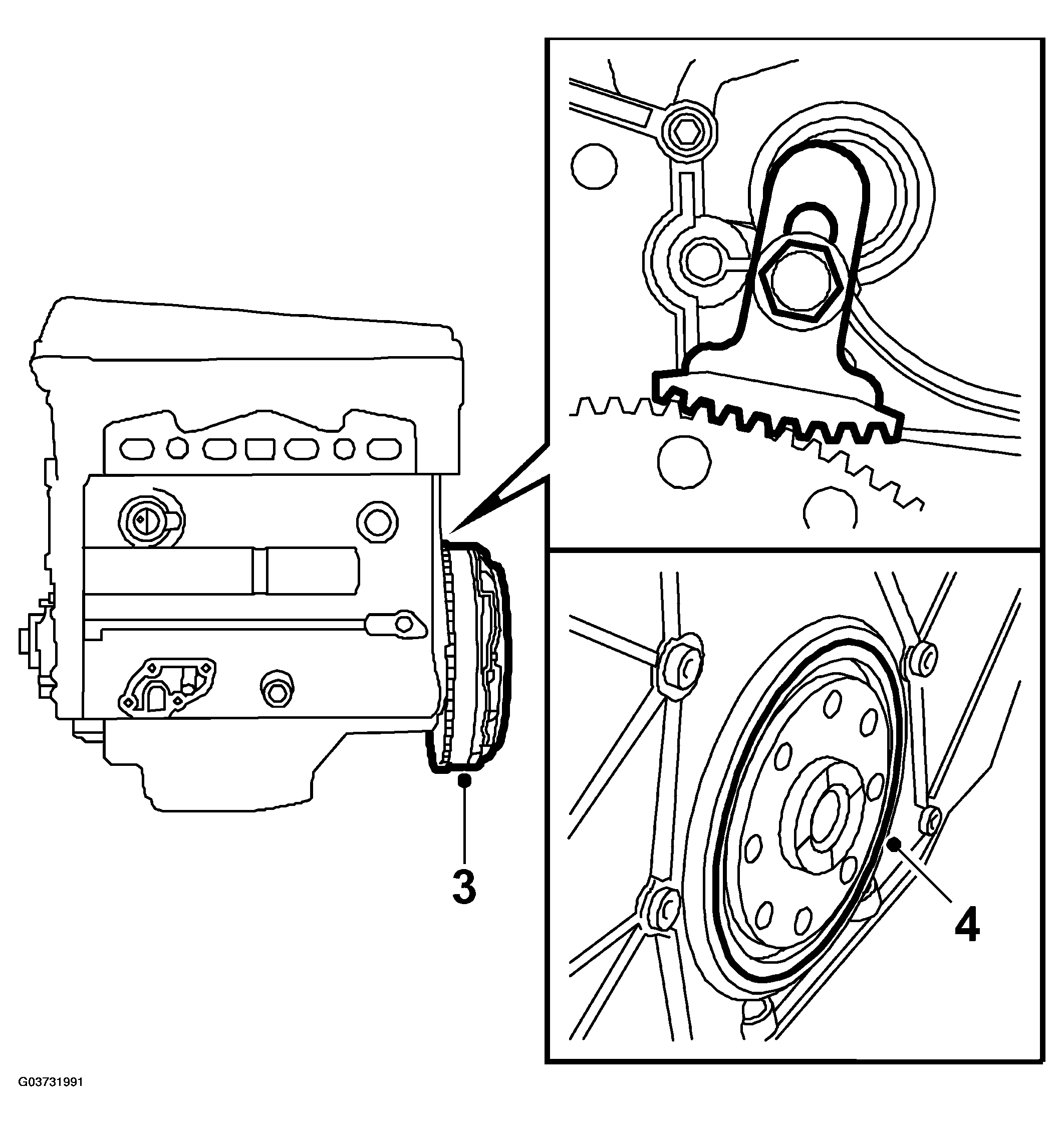

Fig 1: Illustration For Steps 3-4
G03731991Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. (man.) Remove the gearbox, see TO REMOVE  under Manual gearbox.

    (aut.) Remove the gearbox, see AUTOMATIC TRANSMISSION ASSEMBLY .

  2. Remove the clutch and pressure plate, see CLUTCH ASSEMBLY .
  3. Remove the flywheel or driven plate.
  4. Use a screwdriver to pry out the old seal, taking care not to damage the sealing surface.
