Crimp connection J42, instrument harness

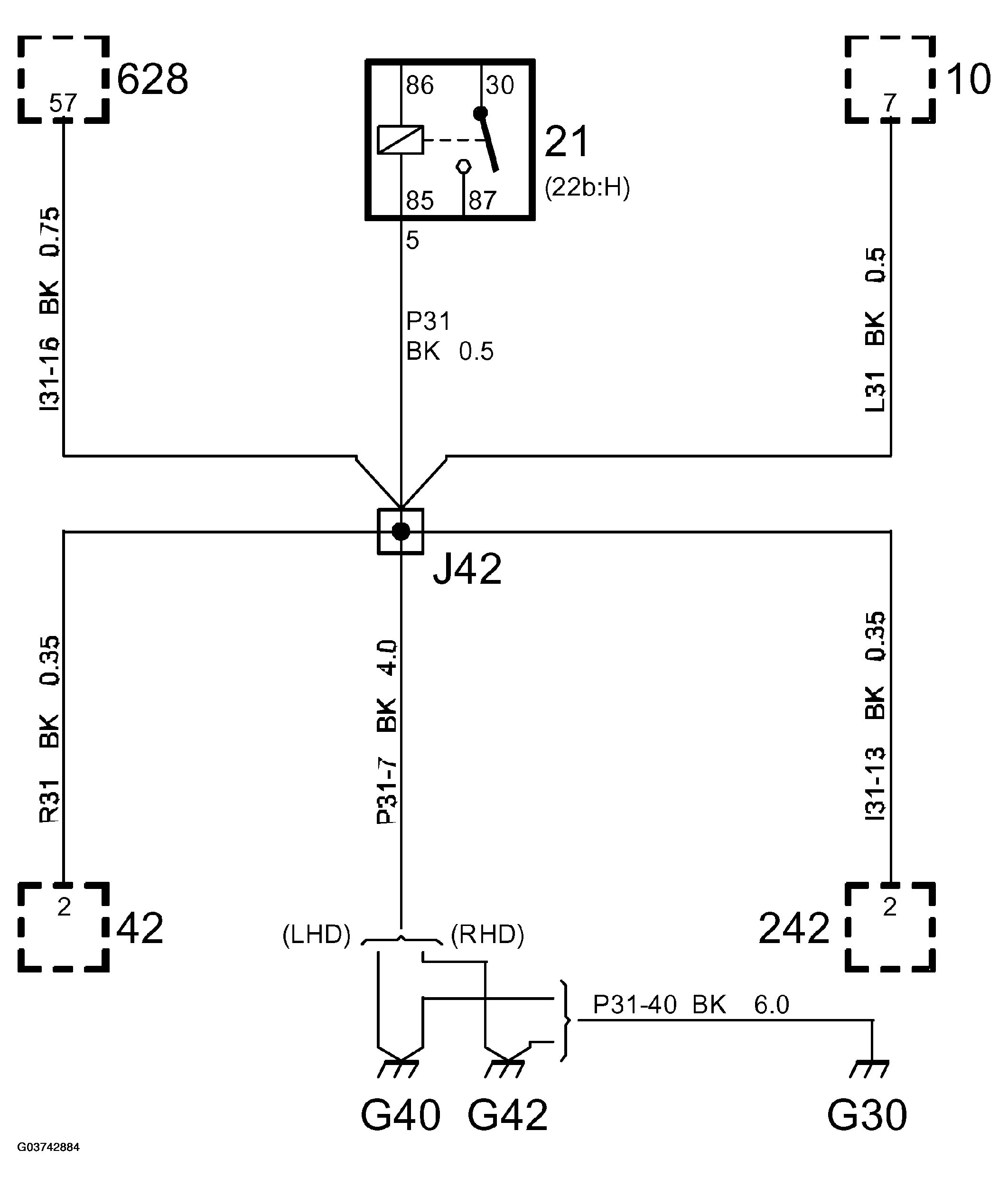

Fig 1: Instrument Harness Crimp Connection J42 - Circuit Diagram

G03742884

Courtesy of SAAB-SCANIA OF AMERICA, INC.
