Crimp connection J42, instrument harness

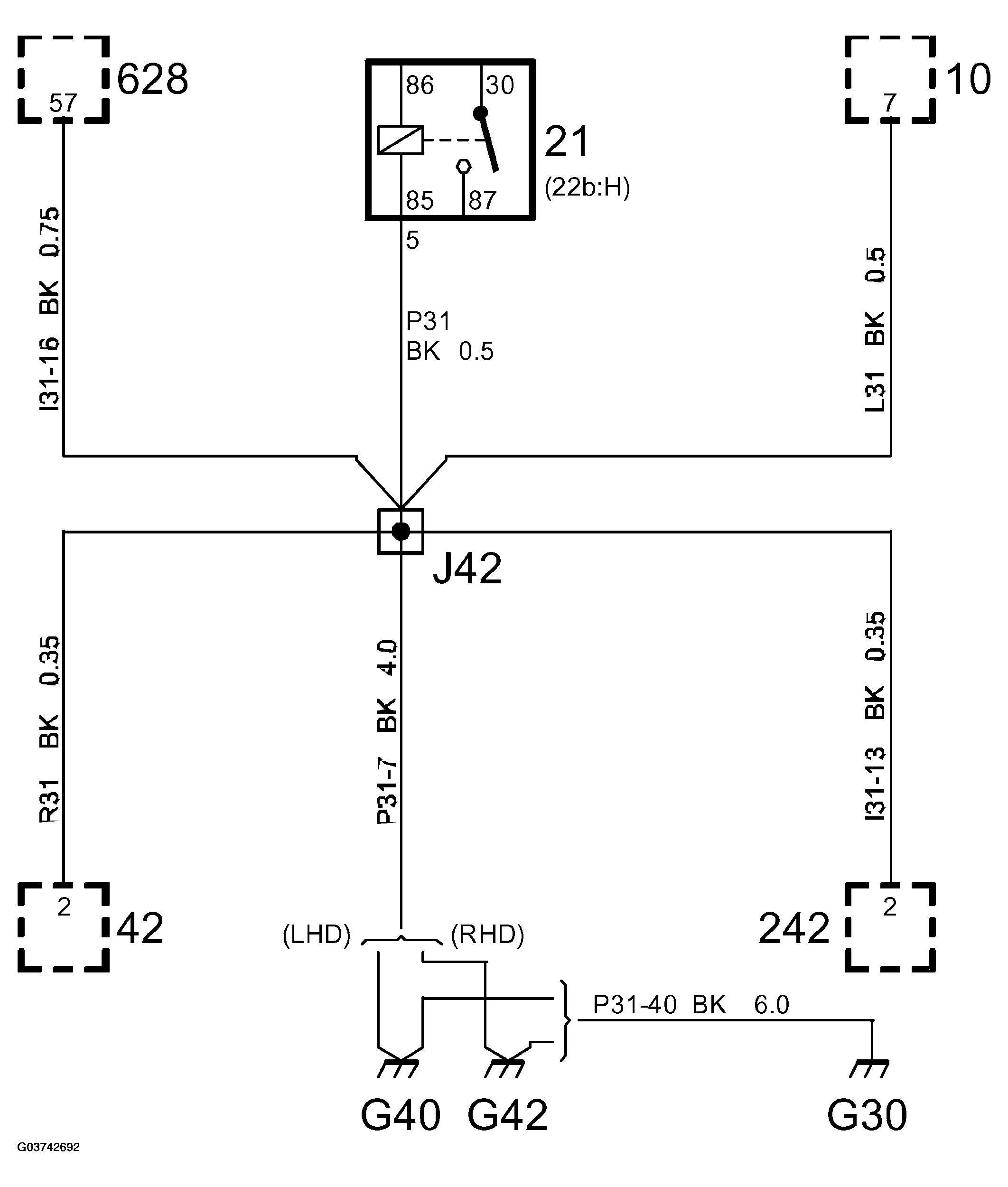

Fig 1: Crimp Connection J42 Circuit Diagram

G03742692

Courtesy of SAAB-SCANIA OF AMERICA, INC.
