Adjusting Temperature gauge Night Panel

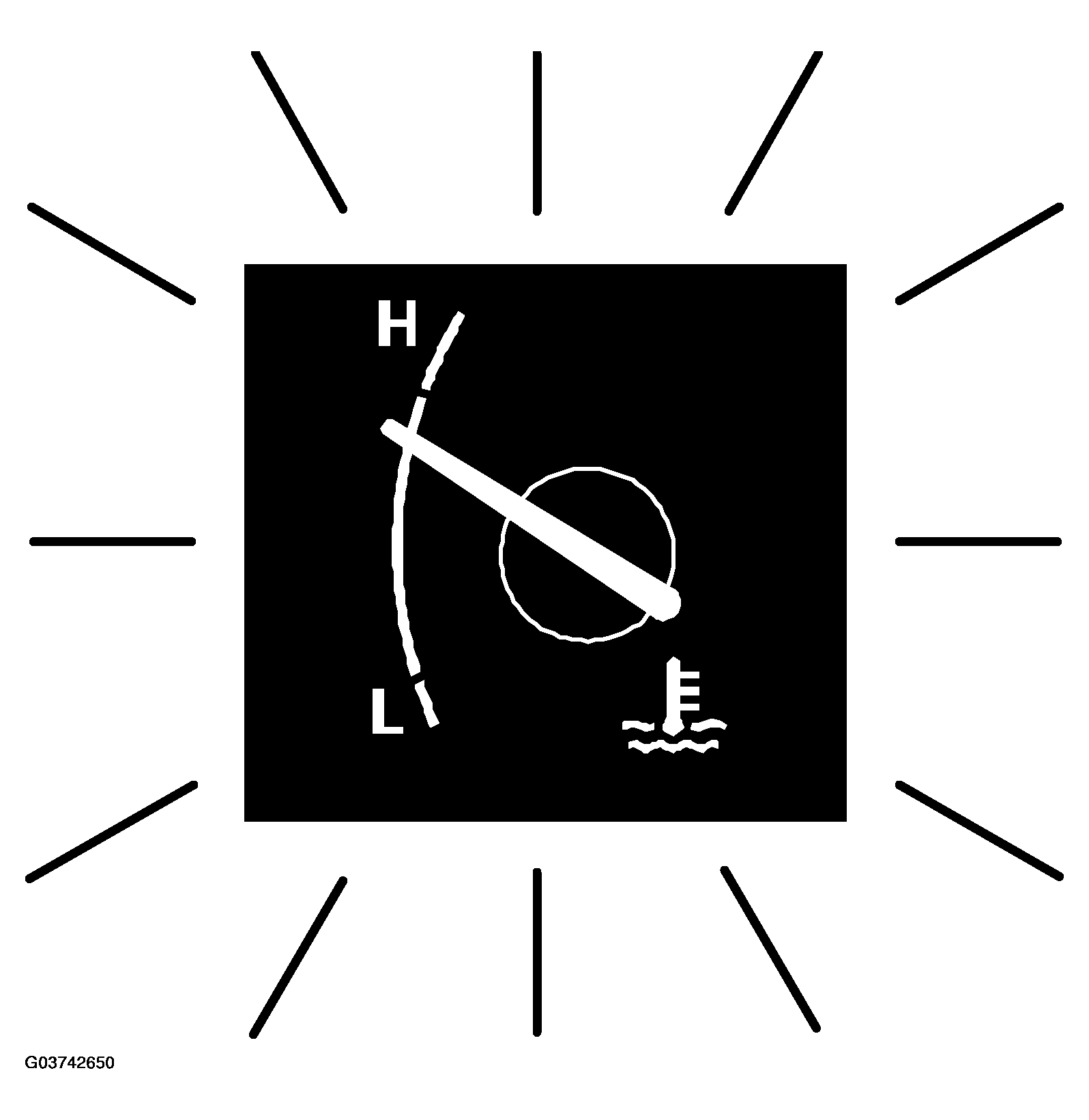

The Night Panel function in SID turns off the temperature gauge lighting under normal conditions. If the engine temperature exceeds a given level, then the engine temperature gauge lighting will light up. This command enables alteration of the temperature at which the main instrument unit lights up the engine temperature gauge when Night Panel is active. The works setting is 120°C for a 4- cylinder engine and 114°C for a 6-cylinder engine.
Adjustment can be checked afterwards by activating Night Panel with the diagnostic tool.
