Alarm (time alarm)

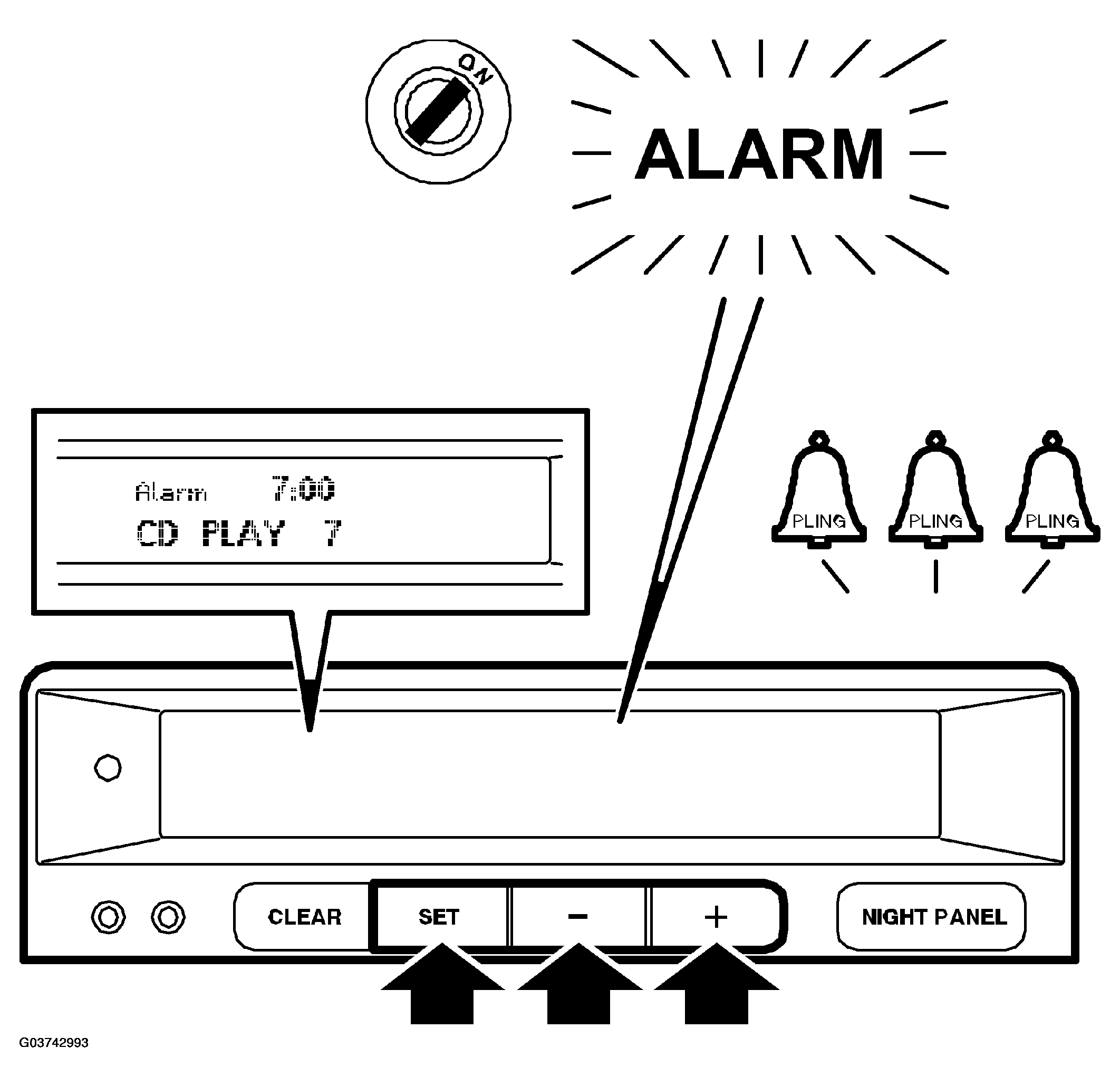

Fig 1: Identifying SID 2 Trip Computer Functions Alarm Time Communication Flow Line

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The alarm function is performed on information from:

• Current time (clock).
• Programmed alarm time.

When the alarm goes off (activated), the "Alarm" flashes on the SID unit display. An acoustic signal is heard at the same time.

The alarm sounds and flashes for 1 minute or until turned off by one of the SID unit buttons.
