Fuel "Diameter" (average fuel consumption)

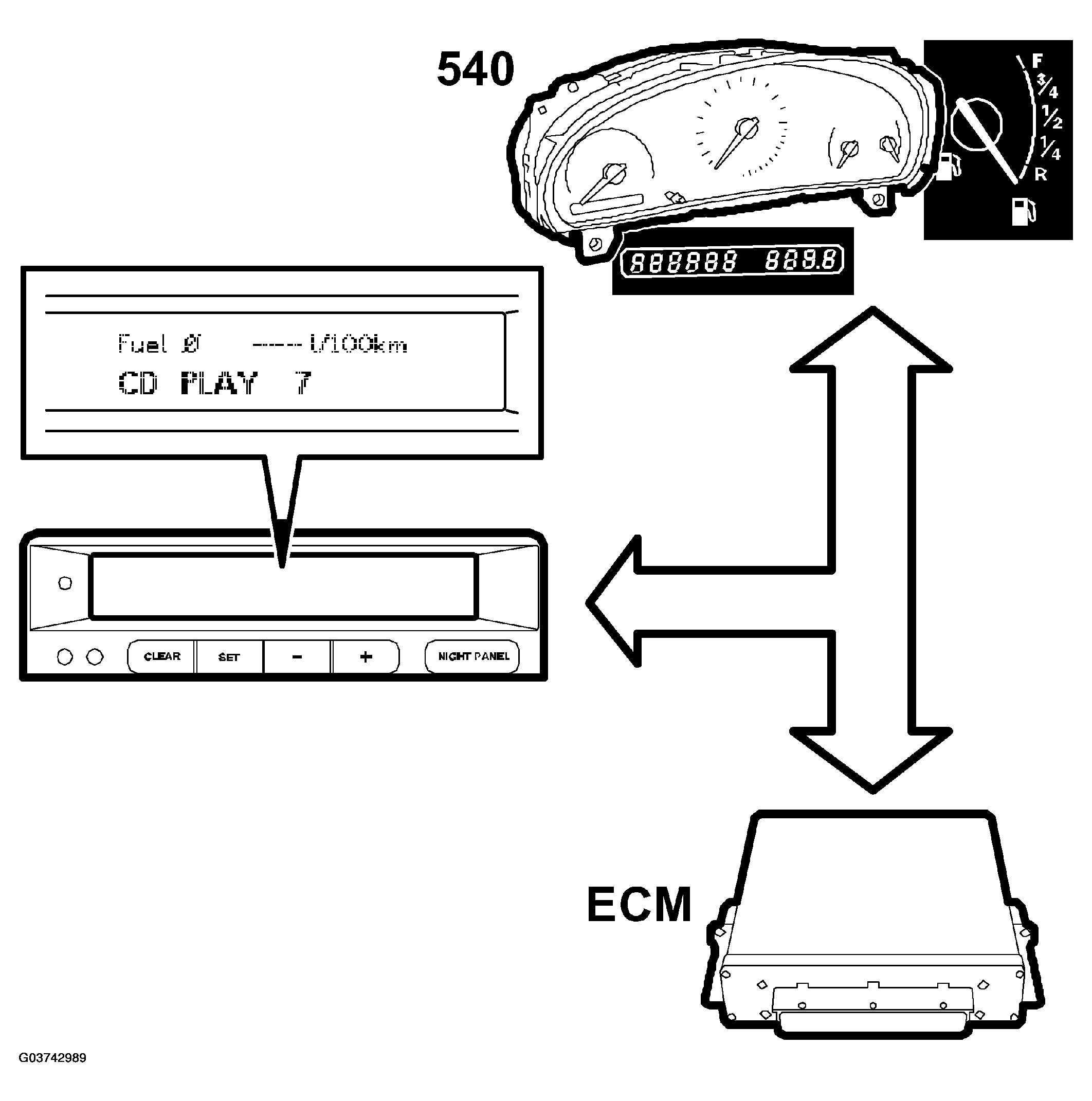

The average fuel consumption is calculated using the following information:
- Fuel consumed since start, unit ml (bus information from engine control module).
- Odometer reading, unit km, miles (bus information from MIU).
The display range is 0 to 99.9 liters/100 km, MPG Imp or MPG.

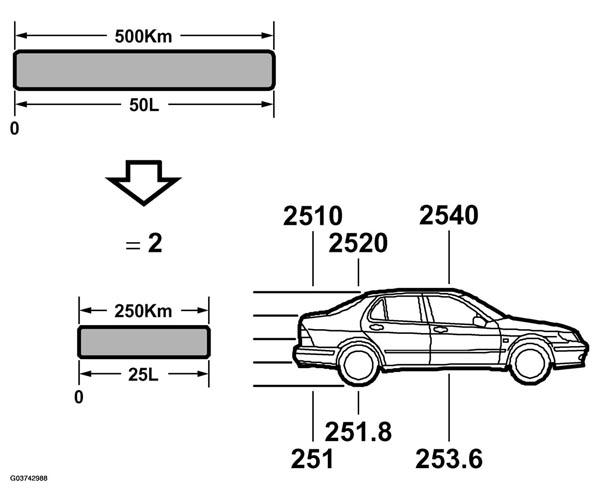

The calculated value is updated every 4 seconds from the last manual memory reset. Every 500 km, both the distance and the fuel consumption are divided by 2 so that the value is not influenced too much by "old" consumption figures.
On zeroing, both parameters are set to 0, "- - -" appears on the display. When a distance of 100 m has been covered, a new figure will be shown.
