Technical description
>>
Parking Heater
>>
Notes
Parking Heater: Notes

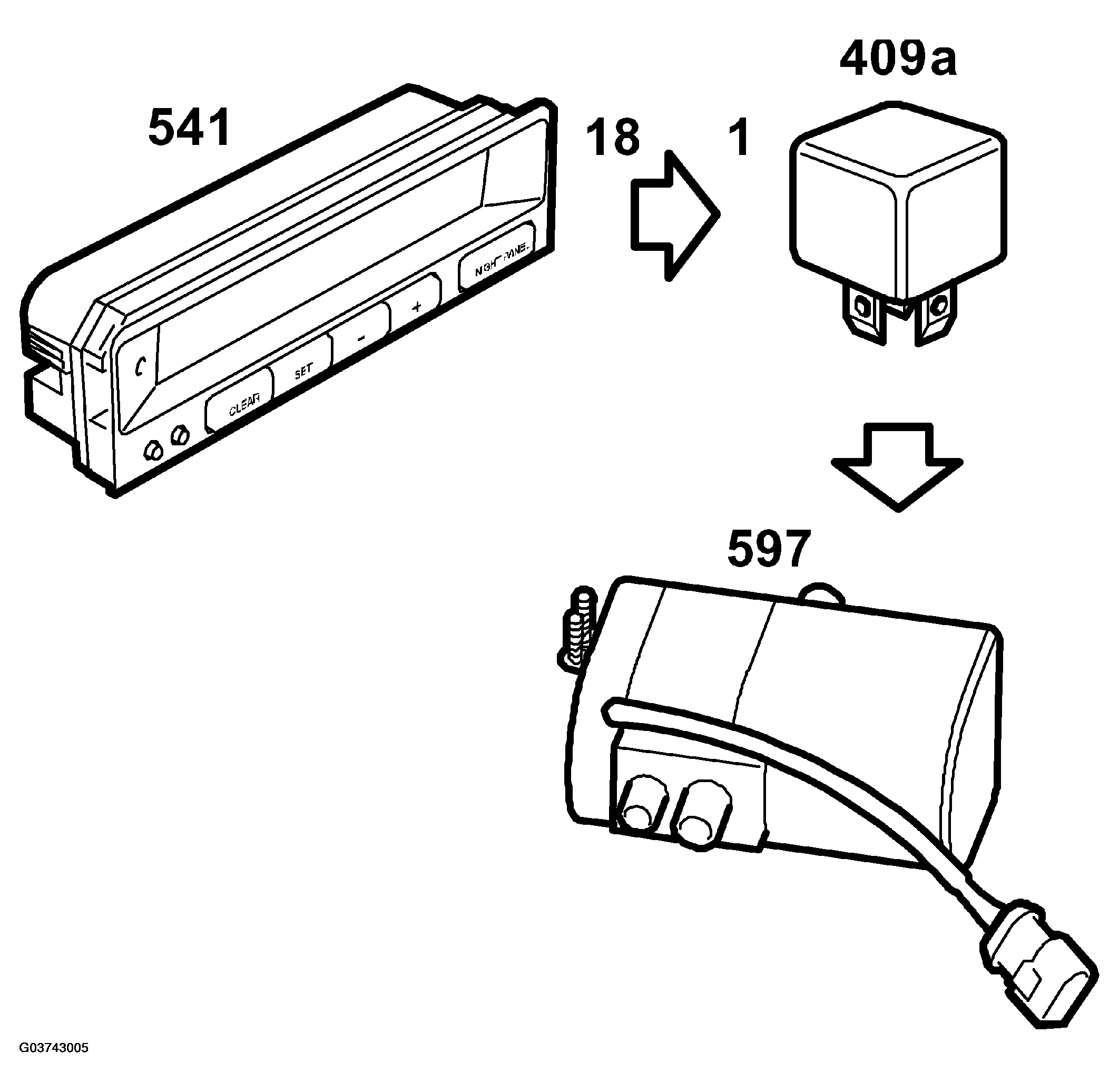

Fig 1: Identifying Parking Heater Components
Courtesy of SAAB-SCANIA OF AMERICA, INC.

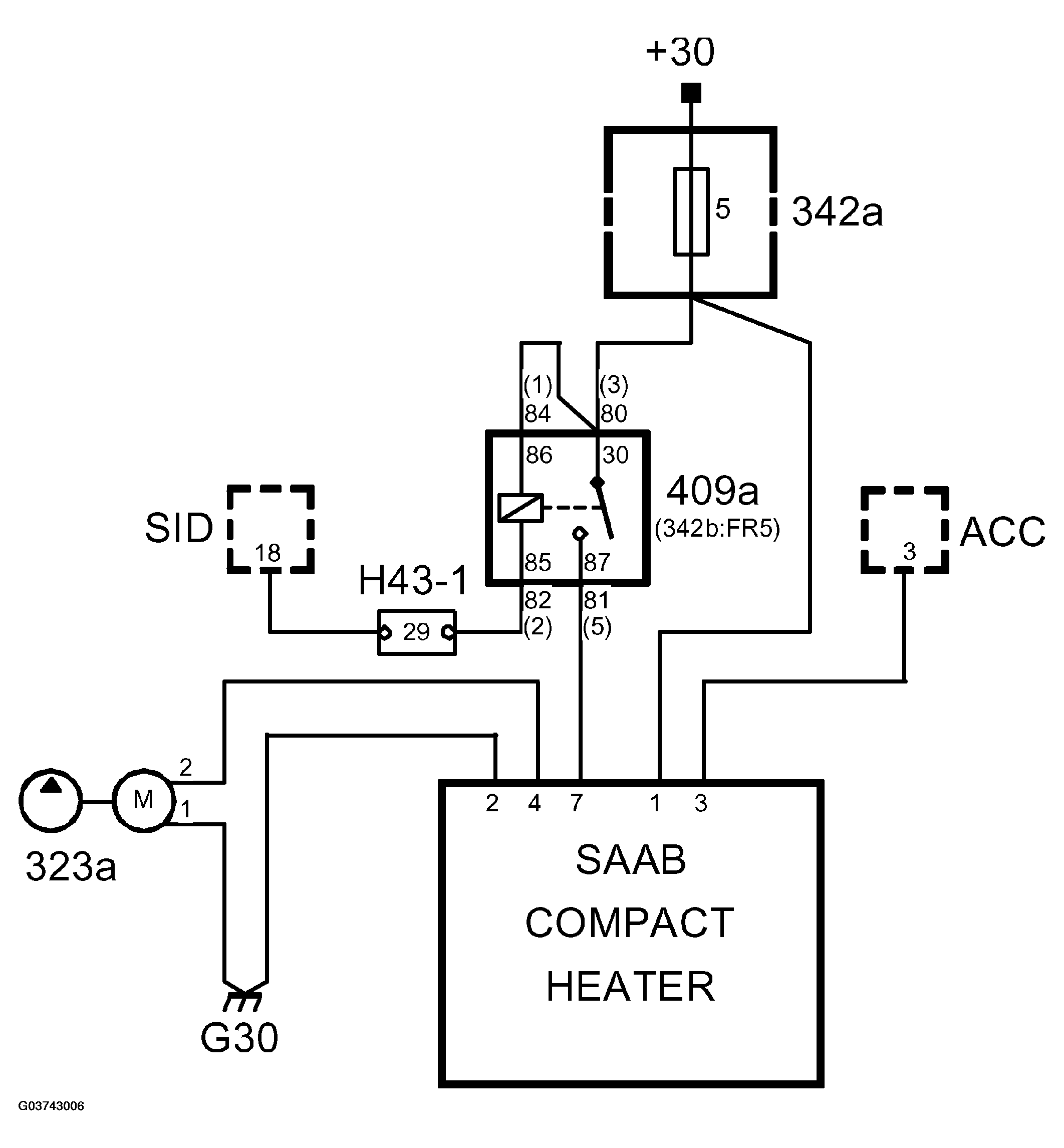

Fig 2: Parking Heater - Circuit Diagram
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
