Main components

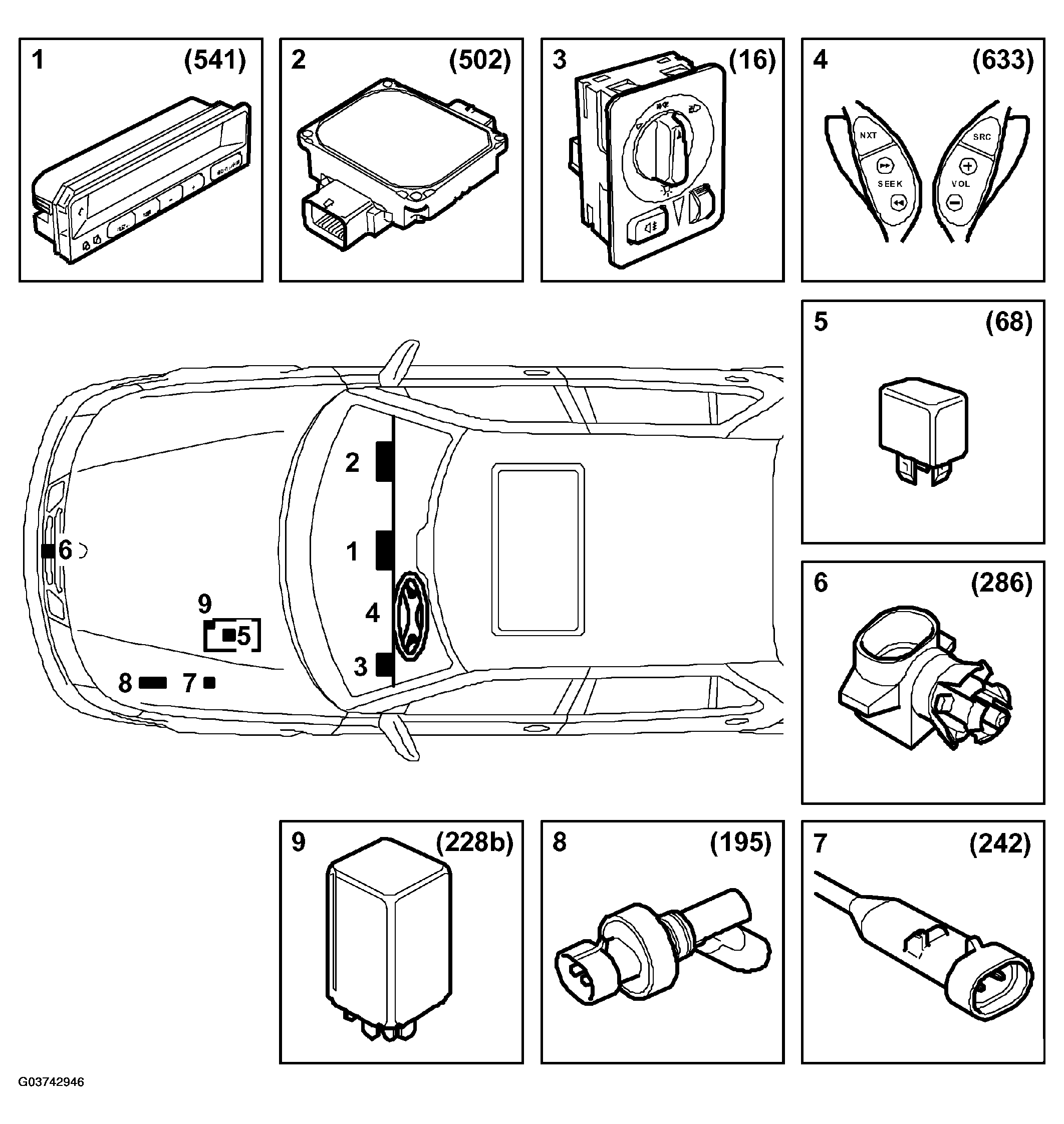

Fig 1: Identifying Main Components Of SID System
G03742946Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. SID, (541)
  2. TCM (502)
  3. Rheostat (16)
  4. Steering wheel controls (633)
  5. Horn relay (68)
  6. Outside temperature sensor (286)
  7. Coolant level sensor (242)
  8. Washer fluid level sensor (195)
  9. Filament monitor, front (228B)
