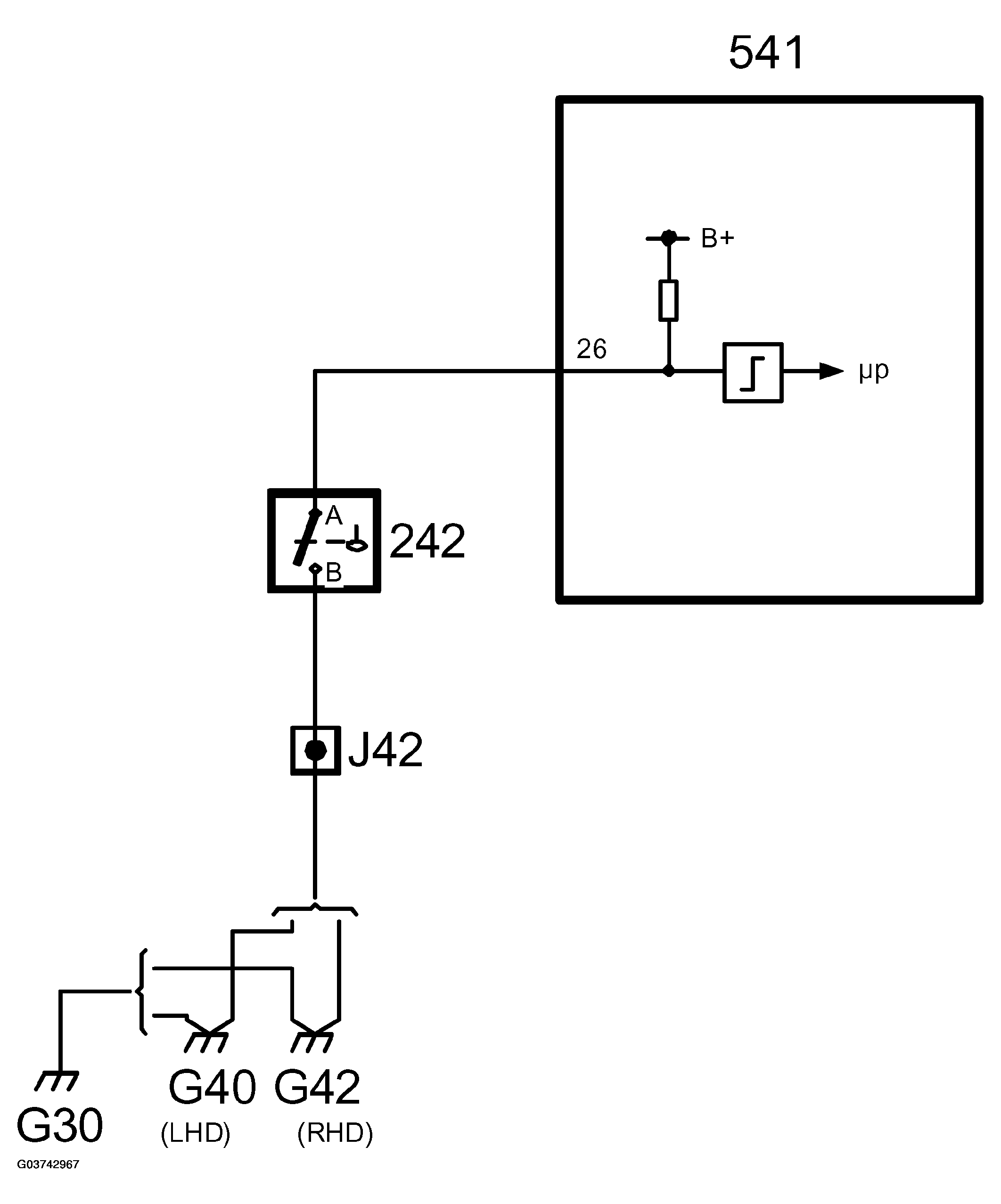

Coolant level sensor: Diagnosis
If there is a break in the coolant level sensor circuit "COOLANT LEVEL LOW. REFILL ." is displayed despite the coolant level being correct.
If a short-circuit to ground occurs, the CHECK message will not be shown even if the coolant level is low.
The SID will not generate a diagnostic trouble code.
