Control module outputs, bus

Cars with petrol engine

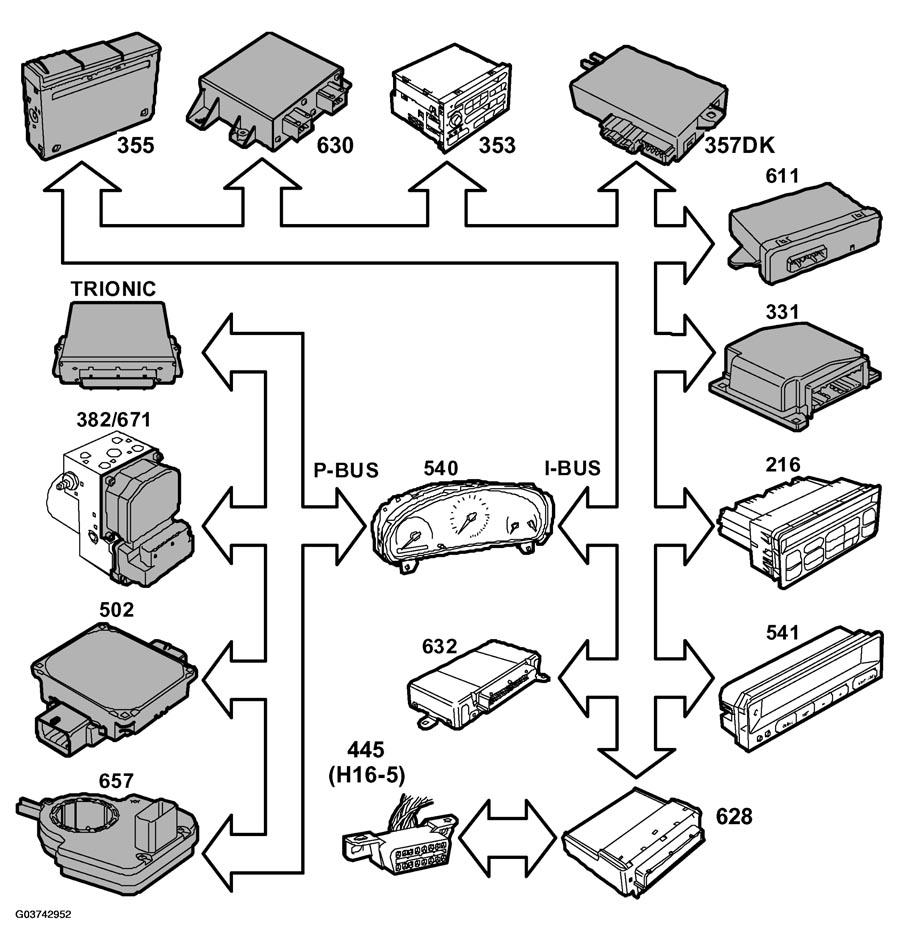

Fig 1: Identifying Bus Control Module Outputs (Cars With Petrol Engine)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Cars with V6 diesel engine.

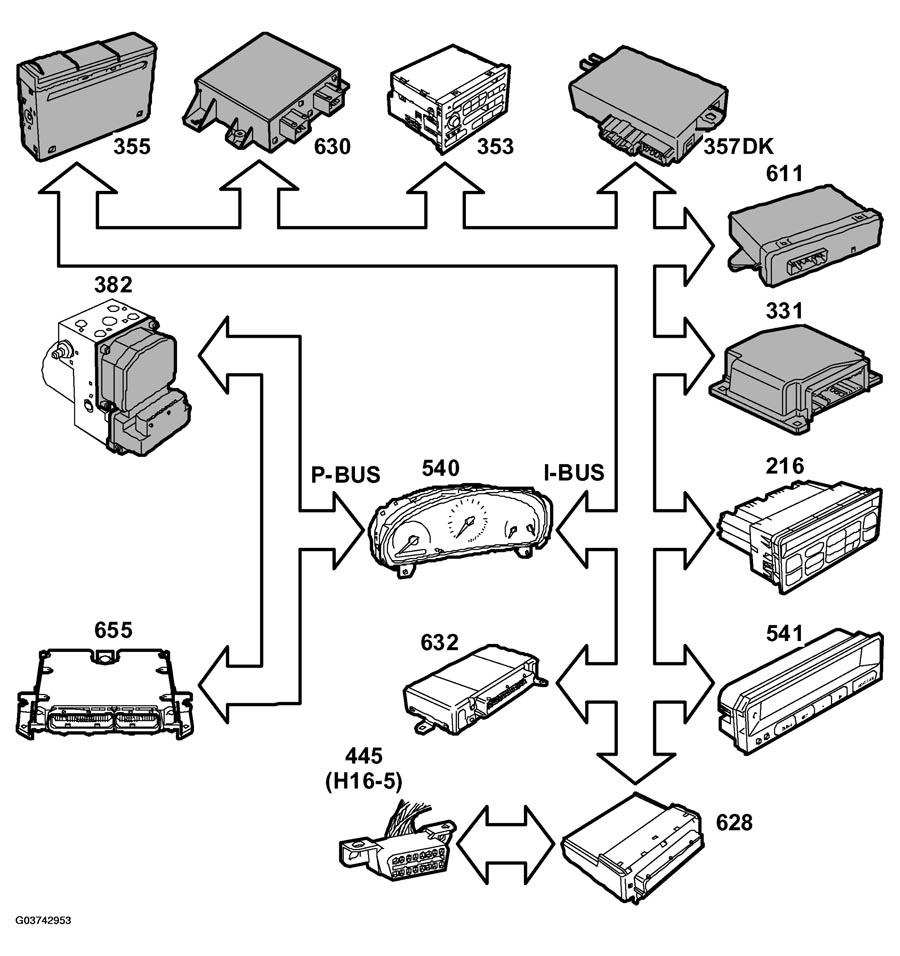

Fig 2: Identifying Bus Control Module Outputs (Cars With V6 Diesel Engine)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Cars with 4-cyl diesel engine.

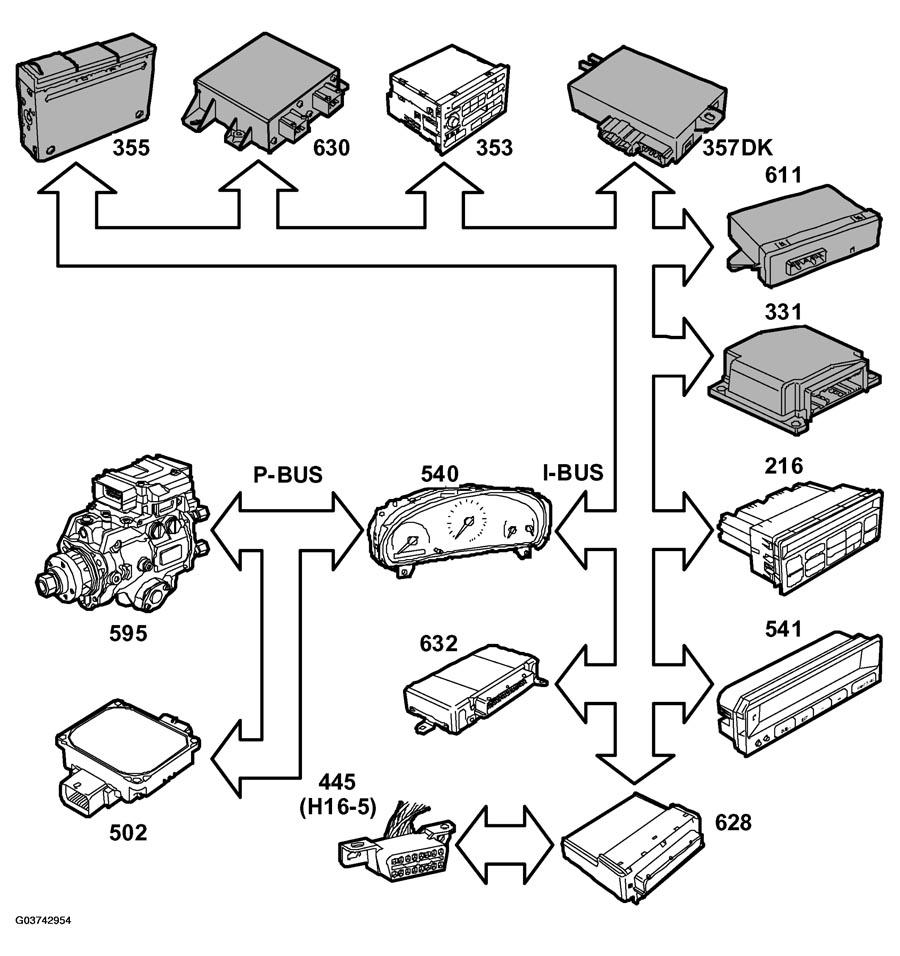

Fig 3: Identifying Bus Control Module Outputs (Cars With 4-Cyl Diesel Engine)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

• Info Disp lamp (on/off) is used by MIU (540) CHECK MESSAGES
• Unit (°C/°F) is used by ACC (216) UNITS AND LANGUAGES
• Language (Swedish, English, German, French, Italian, Spanish) is used by ACC (216) UNITS AND LANGUAGES
• Steering wheel control is used by Audio (353) STEERING WHEEL CONTROLS
• Rheostat level (%) is used by Audio (353), ACC (216), DICE (632), MIU (540) RHEOSTAT
• Rheostat Night Panel (%) is used by Audio (353), ACC (216), DICE (632), MIU (540) RHEOSTAT
• Clear (on/off) used by SPA (630) BUS MESSAGE, INFORMATION DISPLAY (SID)
• Night Panel (on/off) is used by Audio (353), ACC (216), DICE (628), MIU (540) NIGHT PANEL
• Display lighting (%) is used by Audio (353), ACC (216), DICE (628), MIU (540) DISPLAY LIGHTING LEVEL
• Cabin light intensity (Lux) is used by MIU (540) INTERIOR LIGHT SENSOR
• Time Engine Off (Min) is used by ACC (216) "ENGINE OFF" TIME
• Exterior temperature (°C/°F) used by ACC (216), TWICE (632), DICE (628), PSG16 (595) AMBIENT TEMPERATURE SENSOR
• Washer fluid level low (ON/OFF) is used by DICE (628) WASHER FLUID LEVEL SENSOR
• Glass breakage sensor (ON/OFF) used by TWICE (632).
• Diagnostics communication BUS MESSAGE, INFORMATION DISPLAY (SID)
