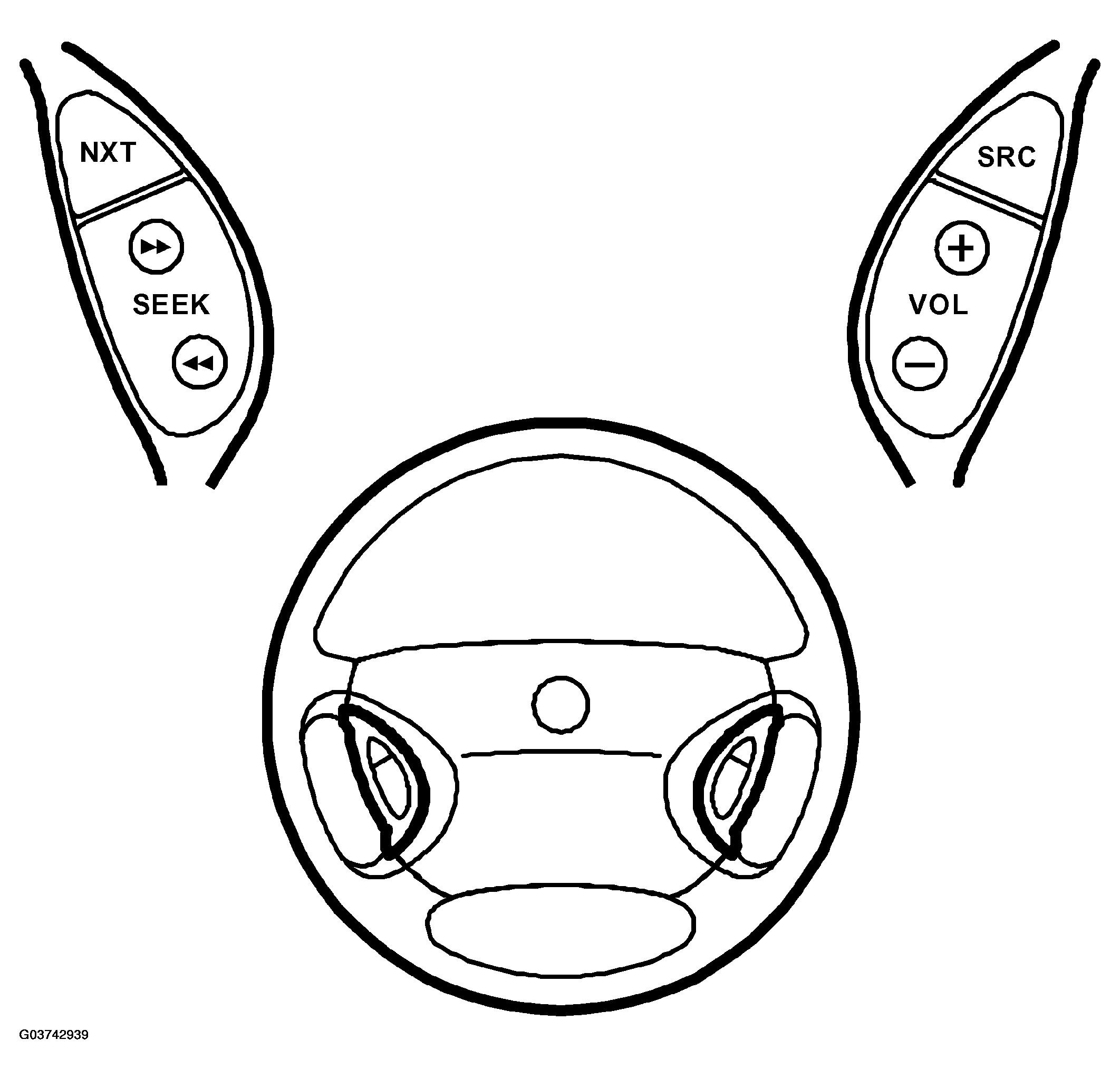

Steering wheel controls (switches)
Courtesy of SAAB-SCANIA OF AMERICA, INC. STEERING WHEEL CONTROLS (SWITCHES) TECHNICAL DATA
| Power supply |
V |
5 |
| Horn |
ohm |
0 |
| VOL - |
ohm |
160 |
| VOL + |
ohm |
242 |
| SRC |
ohm |
347 |
| SEEK |
ohm |
494 |
| << SEEK |
ohm |
709 |
| NXT |
ohm |
1041 |
| Normal |
ohm |
2511 |
Tolerance 1%
