Technical data: Rheostat

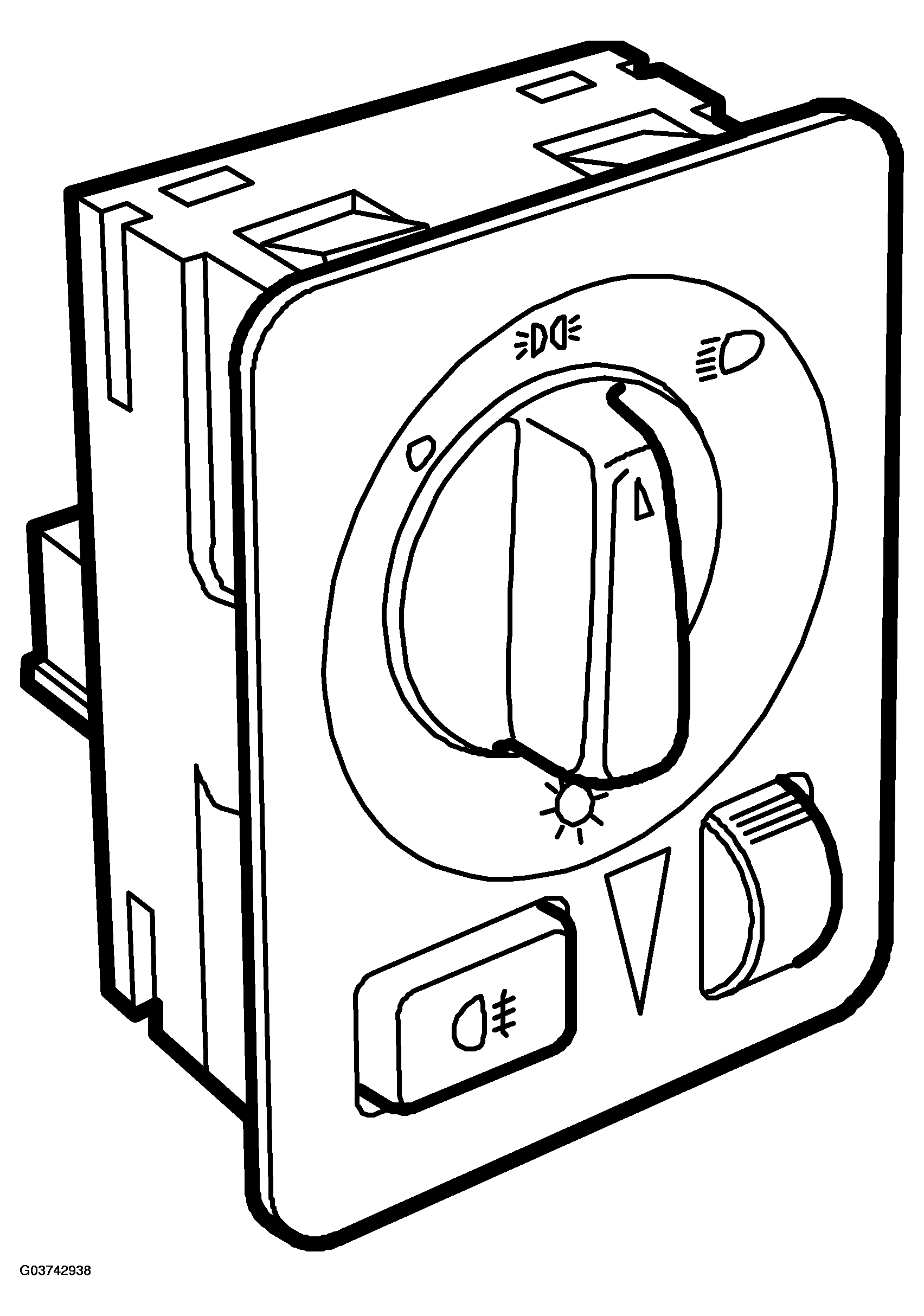

Fig 1: Identifying Rheostat
G03742938Courtesy of SAAB-SCANIA OF AMERICA, INC.
RHEOSTAT TECHNICAL DATA

Location   Integrated into the main lights switch.
Power supply V 5 (from SID)
Resistance
(Rheostat potentiometer)
min, ohm <5.5
max, ohm 1000 +/- 25%
